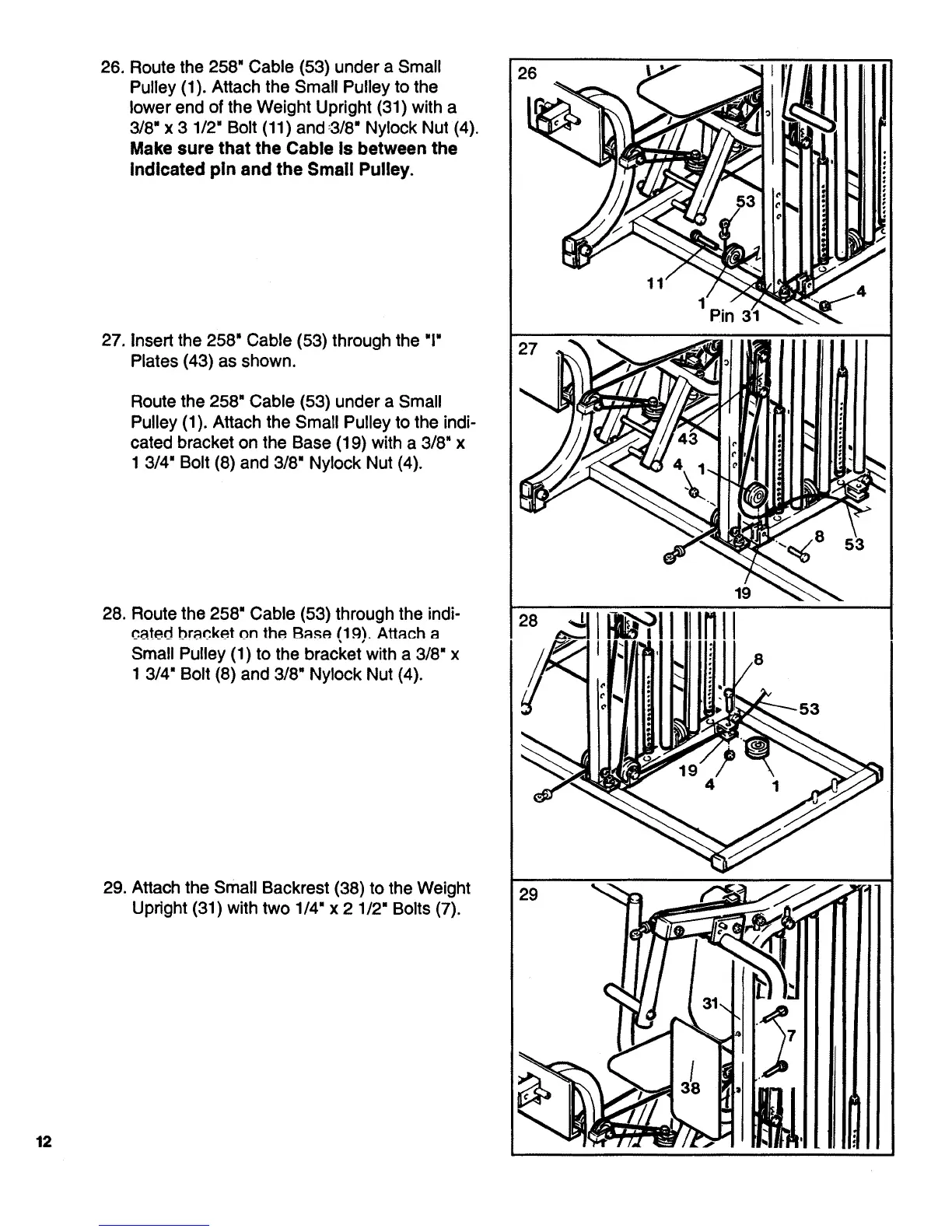

26. Route the 258" Cable (53) under a Small
Pulley (1). Attach the Small Pulley to the
lower end of the Weight Upright (31) with a
3/8" x 3 1/2" Bolt (11) and3/8" Nylock Nut (4).
Make sure that the Cable Is between the
Indicated pin and the Small Pulley.
27. Insert the 258" Cable (53) through the "1"
Plates (43) as shown.
Route the 258" Cable (53) under a Small
Pulley (1). Attach the Small Pulley to the indi-
cated bracket on the Base (19) with a 3/8" x
1 3/4" Bolt (8) and 3/8" Nylock Nut (4).
28. Route the 258" Cable (53) through the indi-
r.ntnd hrnr.k_.t nn the. Rn.qA (19). Attach a
Small Pulley (1) to the bracket with a 3/8" x
1 3/4" Bolt (8) and 3/8" Nylock Nut (4).
29. Attach the Small Backrest (38) to the Weight
Upright (31) with two 1/4" x 2 1/2" Bolts (7).
