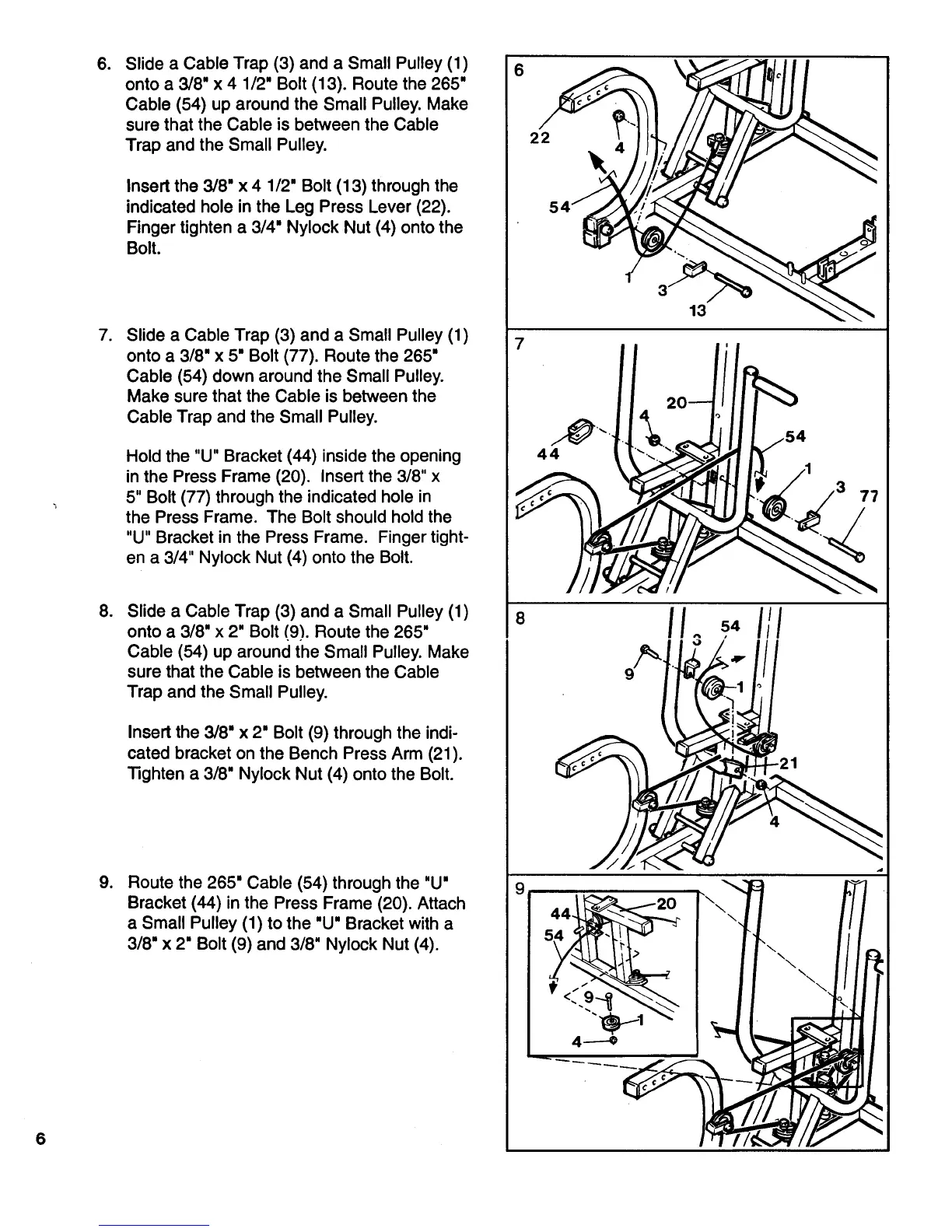

Slide a Cable Trap (3) and a Small Pulley (1)
onto a 3/8" x 4 1/2" Bolt (13). Route the 265"
Cable (54) up around the Small Pulley. Make
sure that the Cable is between the Cable
Trap and the Small Pulley.
Insert the 3/8" x 4 1/2" Bolt (13) through the
indicated hole in the Leg Press Lever (22).
Finger tighten a 3/4" Nylock Nut (4) onto the
Bolt.
o
Slide a Cable Trap (3) and a Small Pulley (1)
onto a 3/8" x 5" Bolt (77). Route the 265"
Cable (54) down around the Small Pulley.
Make sure that the Cable is between the
Cable Trap and the Small Pulley.
Hold the "U" Bracket (44) inside the opening
in the Press Frame (20). Insert the 3/8" x
5" Bolt (77) through the indicated hole in
the Press Frame. The Bolt should hold the
"U" Bracket in the Press Frame. Finger tight-
en a 3/4" Nylock Nut (4) onto the Bolt.
.
Slide a Cable Trap (3) and a Small Pulley (1)
onto a 3/8" x 2" Bolt f9_. Route the 265"
Cable (54) up around the Small Pulley. Make
sure that the Cable is between the Cable
Trap and the Small Pulley.
Insert the 3/8" x 2" Bolt (9) through the indi-
cated bracket on the Bench Press Arm (21).
Tighten a 3/8" Nylock Nut (4) onto the Bolt.
°
Route the 265" Cable (54) through the "U"
Bracket (44) in the Press Frame (20). Attach
a Small Pulley (1) to the "U" Bracket with a
3/8" x 2" Bolt (9) and 3/8" Nylock Nut (4).
7
8
9
22
44
13
II. s, Ill
\
\
\
\
\\
77
