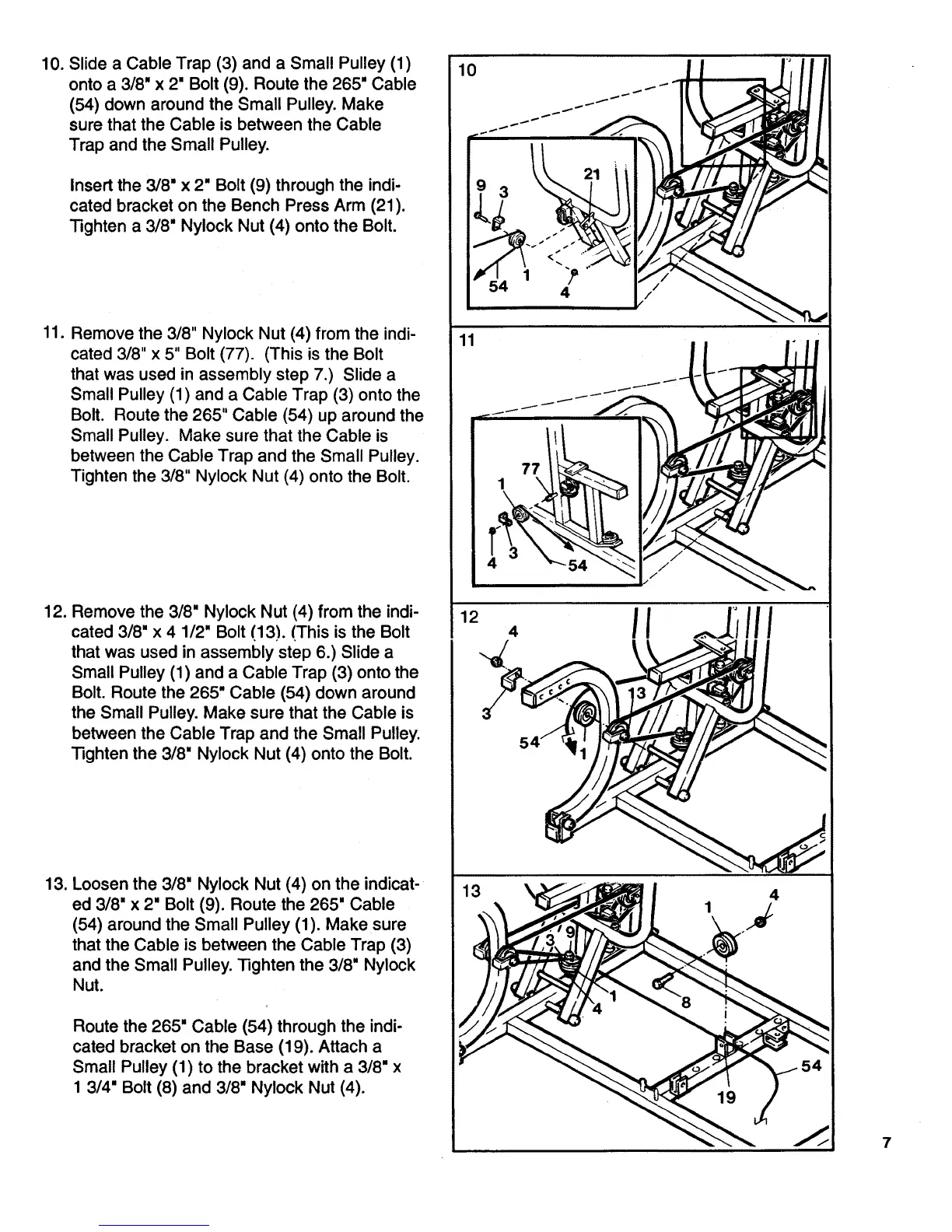

10. Slide a Cable Trap (3) and a Small Pulley (1)
onto a 3/8" x 2" Bolt (9). Route the 265" Cable
(54) down around the Small Pulley. Make
sure that the Cable is between the Cable
Trap and the Small Pulley.
Insert the 3/8" x 2" Bolt (9) through the indi-
cated bracket on the Bench Press Arm (21).
Tighten a 3/8" Nylock Nut (4) onto the Bolt.
11. Remove the 3/8" Nylock Nut (4) from the indi-
cated 3/8" x 5" Bolt (77). (This is the Bolt
that was used in assembly step 7.) Slide a
Small Pulley (1) and a Cable Trap (3) onto the
Bolt. Route the 265" Cable (54) up around the
Small Pulley. Make sure that the Cable is
between the Cable Trap and the Small Pulley.
Tighten the 3/8" Nylock Nut (4) onto the Bolt.
12. Remove the 3/8" Nylock Nut (4) from the indi-
cated 3/8" x 4 1/2" Bolt (13_. (This is the Bolt
that was used in assembly step 6.) Slide a
Small Pulley (1) and a Cable Trap (3) onto the
Bolt. Route the 265" Cable (54) down around
the Small Pulley. Make sure that the Cable is
between the Cable Trap and the Small Pulley.
Tighten the 3/8" Nylock Nut (4) onto the Bolt.
13. Loosen the 3/8" Nylock Nut (4) on the indicat-
ed 3/8" x 2" Bolt (9). Route the 265" Cable
(54) around the Small Pulley (1). Make sure
that the Cable is between the Cable Trap (3)
and the Small Pulley. Tighten the 3/8" Nylock
Nut.
Route the 265" Cable (54) through the indi-
cated bracket on the Base (19). Attach a
Small Pulley (1) to the bracket with a 3/8" x
1 3/4" Bolt (8) and 3/8" Nylock Nut (4).
10
11
12
13
77
1 \
4
i/ll
54
To Next Page
