8

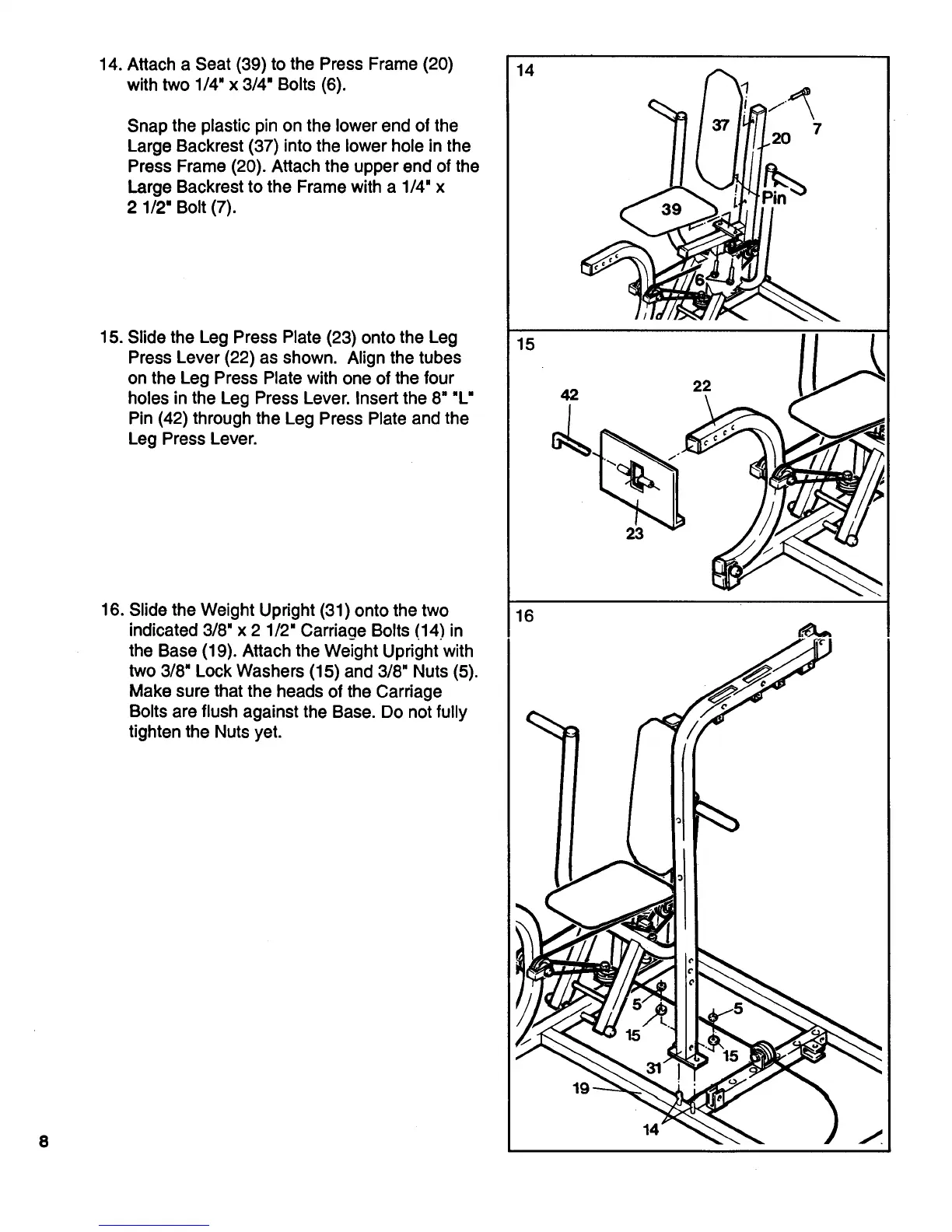

14. Attach a Seat (39) to the Press Frame (20)
with two 1/4" x 3/4" Bolts (6).
Snap the plastic pin on the lower end of the
Large Backrest (37) into the lower hole in the
Press Frame (20). Attach the upper end of the
Large Backrest to the Frame with a 1/4" x
2 1/2" Bolt (7).
15. Slide the Leg Press Plate (23) onto the Leg
Press Lever (22) as shown. Align the tubes
on the Leg Press Plate with one of the four
holes in the Leg Press Lever. Insert the 8" "L"
Pin (42) through the Leg Press Plate and the
Leg Press Lever.
16. Slide the Weight Upright (31) onto the two
indicated 3/8' x 2 1/2" Carriage Bolts (14) in
the Base (19). Attach the Weight Upright with
two 3/8" Lock Washers (15) and 3/8" Nuts (5).
Make sure that the heads of the Carriage
Bolts are flush against the Base. Do not fully
tighten the Nuts yet.
14
15
16
7
20
42
22
\
23
19
