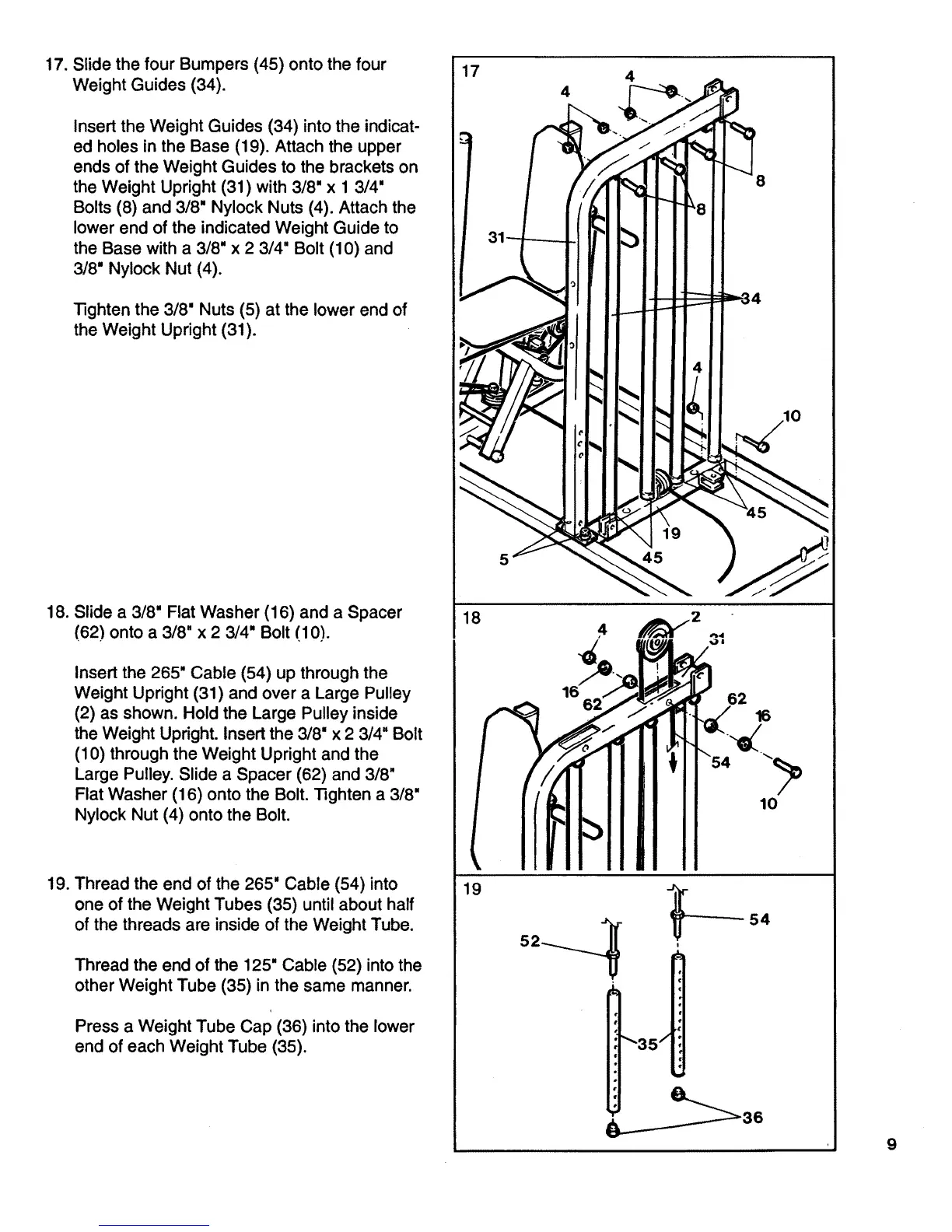

17. Slide the four Bumpers (45) onto the four
Weight Guides (34).
Insert the Weight Guides (34) into the indicat-
ed holes in the Base (19). Attach the upper
ends of the Weight Guides to the brackets on
the Weight Upright (31) with 3/8" x 1 3/4"
Bolts (8) and 3/8" Nylock Nuts (4). Attach the
lower end of the indicated Weight Guide to
the Base with a 3/8" x 2 3/4" Bolt (10) and
3/8" Nylock Nut (4).
Tighten the 3/8" Nuts (5) at the lower end of
the Weight Upright (31).
18. Slide a 3/8" Flat Washer (16) and a Spacer
(62) onto a 3/8" x 2 3/4" Bolt (10_.
Insert the 265" Cable (54) up through the
Weight Upright (31) and over a Large Pulley
(2) as shown. Hold the Large Pulley inside
the Weight Upright. Insert the 3/8" x 2 3/4" Bolt
(10) through the Weight Upright and the
Large Pulley. Slide a Spacer (62) and 3/8"
Flat Washer (16) onto the Bolt. Tighten a 3/8"
Nylock Nut (4) onto the Bolt.
19. Thread the end of the 265" Cable (54) into
one of the Weight Tubes (35) until about half
of the threads are inside of the Weight Tube.
Thread the end of the 125" Cable (52) into the
other Weight Tube (35) in the same manner.
Press a Weight Tube Cap (36) into the lower
end of each Weight Tube (35).
17
18
19
4
4
62
16
54
10
9
To Next Page
