Lifetime 1533 - Page 25

25

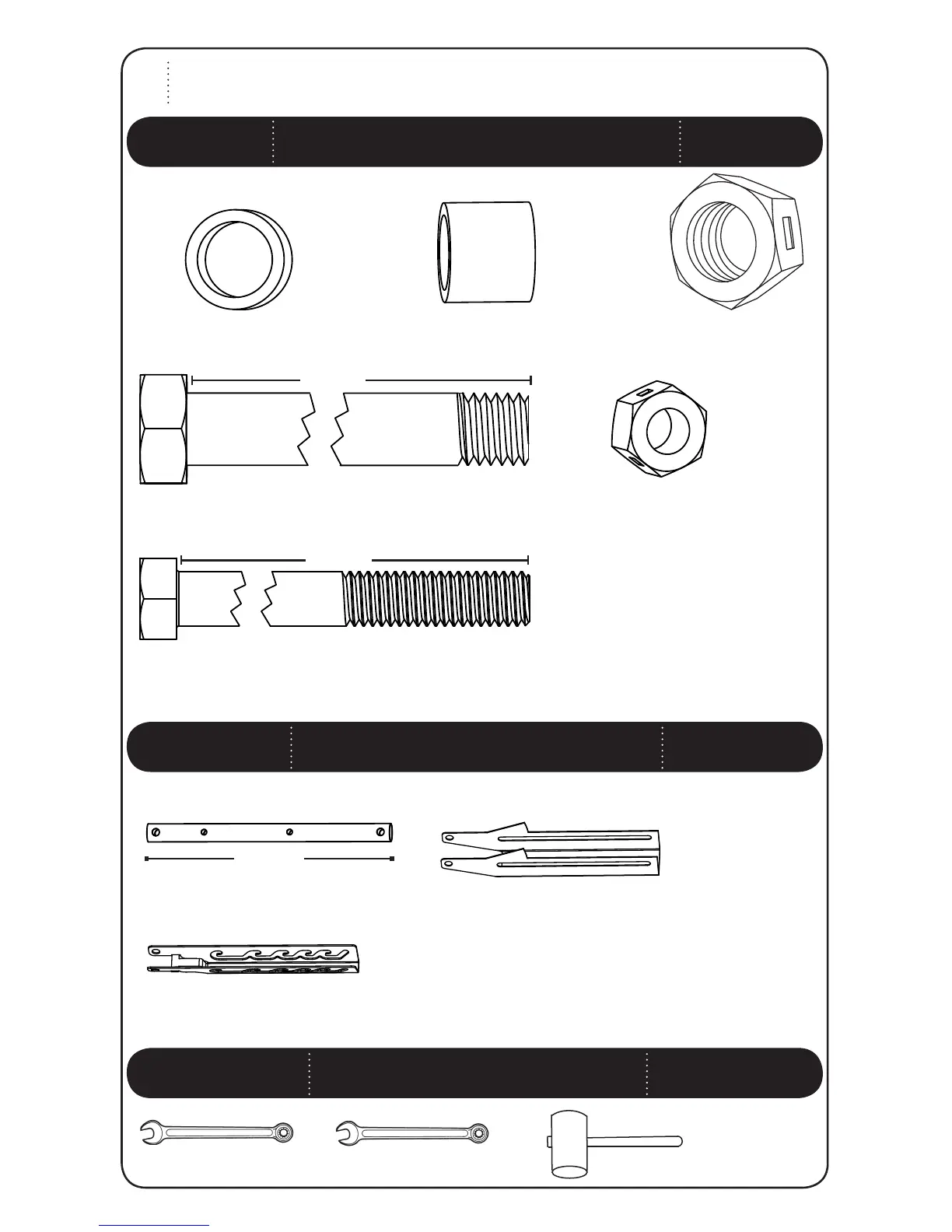

BACKBOARD TO POLE ASSEMBLY
HARDWARE REQUIRED
PARTS REQUIRED
TOOLS REQUIRED
SEC

Parts shown at 10% of Actual Size
Hardware shown at Actual Size
AAX (x4)
1/2” Centerlock Nut
ABL (x4)
.69” x .59” Black Spacer
!$' (x4)
1/2” x 6 5/8” Hex Bolt
ABP (x4)
1/2” x 3/8” Clear Poly Spacer
ABA (x1)
3/8” x 6 1/2” Hex Bolt
ABB (x1)
3/8” Centerlock Nut
6 5/8”
(Not actual length)
15 3/4”
AKC (x4)
Extension Arm
BDL (x1)
$UNK,ATCH
BDN (x1)
Outer Guard
v7RENCH(x2)
Rubber Mallet
v7RENCH(x2)
6 1/2”
(Not actual length)
