Lifetime 1533 - Page 26

26
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
v (x2)
AAX (x1)
ABL (x2)
6 5/8”
(Not actual length)
!$' (x1)

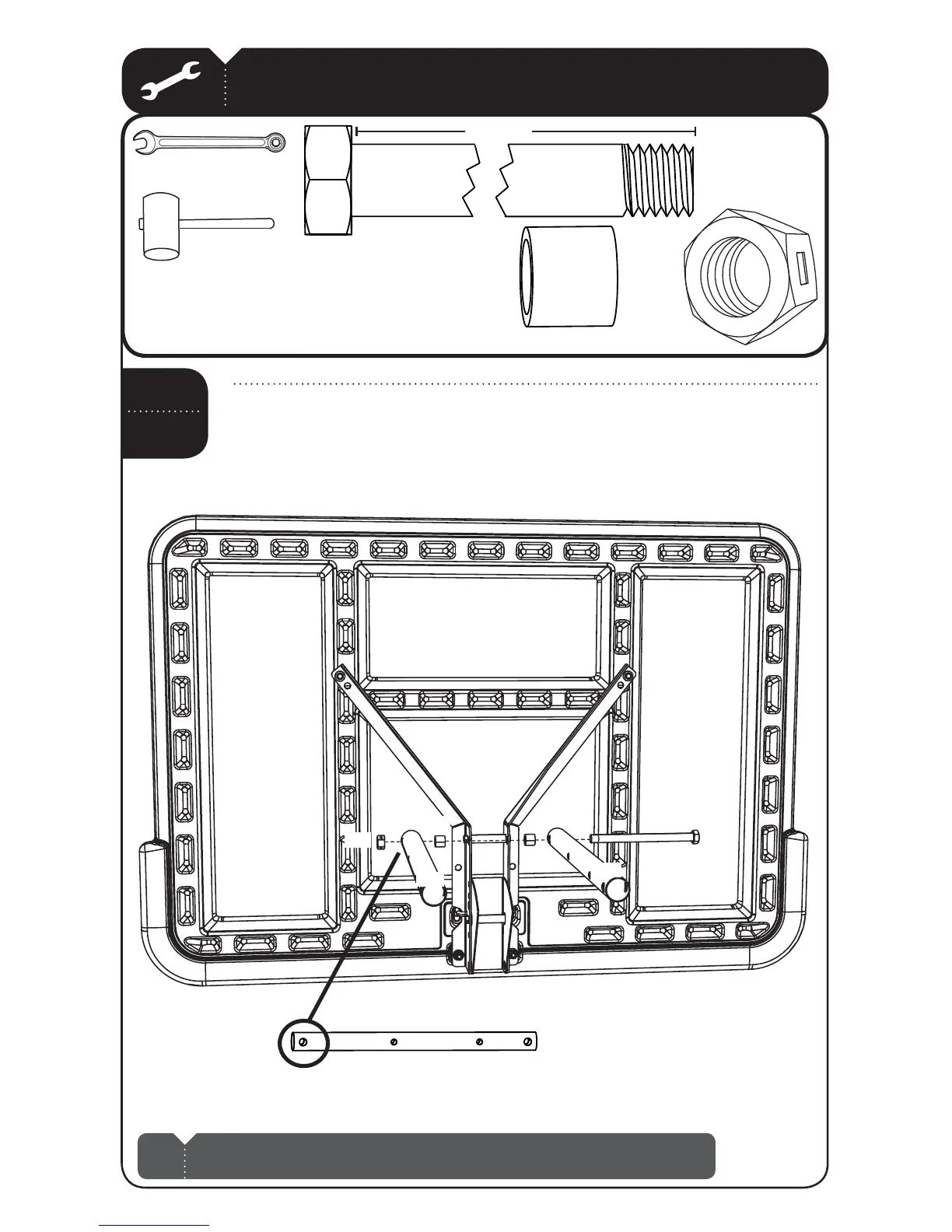

Secure two of the Extension Arms (AKC) to the Backboard Brackets
in the location shown with the hardware indicated. Make sure to
attach the end of the Extension Arms with one hole to the Backboard
Brackets as shown.
SEC

AAX
ABL
!$'
AKC
ABL
AKC
Note: Tighten the 1/2” Centerlock Nut (AAX) until it is fl ush with the end of the Bolt.
!
AKC
