Lifetime 1533 - Page 28

28
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
v (x2)
AAX (x1)
ABL (x2)
6 5/8”
(Not actual length)
!$' (x1)
SEC

AAX
ABL
!$'
AKC
ABL
AKC

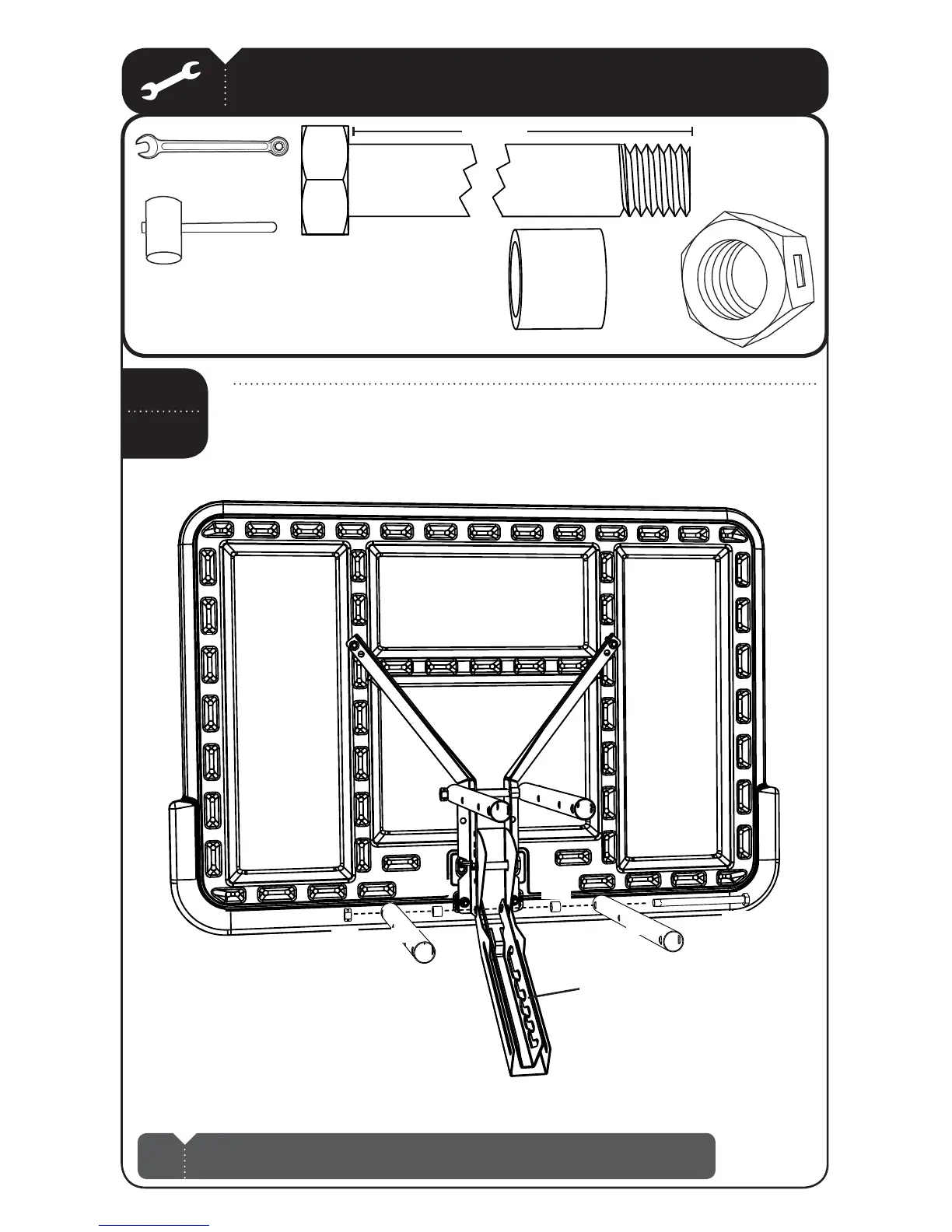

Secure the $UNK,ATCH"$,, /UTER'UARD"$.and the other two Extension
Arms (AKC) to the Backboard Brackets in the location shown with the
hardware indicated.
BDN
BDL
Note: Tighten the 1/2” Centerlock Nut (AAX) until it is fl ush with the end of the Bolt.
!
