Lifetime 60058 - Page 28

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
28
SEC
SEC
2.15

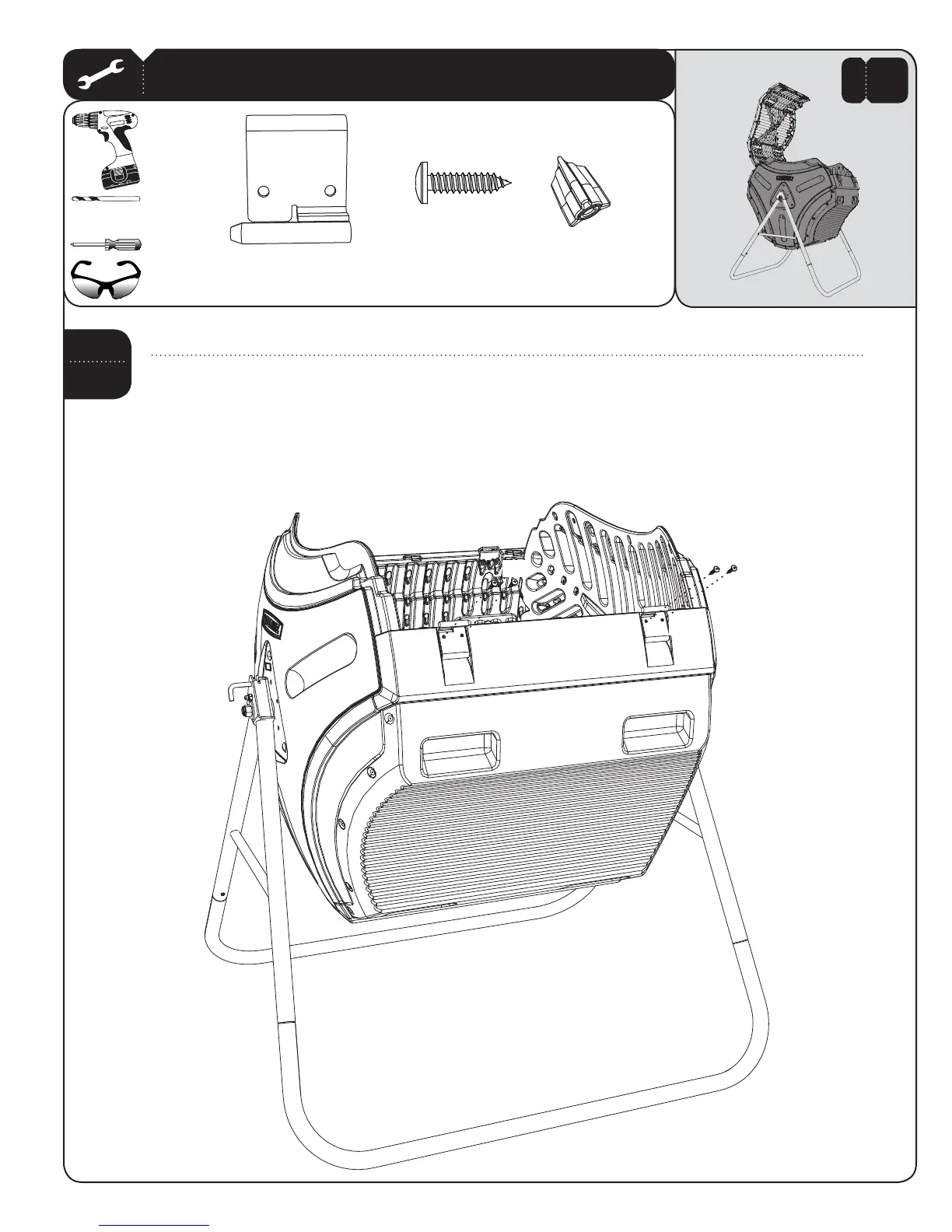

On the other side of the Tumbler, set two Pinned Hinges (BIY) in the locations shown and align the holes in the
1JOOFE)JOHFTXJUIUIFEJWPUTJOUIF1BOFM%SJMMUXPwIPMFTJOUPUIFIPMFTJOFBDI1JOOFE)JOHFBOE
UISPVHIUIFQMBTUJD*OTFSUUXP#10 x 3/4” Phillips Pan-Head Screws (ADW) into the holes of each Pinned Hinge until
the heads of the Screws are flush with the Pinned Hinges. It’s OK if the Screws (ADW) spin freely at this point. Do not
worry about stripping the plastic. 'JOBMMZPOUIFJOTJEFPGUIF5VNCMFSTFDVSFUIF4DSFXTXJUIGPVSPlastic Nuts
(BHK). Tighten the Screws (ADW) into the Plastic Nuts (BHK) with a screwdriver only. Do not overtighten.
BHKY
ADWY
2
BIYY
ADW
BIY
BIY
ADW
ARAY
