TOOLS AND HARDWARE REQUIRED
X SECTION 2 (CONTINUED)
ADJ (x4)
ADJ
ADJ
ADH
ADH (x2)
8 1/4”
8 1/4 in/po (20,96 cm)

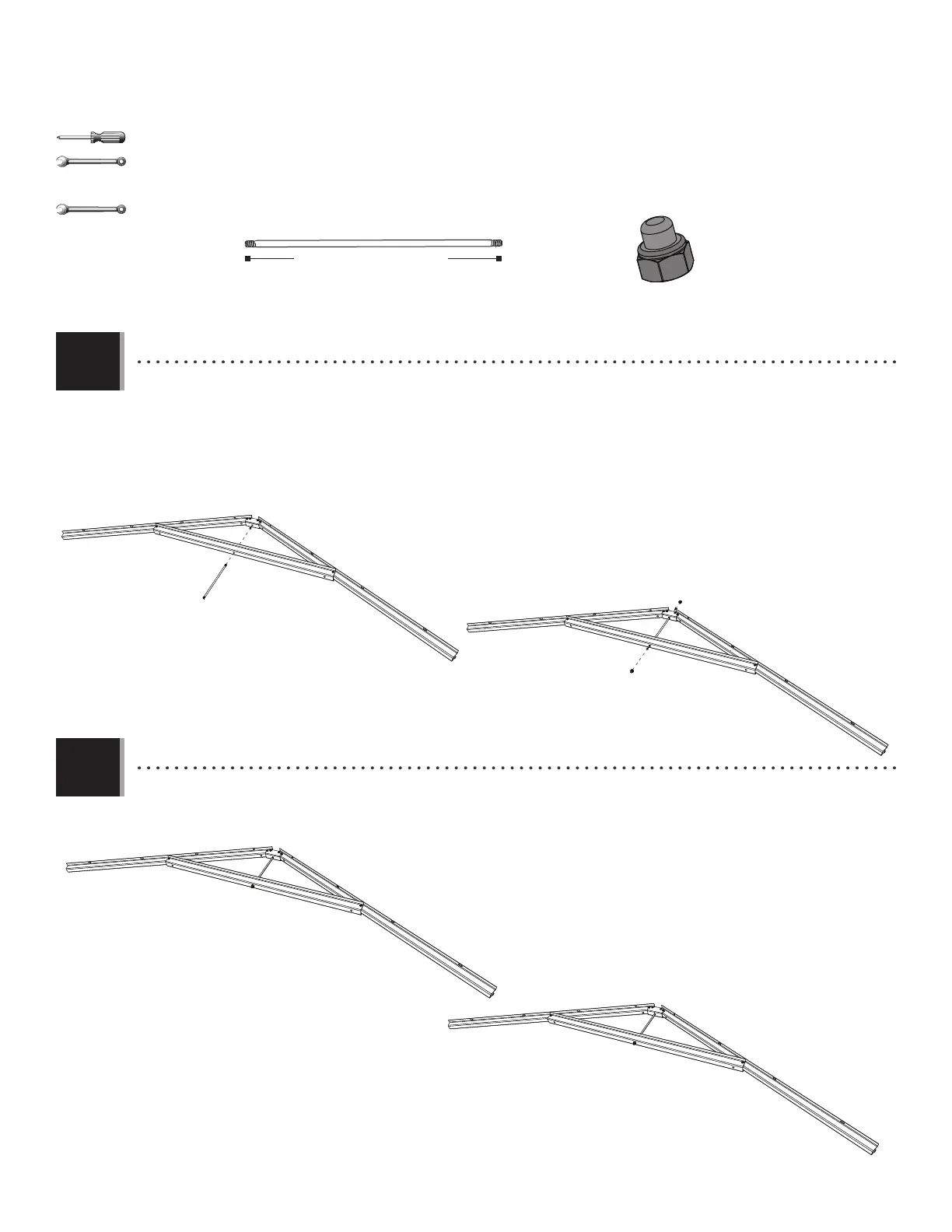

• Slide a Truss Rod (ADH) through the holes in the Truss Brace and Connector. Secure with two Cap Nuts (ADJ). Lay Truss
fl at and tighten all hardware securely.
2.5
2.6
• Repeat this section for the second Truss.
7/16 in/po
(11 mm) (x2)
3/8 in/po
(10 mm)
