Lifetime 6417 - Page 69

TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
69
SEC
8.4
8.4
8.1
8.1
7.1
7.1
SEC
10.17
SEC
10.18

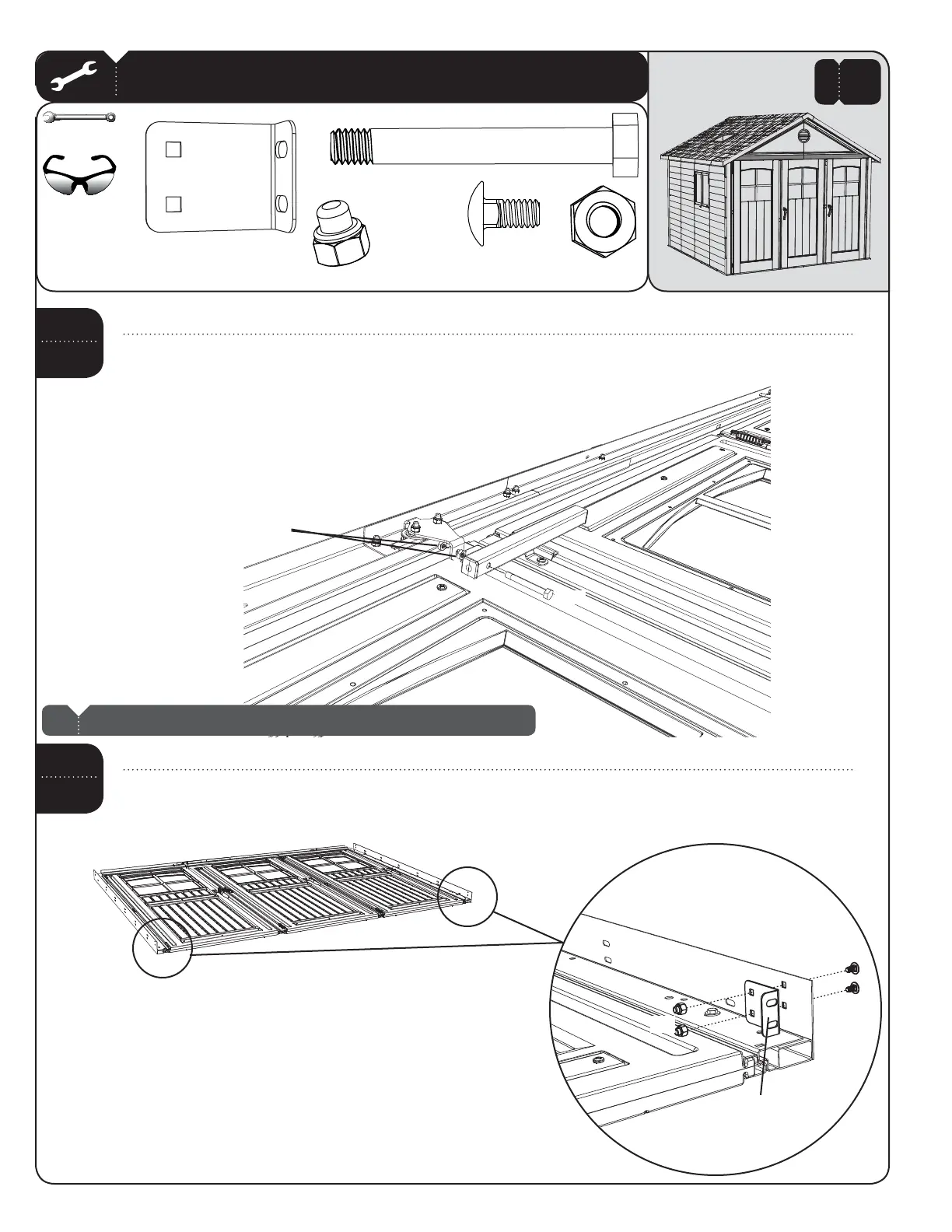

Connect the Carriage Bracket to the Extended Door Brace using one (1) 5/16” x 2 1/2” Hex Bolt (BBG)BOEUXP5/16”
Jam Nuts (AAV). Place one (1) Jam Nut above the Carriage Bracket and one (1) below.
Connect a Door Frame Support Bracket (CJR) to the bottom of the left Corner Door Frame (BLJ)VTJOHUXP1/4” x 1/2”
Carriage Bolts (ACA)BOEUXP1/4” Cap Nuts (ADJ). Repeat this step for the right Corner Door Frame.
AAVY
5/16”Y
BBG (x1)
AAV
BBG
Note: You may need to adjust the Nuts (AAV) later on to allow the door to open freely.
!
10
CJRY
(Not to scale)
ACA (x4)ADJ (x4)
BLJ
ADJ
CJR
ACA
