5
Required for this page:
RC
RG
(Not actual
size)
RF
RH
RK
HD9136B
(2)
(2)
(4)
(2)
(1)

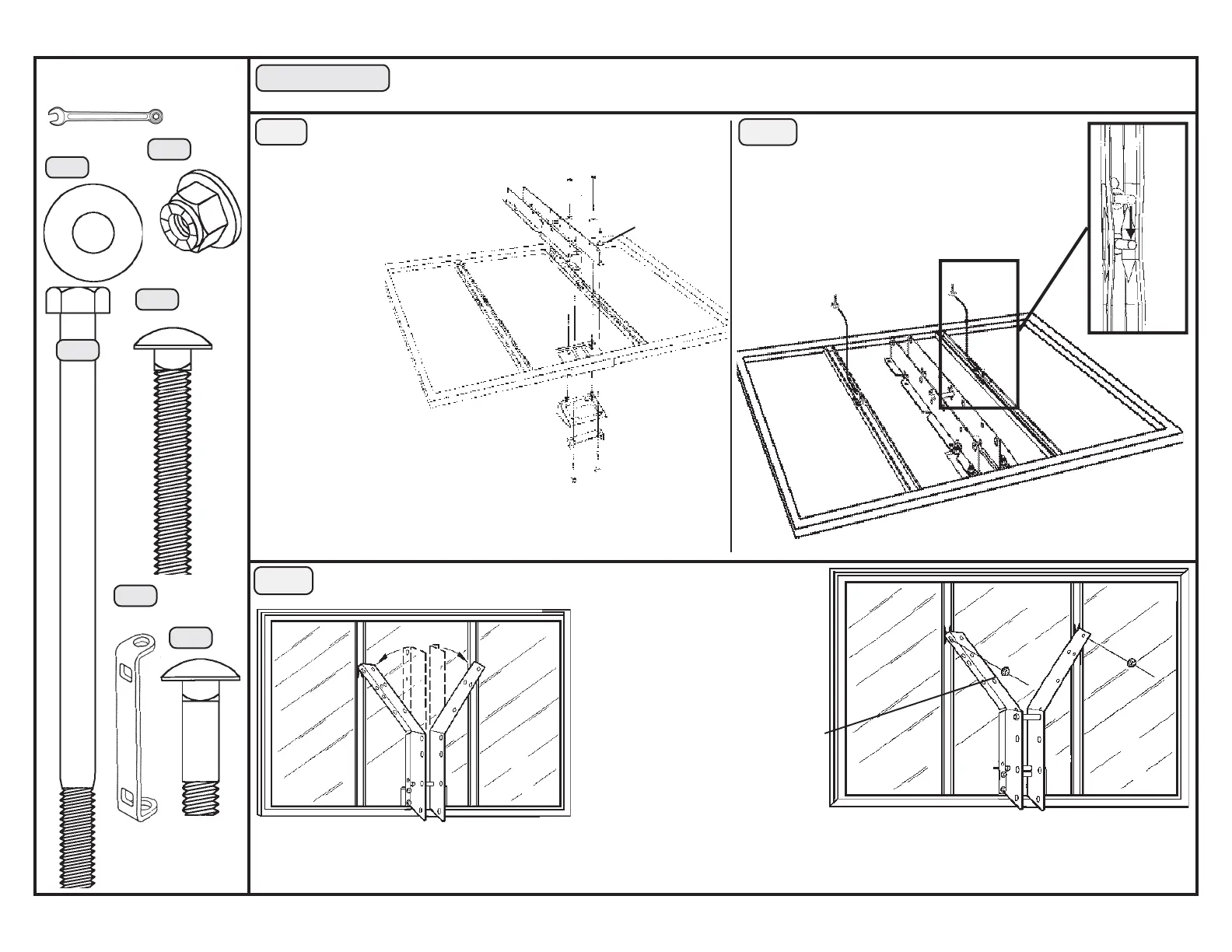

OPTION 2
THIS OPTION IS FOR ASSEMBLY WITH BACKBOARD BRACKETS BUT WITHOUT A U-BOLT.
1/2” Wrench
NOTE: The Backboard Brackets shown are Lifetime Products
®
models and are for illustration purposes only. If using Brackets
other than the Lifetime Products
®
models shown here, refer to the
instructions provided with the Brackets.
1A.1 Lay the Backboard (AB) on a table or bench.
RE
(2)
RE
RE
1B.1 Slide a Carriage Bolt (RE) into
the crimped slot in each backboard
channel.
RH
RH
RE
To finish the assembly, turn to Page 6
1C.1 Bend the Backboard Brackets out so the
lower holes go over the Carriage Bolts.
Note: Do not overtighten
these Nuts (RH).
1C.2 Completely tighten
the Nuts (RH) from Step
1A.
1A 1B
1C
1A.2 The 5/16” x 5” Hex Bolts (RG) go
through the top holes in the bottom of the
Backboard.
Note: Only hand tighten
the Nuts (RH) now.
AD
RG
RF
RH
RC
RK
AB
To Next Page
