7
Required for This Page:
8
Electric Drill
FA
(8)
HH00700
FROM THIS POINT ON FOLLOW THE INSTRUCTIONS PROVIDED
WITH THE POLE OR MOUNTING UNIT.
If you have purchased this combo unit to be attached to a pole-only unit, refer to the pole-only unit for instructions on how to assemble
and attach the combo unit to the pole.
NOTE: FAILURE TO PROVIDE ADEQUATE SUPPORT BEHIND THE BACKBOARD WILL VOID THE PRODUCT WARRANTY.
FOLLOW ALL ASSEMBLY INSTRUCTIONS CAREFULLY.
AF

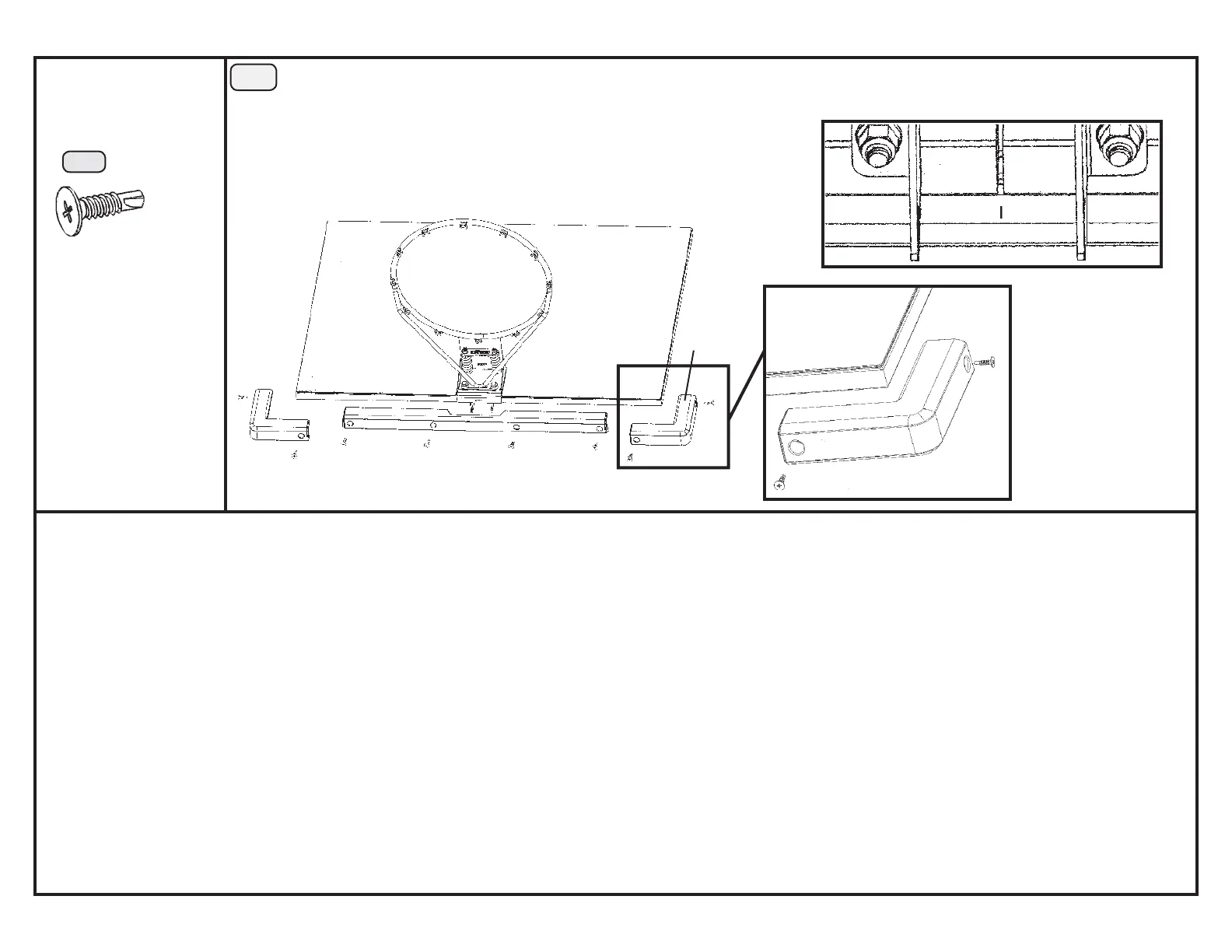

8.1 Remove the plastic film from the Backboard.
Note: The lip of the Frame Pad overlaps the front of the Backboard.
AH
AG
FA
FA
8.3 Use an electric drill to insert the Screws #10 x 7/8“ (FA).
8.2 Attach the Bottom Frame Pad first. Align the small line in the
back of the Bottom Frame Pad with the seam in the Backboard
frame.
AF
To Next Page
