Lifetime 71546 - Page 31

31
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
1/2”
(Not to scale)
ABKY
"+8Y
AOWY
(Not to scale)

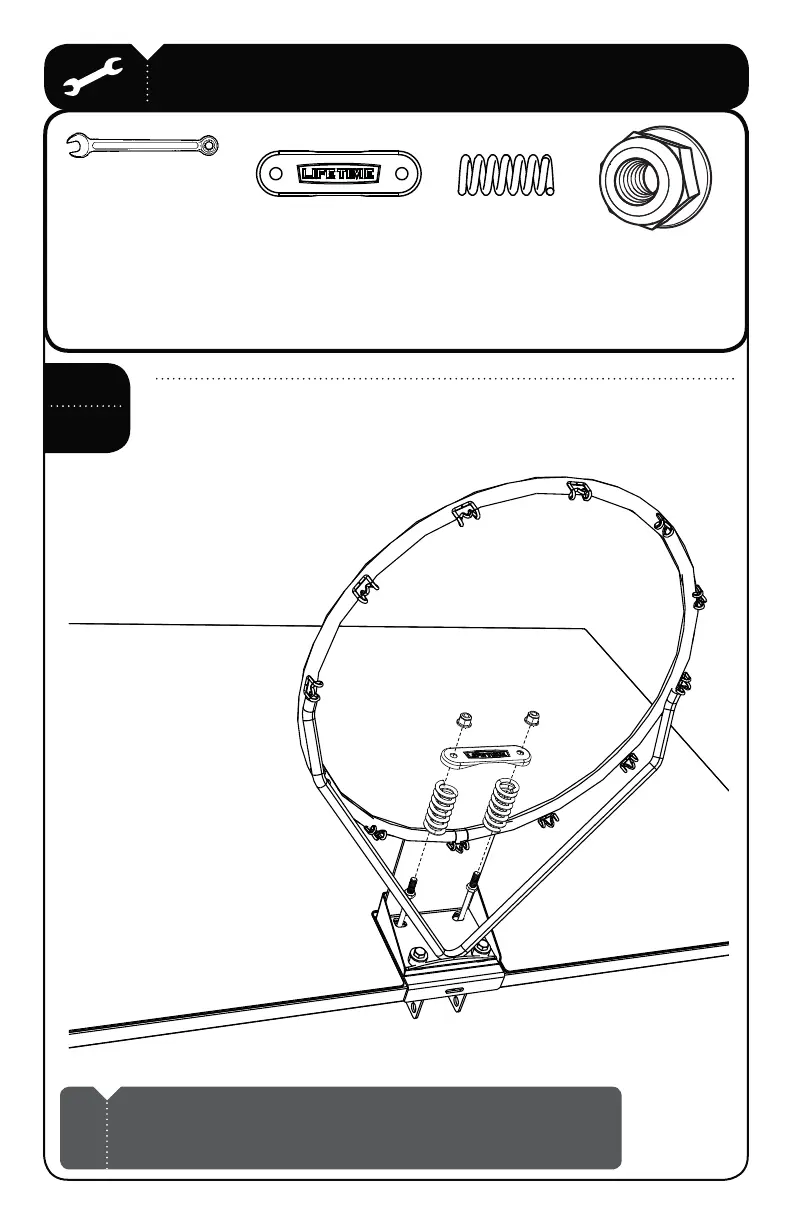

Slide the $PNQSFTTJPO4QSJOHT"+8 onto the 4.86” U-Bolt (BNP), and
place the Spring Retainer Plate (AOW) over the Compression Springs.
Tighten the w/ZMPDL'MBOHF/VUT"#, until the Rim (ALX) does not
wobble to complete this step.
SEC
3.6
Note: DO NOT COMPLETELY TIGHTEN THE 5/16” NYLOCK FLANGE NUTS IN
THIS STEP! Only tighten the Nuts until the Rim (ALX) does not wobble.
Tightening the Nuts will adjust the Rim tension.
!
ABK
AOW
"+8
BNP
ALX
