Lifetime 71546 - Page 43

43
TOOLS AND HARDWARE REQUIRED FOR THIS PAGE
ALB
AKB
AKB
AAD
AAX
ABO
ABO
Note: Tighten the 1/2” Centerlock Nut (AAX) until it is fl ush with the end of the Bolt.
!
AAXY
ABOY
AADY
3/4”Y
SEC
5.8

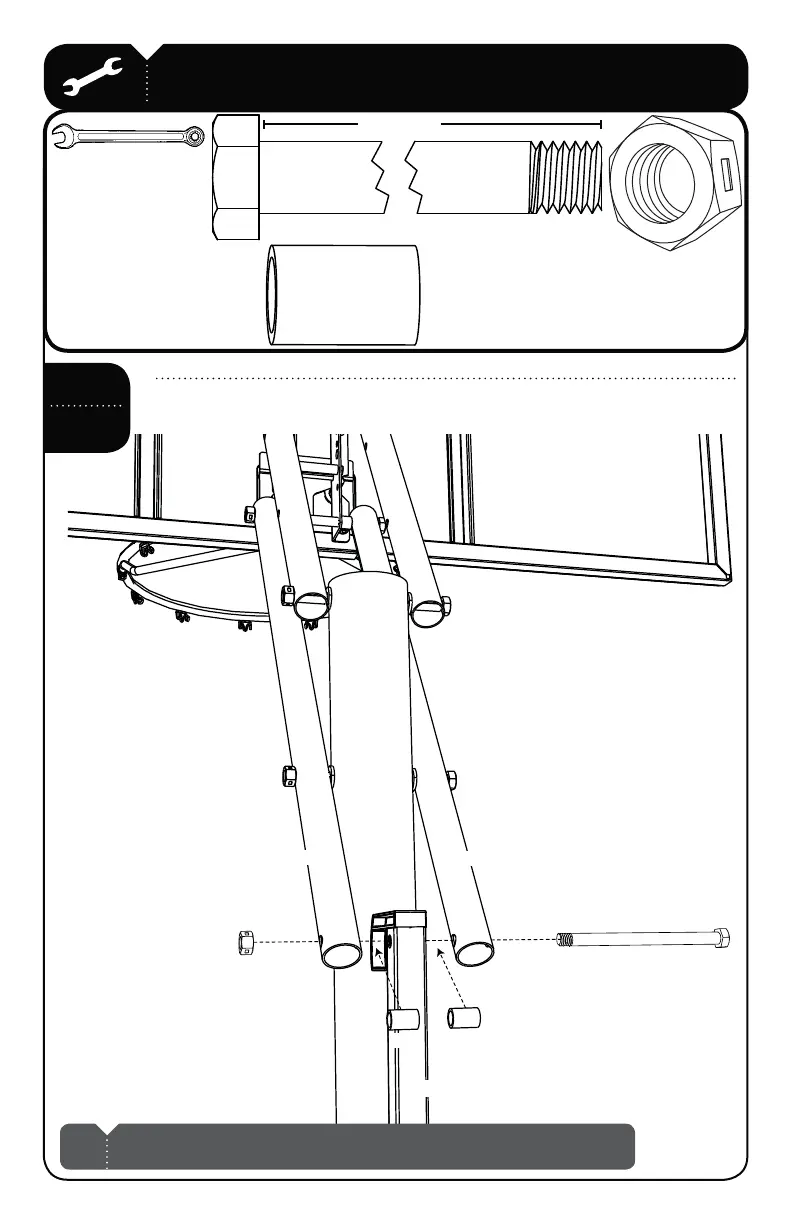

Secure the Outer Tube (ALB) to the Long Extension Arms (AKB) with the
hardware shown.
7 1/8”
(Not actual length)
