Lightforce HTX2 - Kit Contents; Tools Required

2
USER INSTRUCTIONS LIGHTFORCE.COM
KIT CONTENTS
• 1 x 230mm HTX2 Hybrid Driving light
• 1 x Spot lter (tted to light)
• 1 x Reversible mounting bracket (tted loose
to light)
• 2 x M10 x 35mm stainless steel hex bolts with
washers and Nyloc
®
nuts (side bolts tted to
light)
• 1 x M10 x 35mm stainless steel hex bolt with
washer and Nyloc
®
nut (tted to bracket for
mounting)
• 1 x 4-pin waterproof harness adaptor
• 2 x M6 x 30mm stainless steel hex bolts with
washers and nuts (in bag) for optional extra
mounting security (see note on Page 4)
• 1 x Xtreme Top Stay Bracket (24V versions only)
• 1 x User instructions.

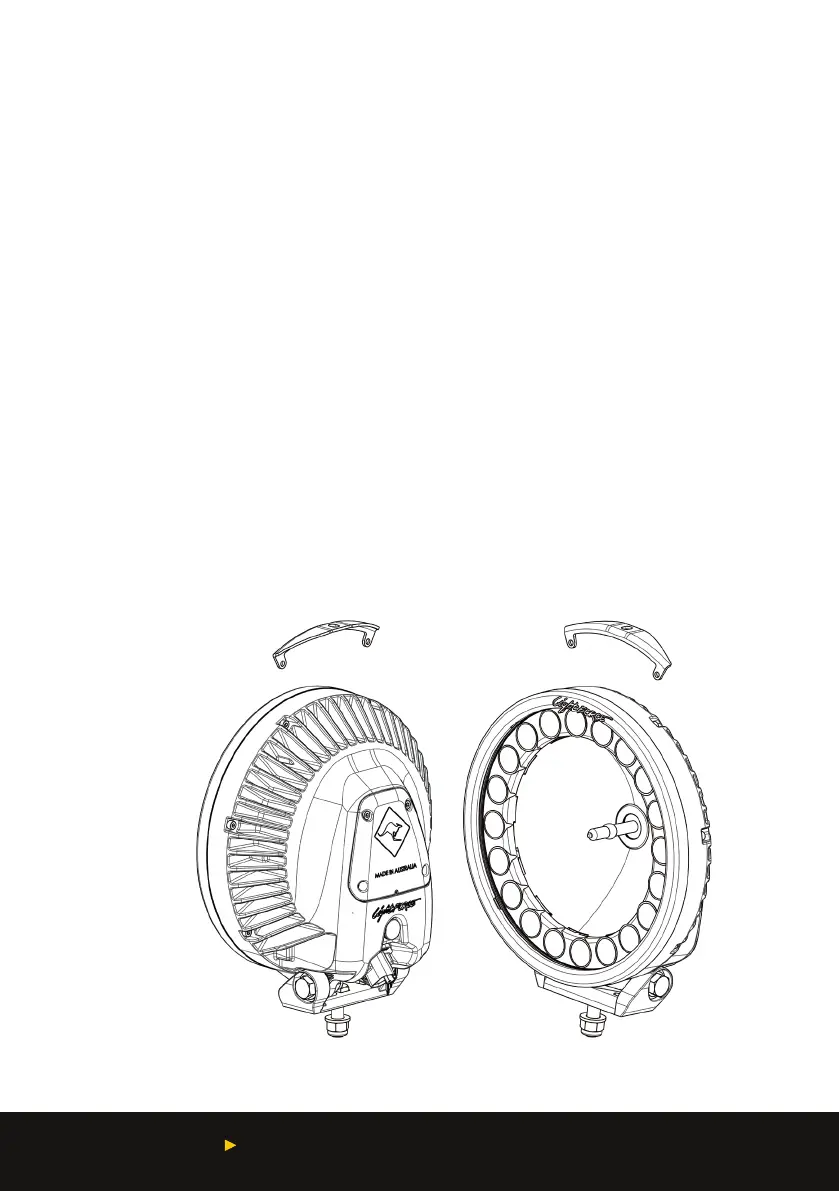

XTREME TOP STAY BRACKET
(HTXMK2TSB)
Optional Xtreme Top Stay Bracket is supplied as
standard with 24V version.
TOOLS REQUIRED
• 17mm and 11mm socket on ratchet
• Torque wrench (recommended).
NOTE
Drawing shown is with lter removed.
