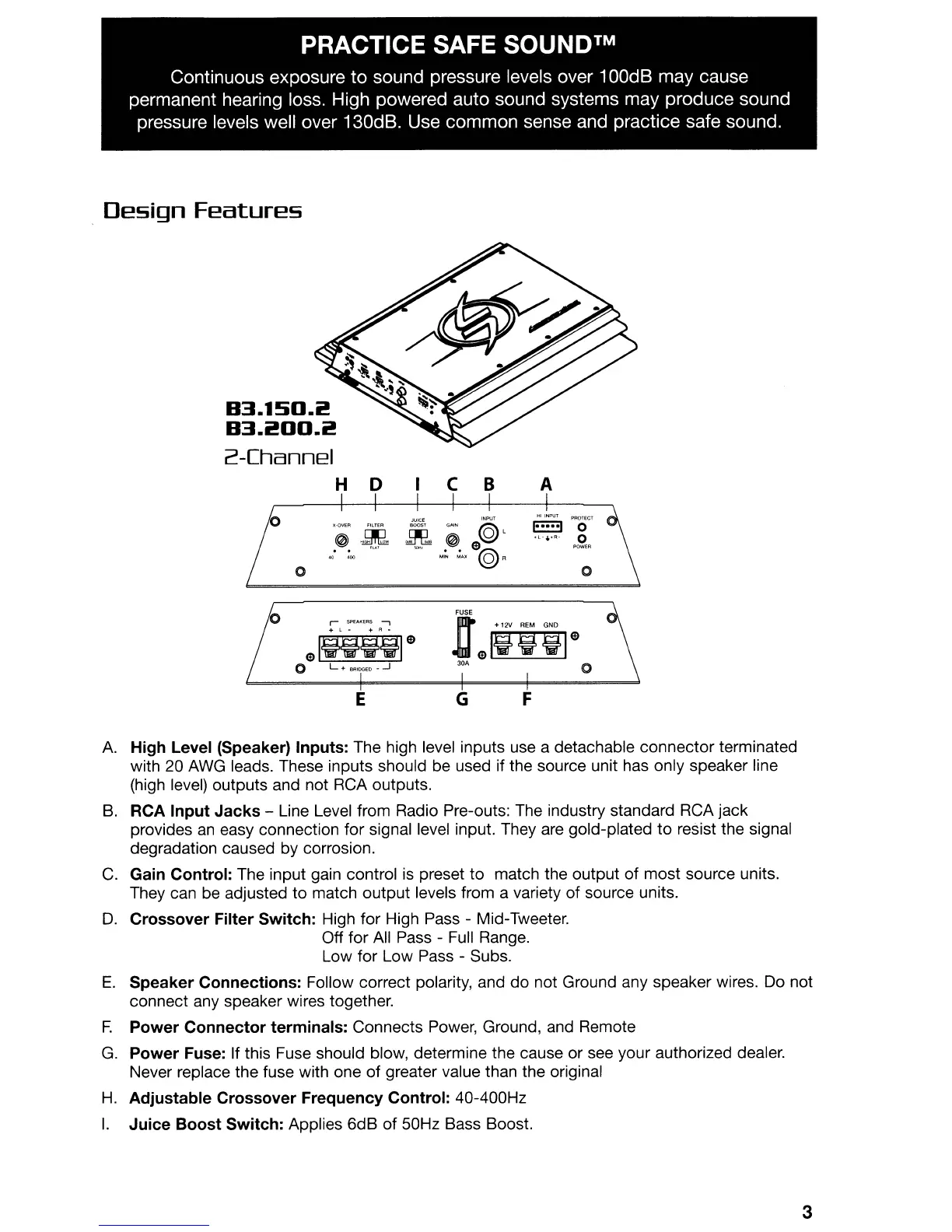

PRACTICE SAFE SOUNDTM
Continuous exposure to sound pressure levels over 100dB may cause
permanent hearing loss. High powered auto sound systems may produce sound
pressure levels well over 130dB. Use common sense and practice safe sound.
Design
Features
FG
JtfiiilO
3M
0
E
$I~i!;:l$
o
L.
BRIOGEO·-.J
B3.1SD.i!
B3.i!OO.i!
2-Channel
H
0 C B A
~""
""""
@L
~
~
~
~
ell
..
@R
~
~
"~
.....
0 0
A.
High
Level (Speaker)
Inputs:
The high level inputs use a detachable
connector
terminated
with 20 AWG leads. These inputs should be used if the source unit has only speaker line
(high level) outputs and not RCA outputs.
B.
RCA
Input
Jacks
- Line Level from Radio Pre-outs: The industry standard RCA jack
provides
an
easy connection
for
signal level input. They are gold-plated
to
resist the signal
degradation caused by corrosion.
C.
Gain
Control:
The input gain control is preset to match the output
of
most
source units.
They can be adjusted
to
match
output
levels from a variety
of
source units.
D.
Crossover
Filter
Switch:
High for High Pass - Mid-Tweeter.
Off for All Pass - Full Range.
Low for Low Pass - Subs.
E.
Speaker
Connections:
Follow correct polarity, and
do
not Ground any speaker wires. Do not
connect any speaker wires together.
F.
Power
Connector
terminals:
Connects Power, Ground, and Remote
G.
Power
Fuse: If this Fuse should blow, determine the cause or see your authorized dealer.
Never replace the fuse with one
of
greater value than the original
H.
Adjustable
Crossover
Frequency
Control:
40-400Hz
I.
Juice
Boost
Switch:
Applies
6dB
of
50Hz Bass Boost.
