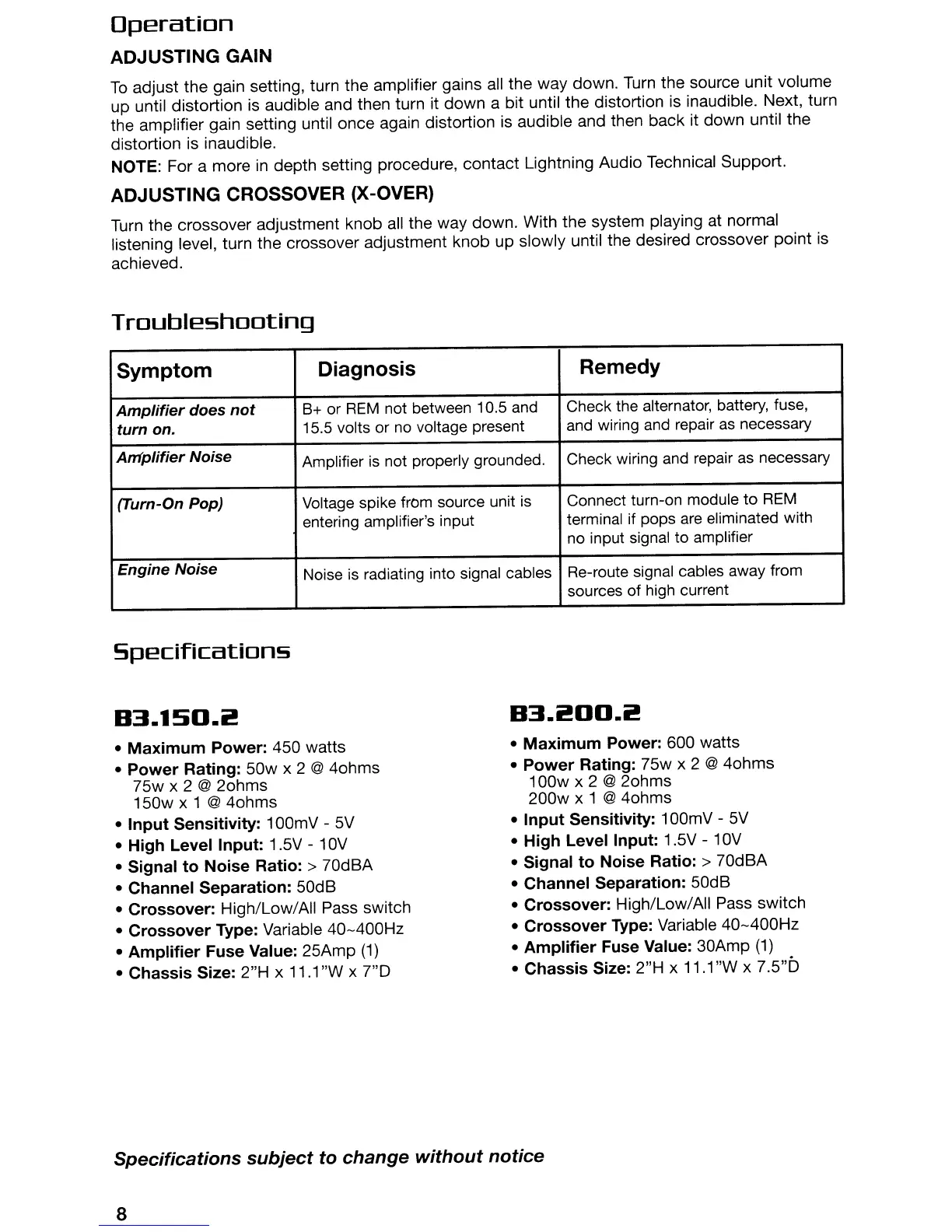

Operation
ADJUSTING GAIN
To
adjust the gain setting, turn the amplifier gains all the way down. Turn the source unit volume
up until distortion is audible and then turn it
down
a bit until the distortion
is
inaudible. Next, turn
the amplifier gain setting until once again distortion is audible and then back it down until the
distortion is inaudible.
NOTE: For a more in depth setting procedure, contact Lightning Audio Technical Support.
ADJUSTING CROSSOVER {X-OVER}
Turn the crossover adjustment knob all the way down. With the system playing at normal
listening level, turn the crossover adjustment knob up slowly until the desired crossover point is
achieved.
Troubleshooting
Symptom
Diagnosis
Remedy
Amplifier does
not
B+
or
REM
not between 10.5 and Check the alternator, battery, fuse,
turn
on.
15.5 volts or
no
voltage present and wiring
and
repair
as
necessary
Amplifier Noise
Amplifier
is
not properly grounded. Check wiring
and
repair
as
necessary
(Turn-On Pop)
Voltage spike from source unit
is
Connect turn-on module to
REM
entering amplifier's input terminal
if
pops
are
eliminated with
no
input signal to amplifier
Engine Noise
Noise
is
radiating into signal cables
Re-route signal cables away from
sources of high current
Specifications
B3.150.i!!
• Maximum Power: 450 watts
• Power Rating: 50w x 2 @ 40hms
75w x 2
@ 20hms
150w x 1
@ 40hms
• Input Sensitivity: 100mV - 5V
• High Level Input: 1.5V - 10V
• Signal to Noise Ratio: > 70dSA
• Channel Separation: 50dS
• Crossover: High/Low/All Pass switch
• Crossover Type: Variable
40-400Hz
• Amplifier Fuse Value: 25Amp
(1)
• Chassis Size: 2"H x 11.1"W x
7"0
B3.i!!OO.i!!
• Maximum Power: 600 watts
• Power Rating: 75w x 2 @ 40hms
100w x 2
@ 20hms
200w
x 1 @ 40hms
• Input Sensitivity: 100mV - 5V
• High Level Input: 1.5V - 10V
• Signal to Noise Ratio: > 70dSA
• Channel Separation: 50dS
• Crossover: High/Low/All Pass switch
• Crossover
Type:
Variable
40-400Hz
• Amplifier Fuse Value: 30Amp
(1)
• Chassis Size: 2"H x 11.1"W x
7.5"0
Specifications subject to change without notice
