Operation:
All connections of the device should be made before switching on. Use only high-quality cables that
are as short as possible for the connections.
4-Channel Mode:
Channel Value Function Note
1 000-255 Dimmer Red Dark to bright
2 000-255 Dimmer Green Dark to bright
3 000-255 Dimmer Blue Dark to bright
4 000-255 Dimmer White Dark to bright
DMX mode:

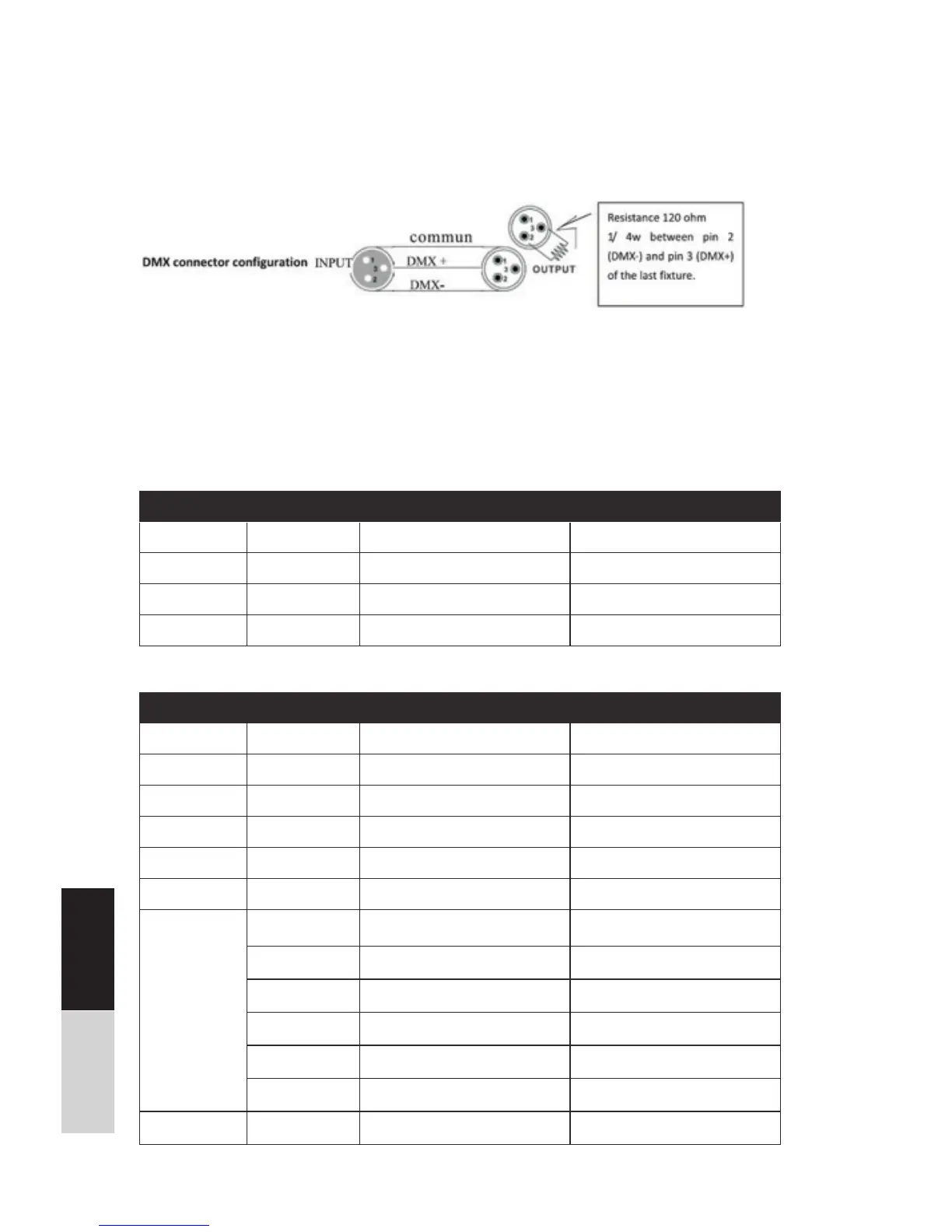

Connect the DMX input of your device to the DMX output of your DMX controller, your DMX
software or the DMX output of a device already in your DMX chain. Always use DMX cable with a
110 Ohm resistor for this connection. Address the device according to your DMX confi guration. The
device has two DMX modes with 4 or 8 channels, which are based on the following functions:
8-Chanel Mode:
Channel Value Function Note
1 000-255 Dimmer RGBW Dark to bright
2 000-255 Dimmer Red Dark to bright
3 000-255 Dimmer Green Dark to bright
4 000-255 Dimmer Blue Dark to bright
5 000-255 Dimmer White Dark to bright
6 000-255 Strobe RGBW Slow to fast
7 000-050 DMX 8CH Control
051-100 Colour program
101-150 Colour change Erratic
151-200 Colour change Graduated
201-250 Colour change Pulsing
251-255 Sound to Light
8 000-255 Speed Slow to fast
