STANDARD REGISTRATION
REPLACING A FLEXMIKE (NO OTHER REGISTERED COMPONENTS IN PLACE)
For users replacing a lost or malfunctioning Flexmike.

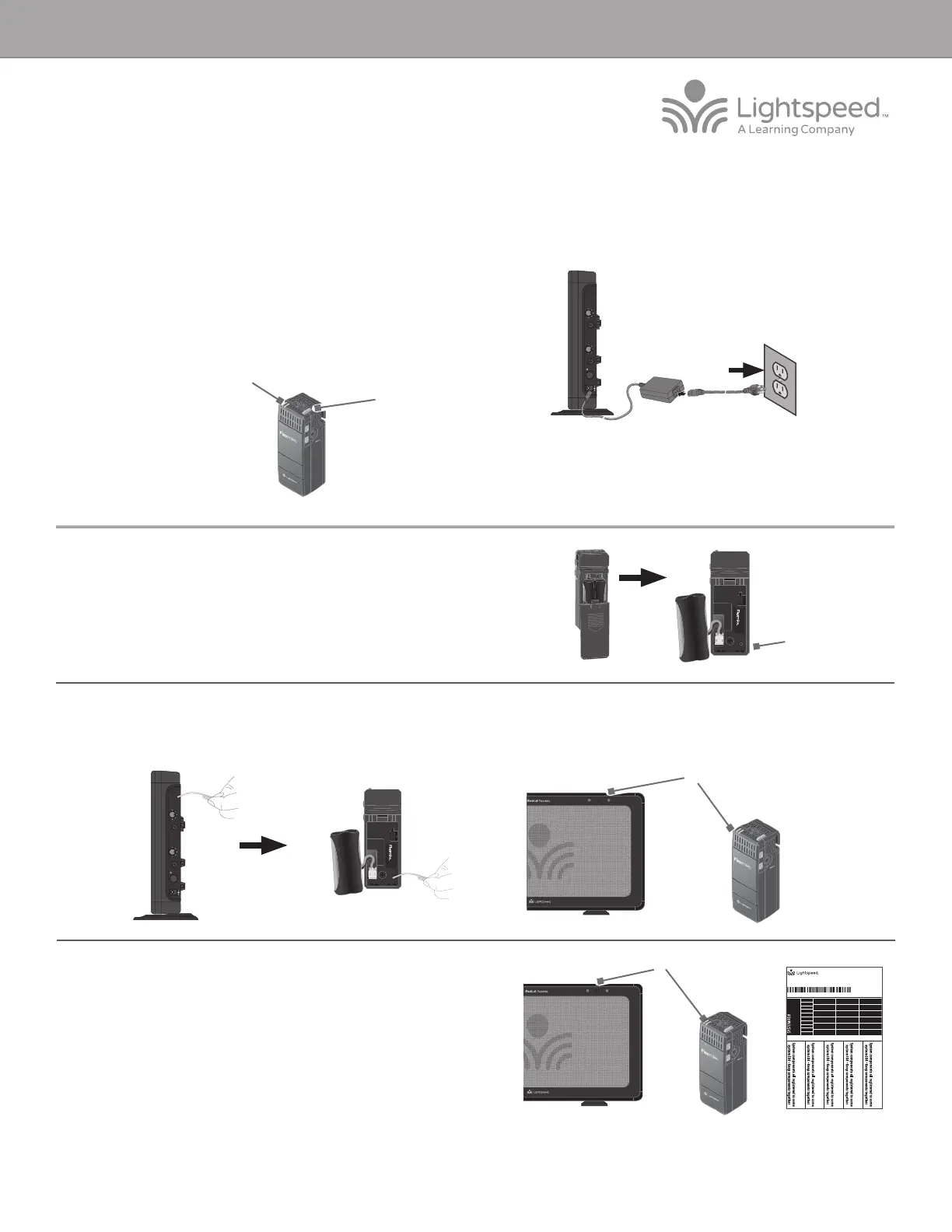

1. Start with the Redcat plugged in and powered on.
2. If replacing a Flexmike, make sure the malfunctioning Flexmike is powered o.
3. Power on the new Flexmike. Both microphone 1 and 2 blue lights should start
blinking.
4. Open the Flexmike battery compartment and pull the battery out (leaving it
plugged in) to reveal the registration button.
7. Aer several seconds, the #1 light on the Redcat will turn solid and the #1 light on
Flexmike will remain blinking, then turn solid.
8. The registration is complete. You can begin speaking into the new Flexmike to
verify there is audio.
9. Place system ID number (attached to Redcat Quickstart Guide) on the new
Flexmike.
Power On
Blinking lights
(NEW Flexmike)
5. Using a paperclip with the end straightened out, briefly press the registration button on the side of the Redcat. The 1 and 2
lights will begin blinking on the Redcat.
6. Briefly press the registration button on the Flexmike. The 1 and 2 lights will start blinking alternately.
NOTE: if at any point, the Redcat or Flexmike lights begin blinking rapidly, that
indicates a registration error. Turn the new Flexmike o and repeat steps 4-9.
1POWER 2
Solid lights
REGISTER
AUDIO IN
MIN
MAX
AUDIO
(ALD) OUT
MIN
MAX
ON/OFF
DC INPUT
16V/2.0A
1POWER 2
Blinking lights
Registration
Button
SYSTEM ID# SYSTEM ID#
SYSTEM ID#
SYSTEM ID# SYSTEM ID#
RETAIN EXTRA LABELS IN THE EVENT A COMPONENT IS REPLACED OR ADDED.
Match components
to this system ID#
Apply to system components to indicate which parts are registered
as a system. Keep registered items together when storing away.
Registration ID Labels
00-01 00-01
00-01
00-01 00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
00-01
334-0162-02-00-01
10101
REDCAT ACCESS REGISTRATION GUIDE
