Installation
The Inline relay requires mains power to operate. It can be used to provide up
to 500W of mains powered switching OR separate volts free switching for
circuits not requiring additional mains power. The relay latches between three
positions: switched live 1, switched live 2 and a neutral position (not connected).
IMPORTANT: The Inline relay is not designed to be left exposed once it is
installed, as live mains wiring is connected to the terminals. Ensure that the
device is mounted securely in a suitable housing. If conducting an insulation
resistance test, all LightwaveRF products must be disconnected from the
mains, or damage will occur.

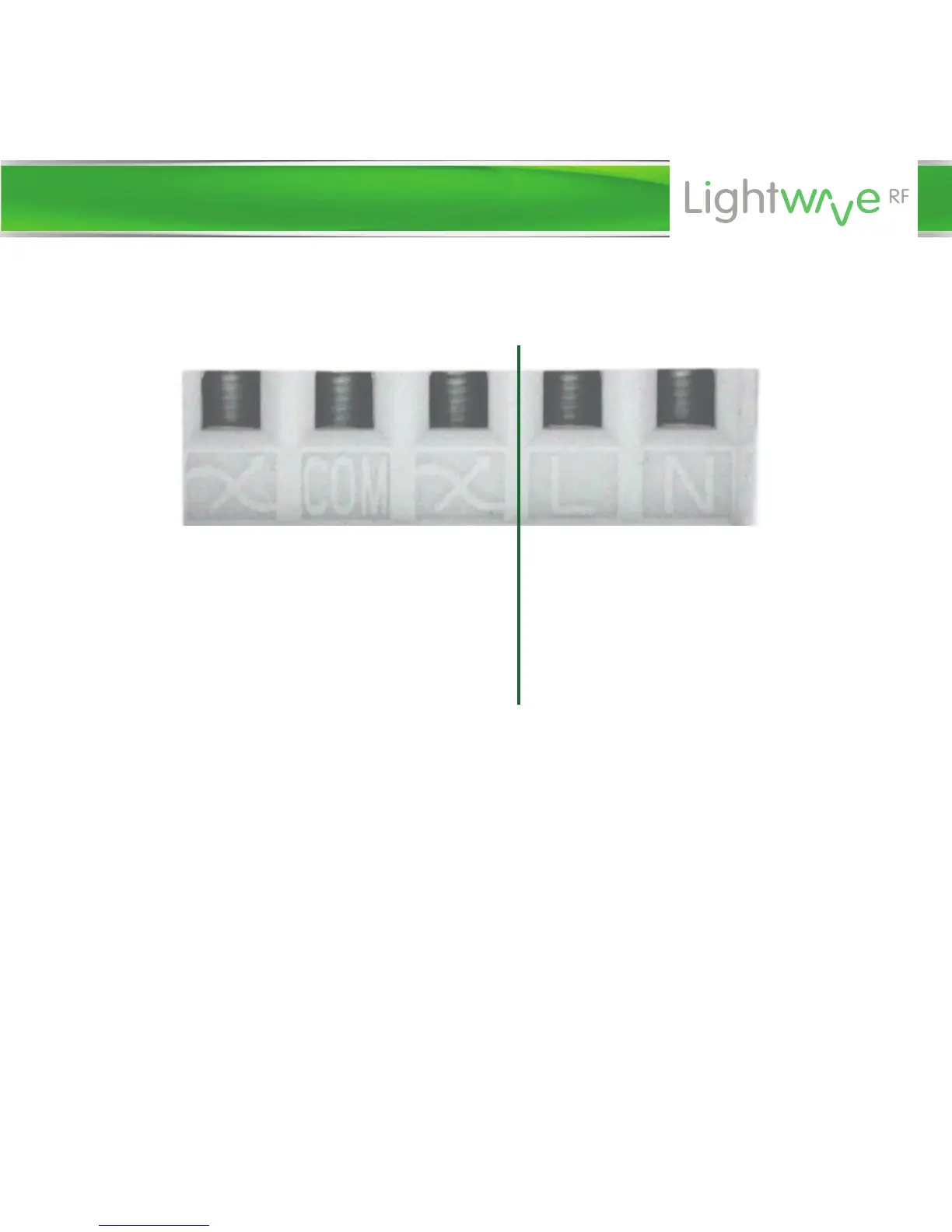

230V Mains
power in
Switching terminals.
Volts free OR mains
Wiring terminals
Switched
live 1
Switched
live 2
Common Live Neutral
