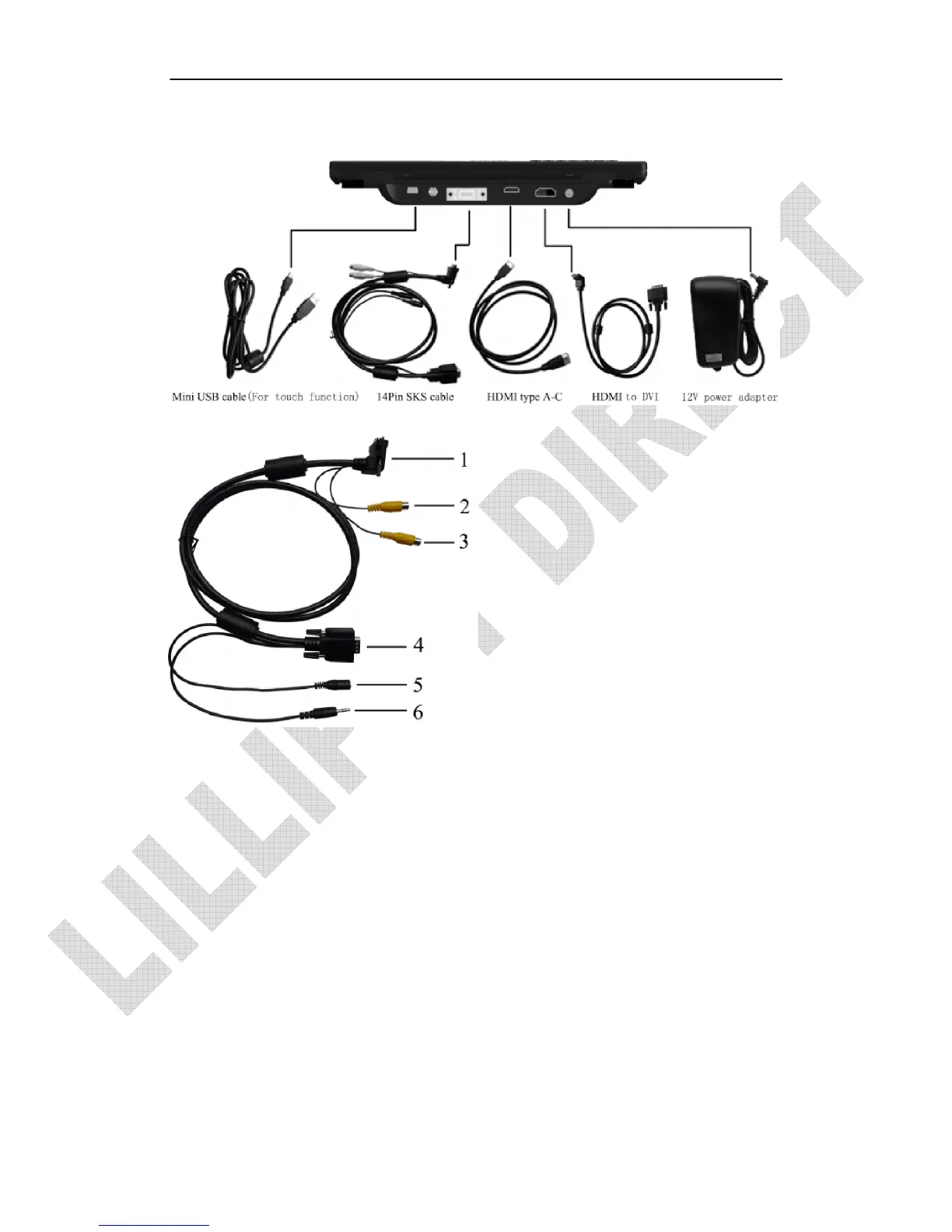

3. WIRING
IN
STRUCTION
S
1. 14Pin SKS signal interface.
2. Yellow RCA: Video signal 1 input.
3. Yellow RCA: Video signal 2 input.
4. VGA signal input.
5. DC 12V Power input
6. Audio: L and R channels signal input.
