8. Controller Installation
8.1 Warning
Avoid installing the device in the following environment:
● Relative humidity is greater than 90%, or possibly dewing.
● Strong vibration.
● Possibility be dropped, or within fog.
● Exposed to eroding and polluting gases (such as: air containing sulfur and ammonia, salty
fog, smoky mist) to prevent erosion and oxidation.
● Ambient containing explosive or inflammable materials/gases.
8.2 Installation Procedure

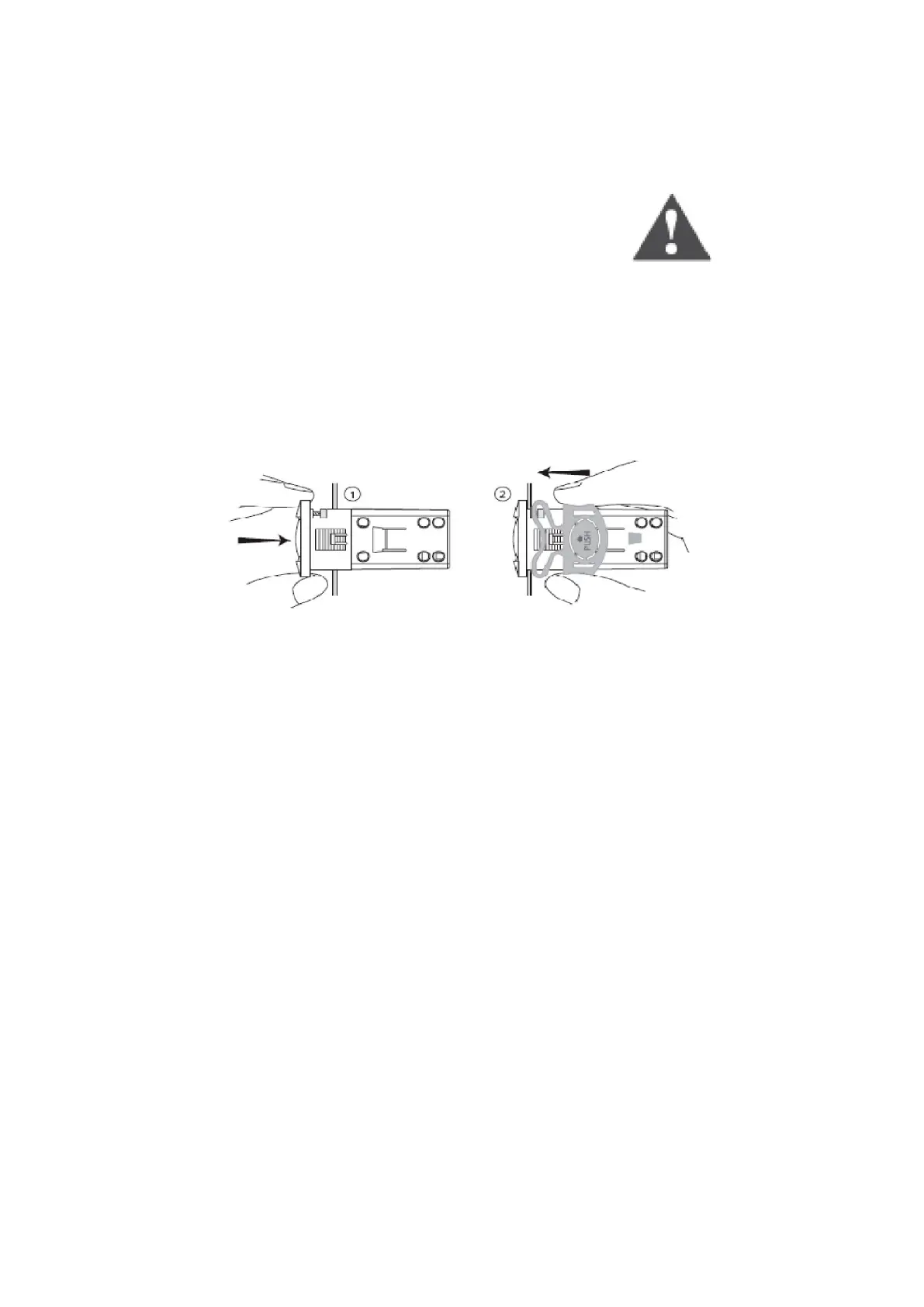

Insert the controller into hole (step one) Slide the bracket to fix the device (step two)
9. Electrical Connection
Warning
● Electrical wiring must be manipulated by certified electrician.
● Wrong power supply may damage the device and system seriously.
● Try with effort to layout the sensors and switches line apart from inductive load lines and
power supply lines. The sensors and switches lines are not allowed go with the power supply
lines and inductive load lines in a same pipeline, and are not allowed to pass near the
contactor, breaker and the similar.
● Reduce the length of sensors’ wiring as possible, avoid forming a spiral shape near the
power devices.
● Avoid direct contact with the internal electronic components.
● After finish and check the electrical wiring layout, before connect them to the device,
please follow this instruction: Pay attention the “electrical wiring diagram” below, wrong
connection possibly damages the device and the system, and may be dangerous to the user.
All security and protecting device for the equipments are necessary. They are very important
to protect the equipments, and the user’s safety.
