Humidity control
If SO3 = SO4, there will be no humidity control function.
If SO3 < SO4, work in humidifying mode:
When room_humdity ≤ SO3, humidity output energized;
When room_humdity ≥ SO4, humidity output de-energized.
If SO3 > SO4, work in de-humidifying mode:
When room_humidity ≥ SO3, humidity output energized;
When room_humidity ≤ SO4, humidity output de-energized.
Sensor calibration
The tolerance of measured room temperature can be calibrated by SC1.
The tolerance of measured room humidity can be calibrated by SC2.
Note: do not plug in/off the sensor, do not connect other wires, when power supplied.
W
W
a
a
r
r
n
n
i
i
n
n
g
g
1. Do not connect wiring when power is supplied.
2. Electrical wiring must be manipulated by certified electrician.
3. Read this manual carefully. Connect according to electrical wiring diagram. Wrong connection will
damage the device.
4. Do not layout the sensor bundle together with power supply bundle.
5. Avoid working in erosive, wet and strong electrical-magnetic field environment, which could affect the
device works correctly.
6. This device has been checked fully before shipment. The warranty time is one year, damaged by
wrong usage, such as wrong connection, is not warranted.

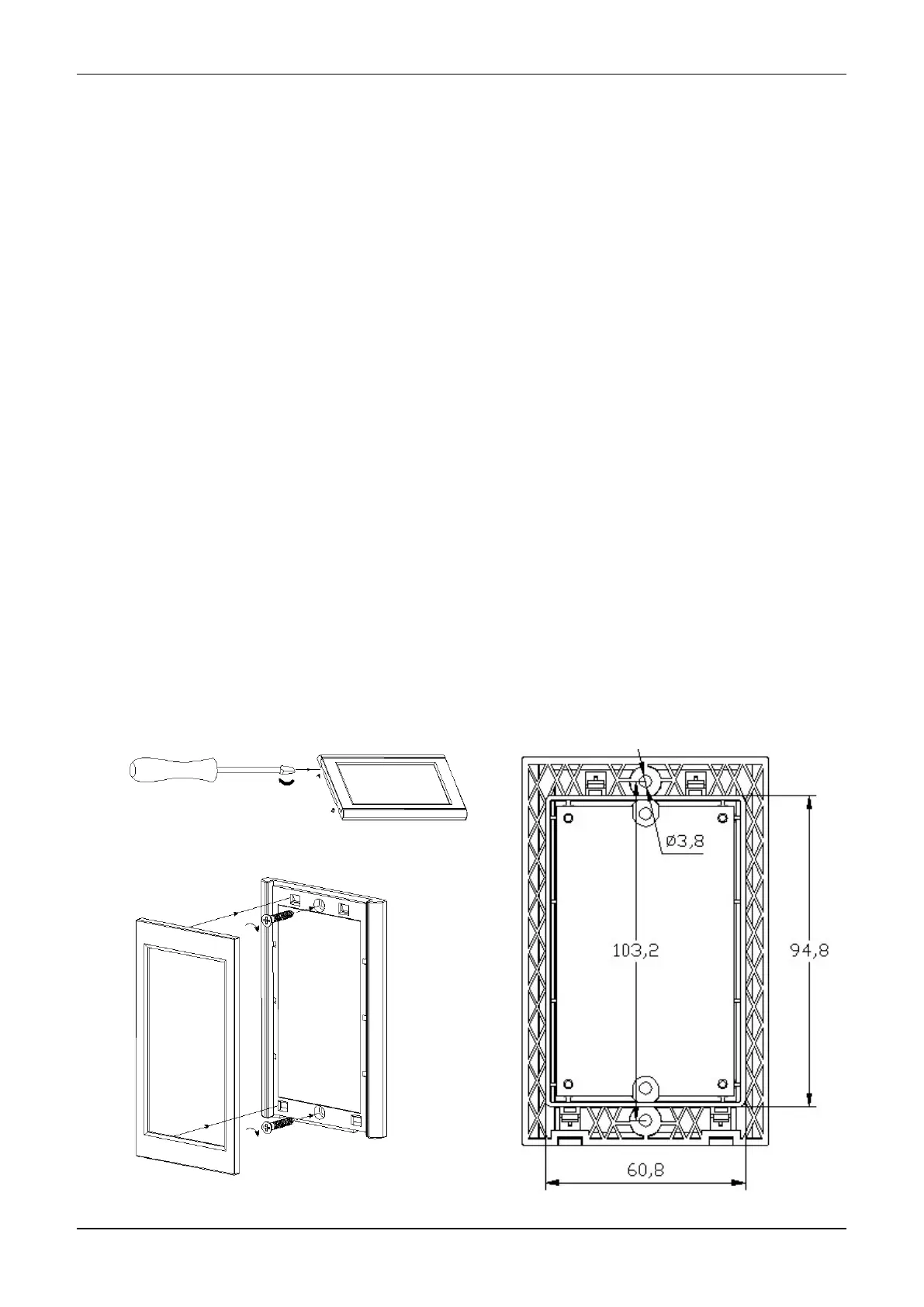

I
I
n
n
s
s
t
t
a
a
l
l
l
l
a
a
t
t
i
i
o
o
n
n
