Lilytech ZL-R200A User Manual

Suzhou Lily Tech. Co., Ltd.
Page 4, Total 4 Pages

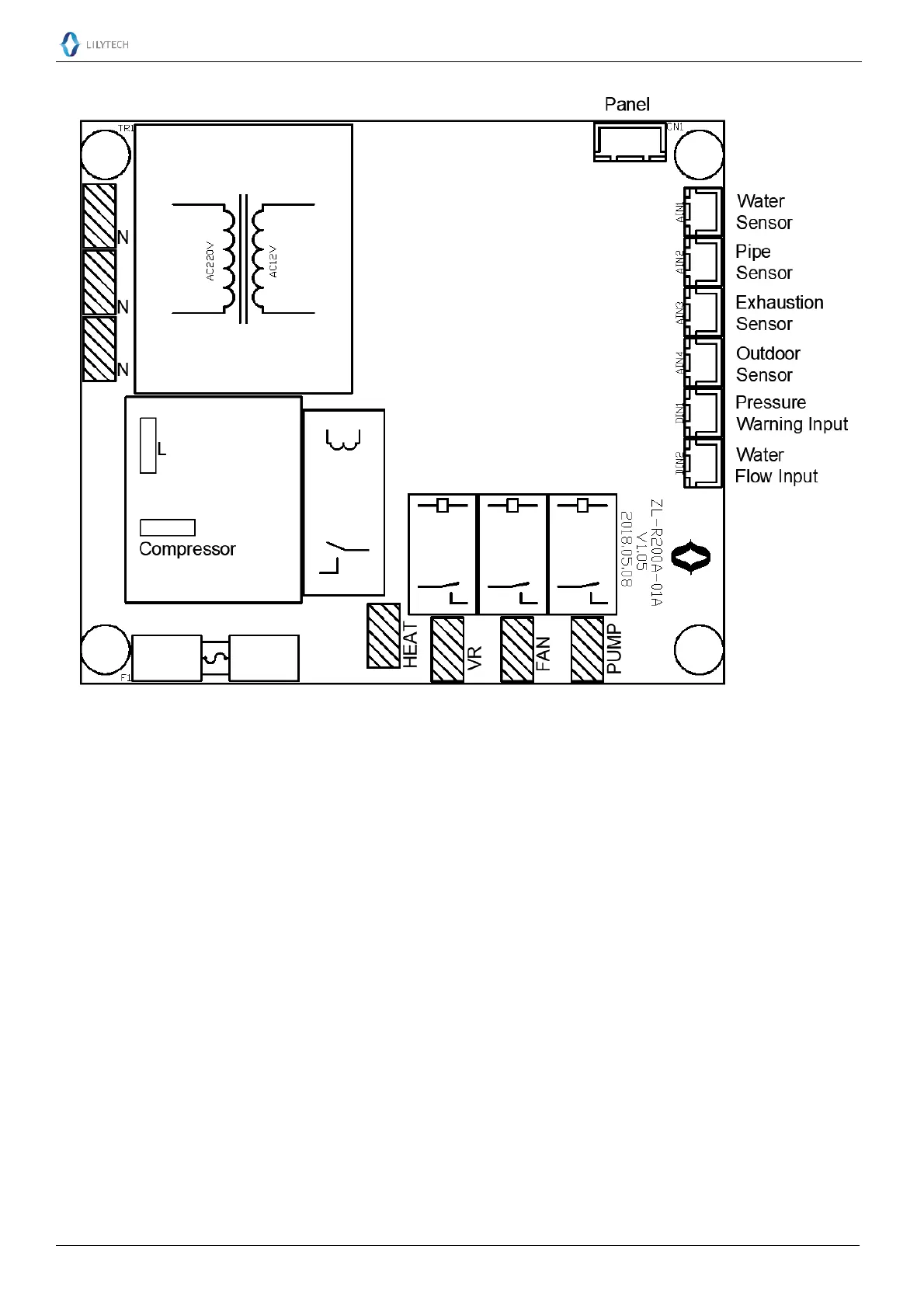

Wiring Diagram
Attention
Set U34 correctly, otherwise system does not work correctly.
The real clock can only keep running correctly for 72 hours after power supply loses.
All sensors must be installed at correct position.
Do not plug in/out panel bundle with power supplied.
Panel should be installed indoors, instead of outdoors.

Lilytech ZL-R200A Specifications

General

Brand	Lilytech
Model	ZL-R200A
Category	Controller
Language	English
