Page 20 of 40
Figure 2: HC40 not paired HC40 paired
For customers pairing the HC40 to the actuator system on the production line when producing the bed, it is possible to pair
the system already after the start-up logo is gone. No need to enter time and day before making the pairing procedure.
How to run references
The menu structure can contain up to four references: back, leg, neck and foot. Loop between the references using the ‘left’
and ‘right’ buttons. To run the references simply go to the screen with the reference and press the ‘up’ or ‘down’ arrow and the
system runs in the requested direction.

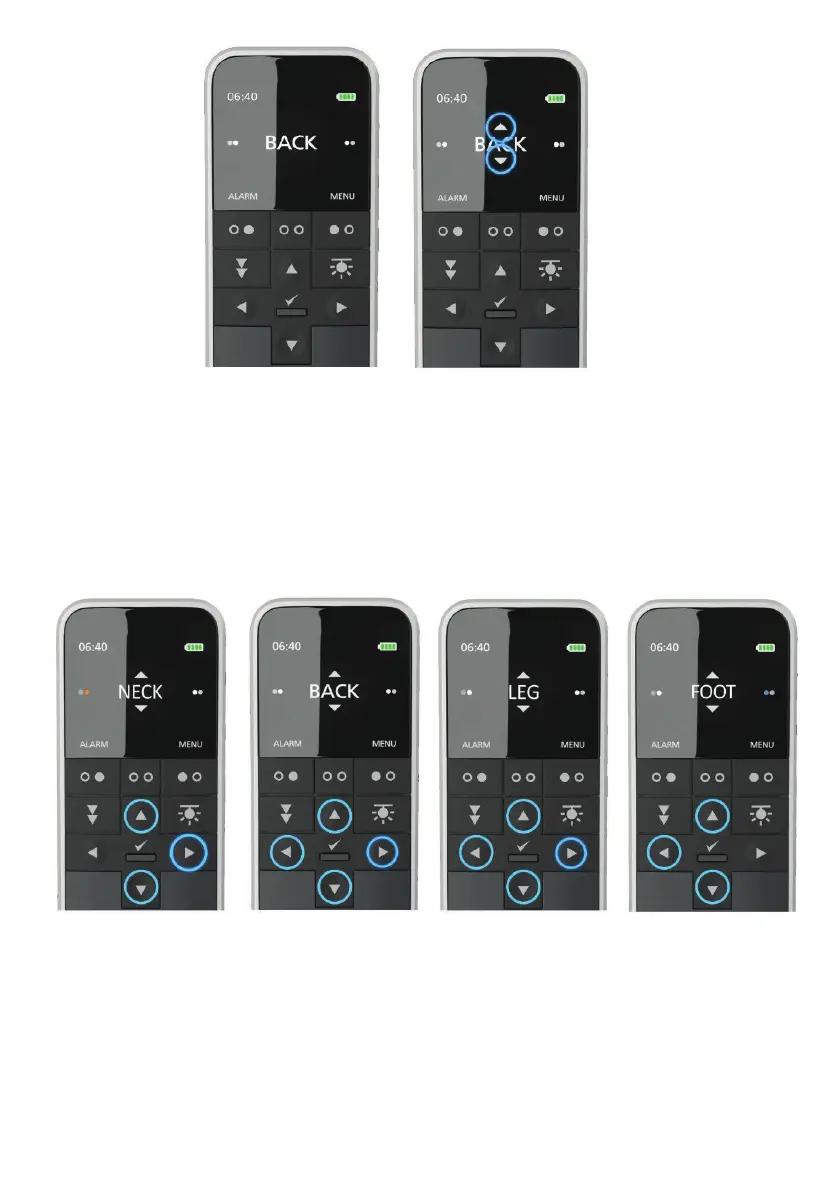

Figure 3: Looping between references and up/down drive of them
