Favourite positions
Save favourite positions
The HC40 allows for storing up to four favourite positions.
1. Drive the bed to the desired position.
2. Loop to the “SAVE FAVOURITE” screen using the ‘left’ and ‘right’ buttons.
3. When the screen is reached, press button 3 “SAVE”.
4. Highlight one of the four favourite positions using the ‘up’ and ‘down’ buttons and press the ‘select’ button to save the
position as the selected “FAVOURITE”.
5. The saved “FAVOURITE” will now show in the main menu loop.

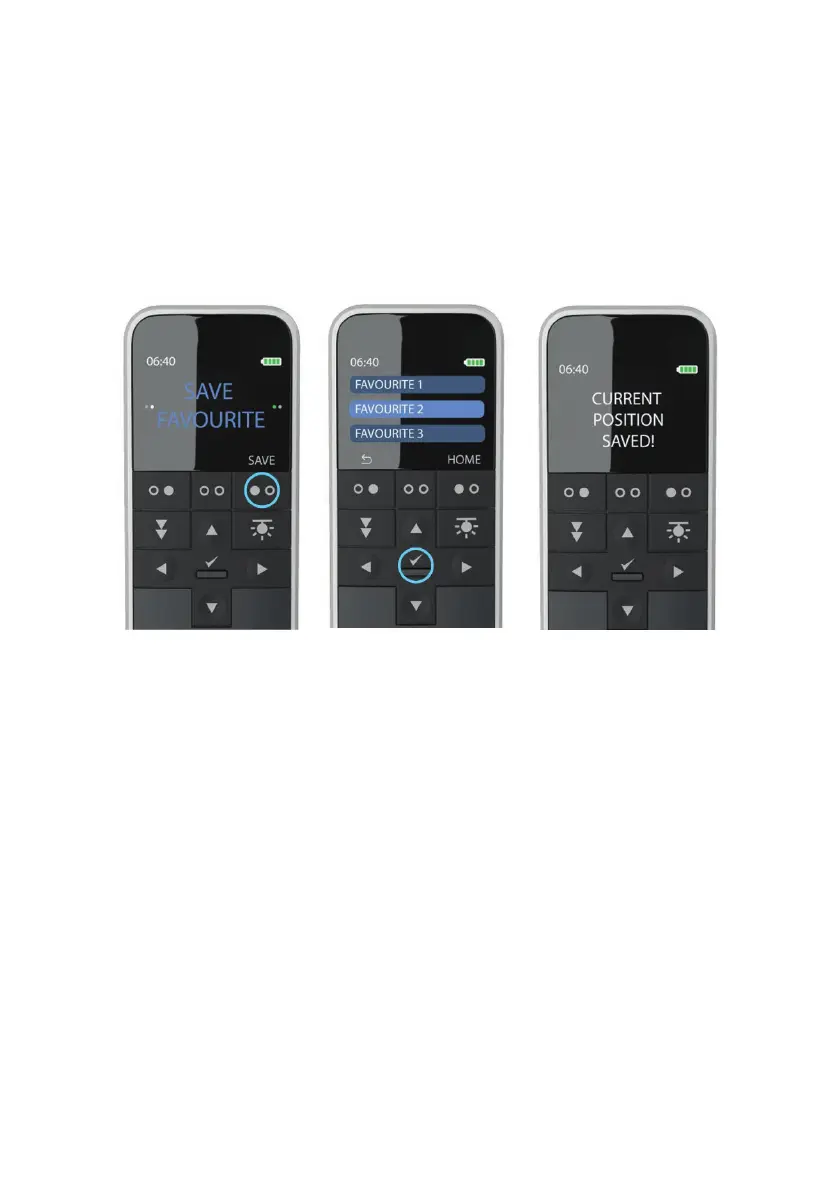

Figure 4: Step 3 Step 4 Step 5
As soon as all positions are saved, the “SAVE” option becomes hidden. It will be shown again as soon as one of the four saved
positions is deleted.
