IS 678 ECN 4993 Page 12 of 20
Component Replacement
Access to the ignition system components most liable to need replacing is best
obtained by removing the complete ignition assembly from the fryer. Referring to

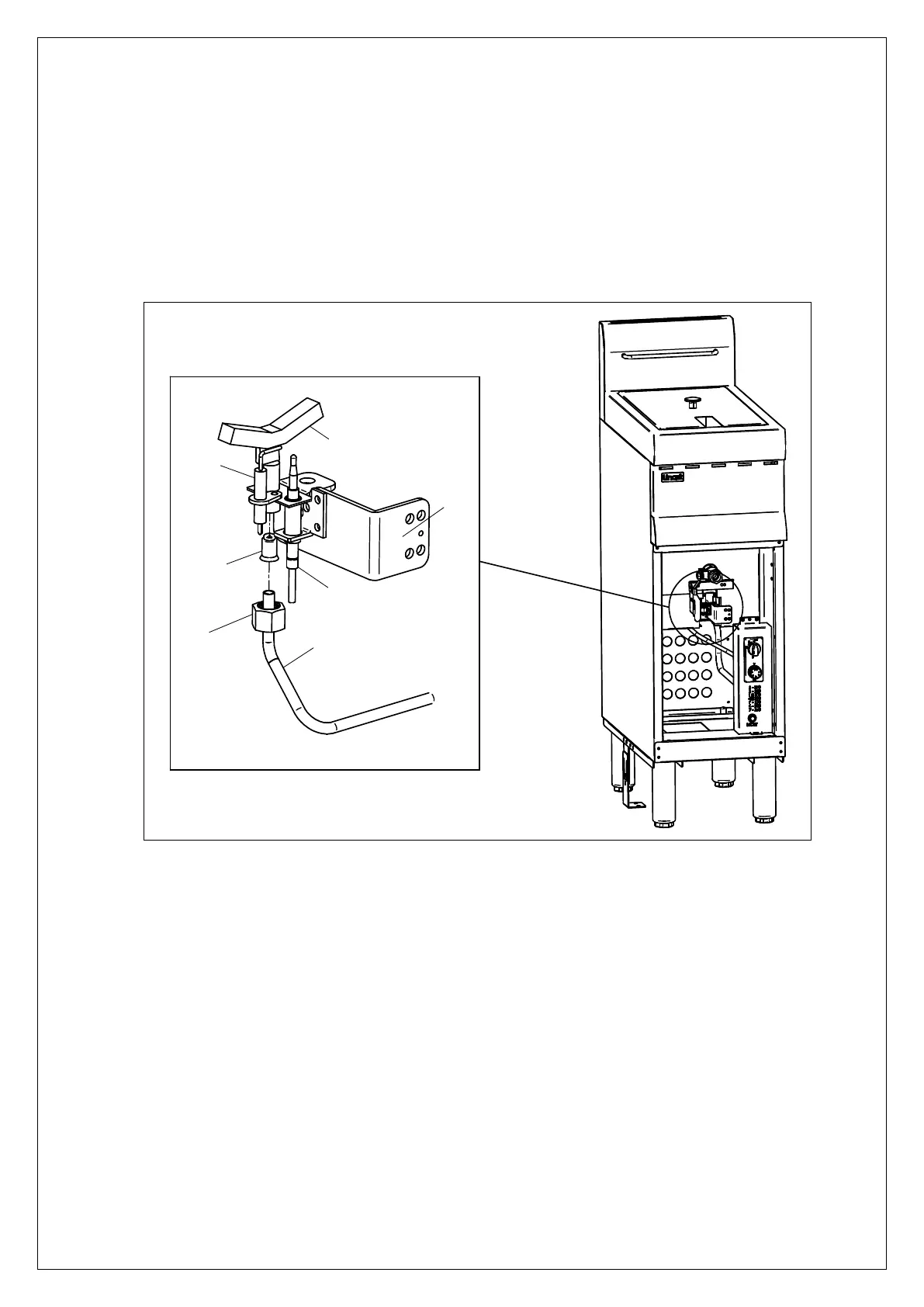

Fig 4, this may be achieved by undoing the pilot nut (A) from the pilot pipe(B) at the
pilot end. Ensure that the pilot jet (D) is not dropped. Next, release the holding
bolts from the bracket (C) and lower the assembly clear of the unit. Replace the
specific part as detailed below, and reassemble in the reverse order.
Fig 4
Igniter electrode and Pilot jet
Remove the ignition assembly as detailed above.
Disconnect igniter lead from igniter.
Remove screw holding igniter electrode.
Reassemble by reversing above. Ensure pilot jet is refitted when fitting pilot pipe.
