INSTALLATIONFlexCut
®
200 CE
INPUT CONNECTION
ELECTRIC SHOCK CAN KILL.
ONLY A QUALIFIED ELECTRICIAN SHOULD
CONNECT THE INPUT LEADS TO THE FlexCut.
CONNECTIONS SHOULD BE MADE IN
ACCORDANCE WITH ALL LOCAL AND
NATIONAL ELECTRICAL CODES AND THE CONNECTION
DIAGRAM LOCATED ON THE INSIDE OF THE
RECONNECT/INPUT ACCESS DOOR OF THE MACHINE.
FAILURE TO DO SO MAY RESULT IN BODILY INJURY OR
DEATH.
Use a three-phase supply line. A 1.75 inch (45 mm) diameter
access hole for the input supply is located on the case back.
Connect L1, L2, L3 and ground per connection diagrams and
National Electric Code. To access the input filter power
connection, remove the seven screws and the left case side of the
machine as shown.
ALWAYS CONNECT THE GROUNDING LUG (LOCATED AS SHOWN IN
FIGURE A.1) TO A PROPER SAFETY (EARTH) GROUND.
INPUT FUSE AND SUPPLY WIRE CONSIDERATIONS
Refer to the Specification Section for recommended fuse, wire
sizes, and type of copper wires. Fuse the input circuit with the
recommended super lag fuses or delay type breakers (also called
“inverse time” or “thermal/magnetic” circuit breakers). Choose
input and grounding wire size according to local or national
electric codes. Using input wire sizes, fuses, or circuit breakers
smaller than recommended may result in “nuisance” shut-offs
from high inrush currents, even if the machine is not being used at
high currents.
WARNING

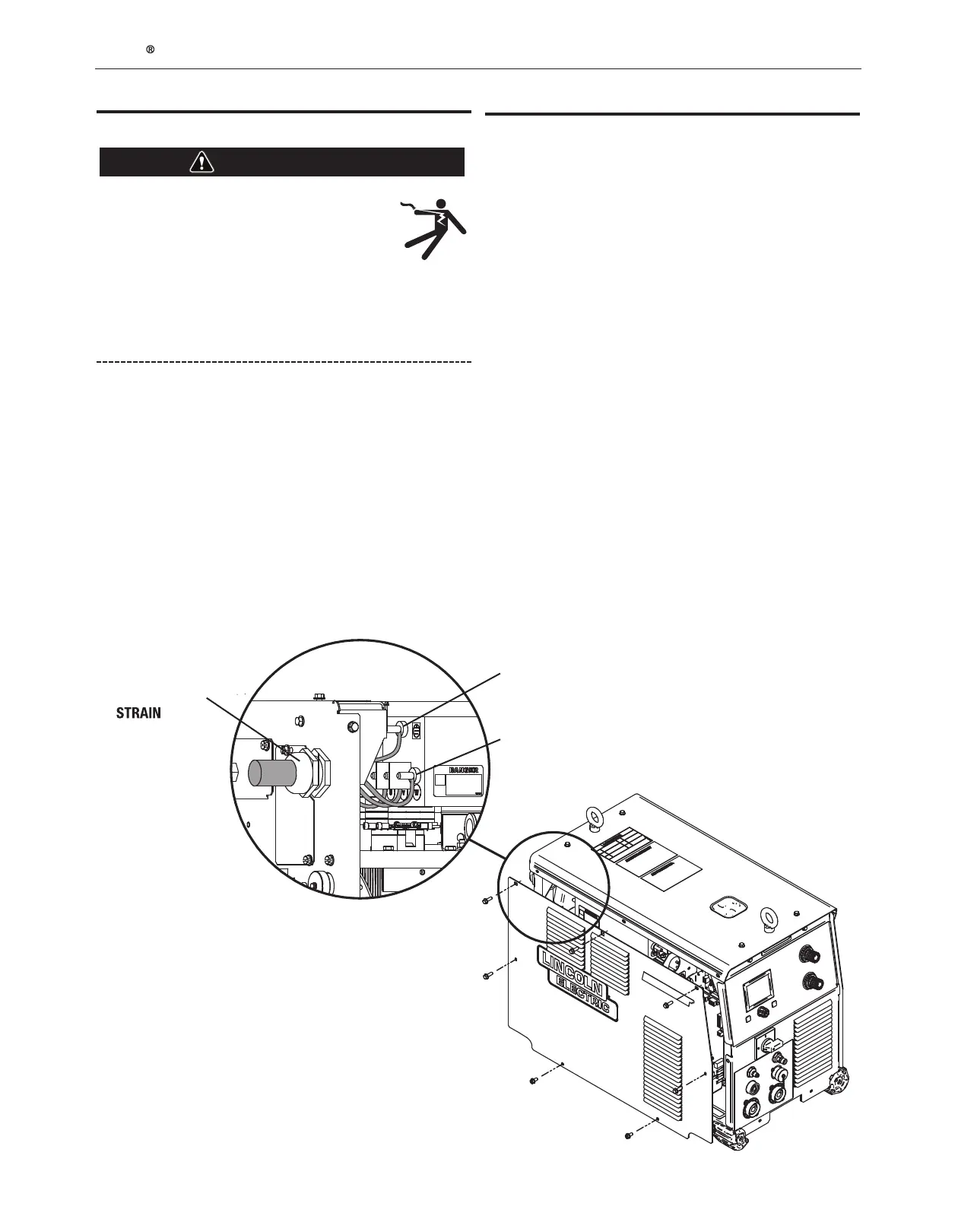

FIGURE A.1
INPUT CORD
RELIEF
Route input cord
through the relief
and twist nut to
tighten.
GROUND CONNECTION
Connect Ground Lead per local and national electric codes.
EMI FILTER
Connect each phase of a three phase conductor here.
