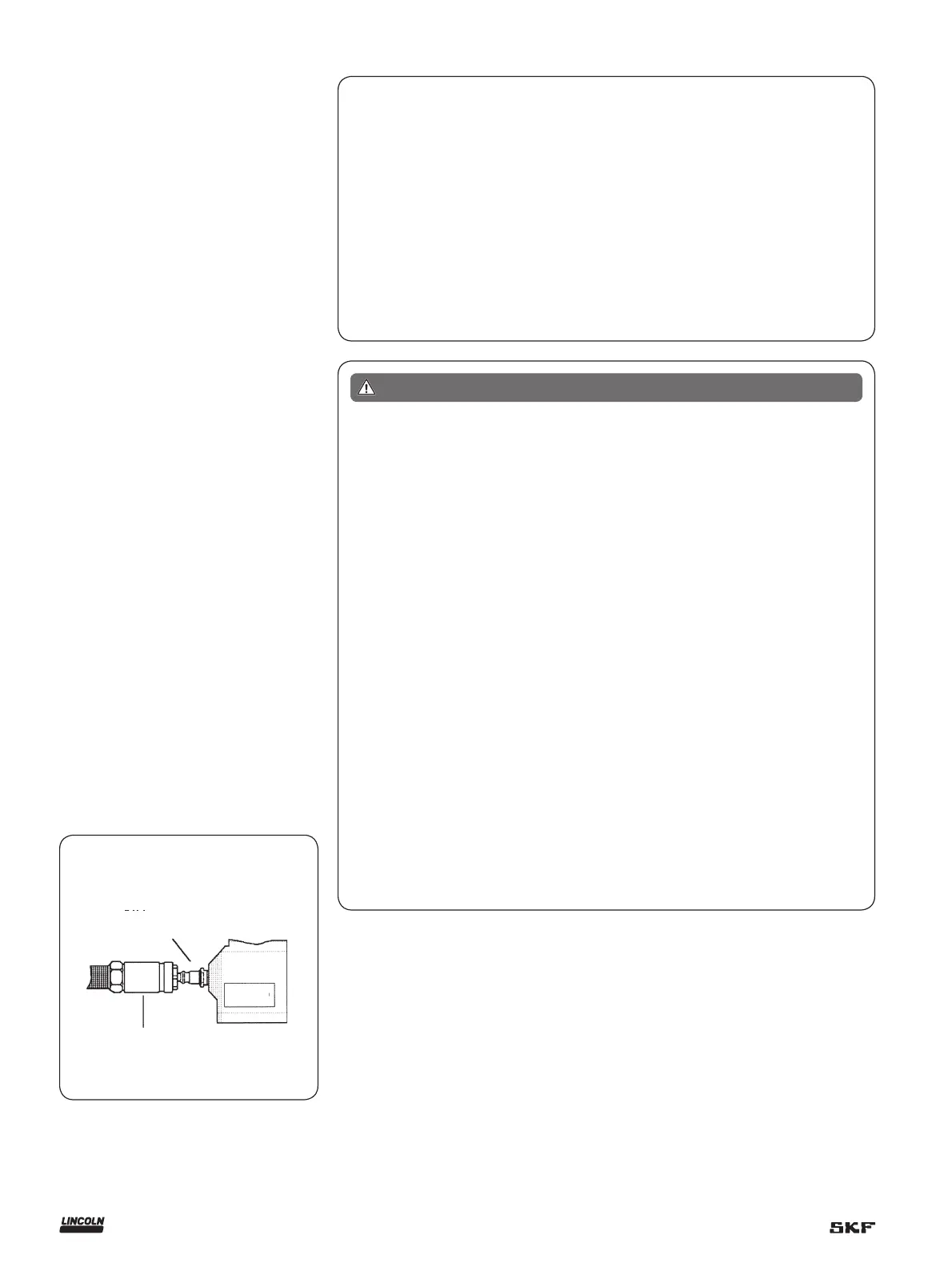

Air nipple
Air coupler
Pump
Description
Model 83513 is an air operated chassis
pump designed to pump low and medium
viscosity materials (grease) from drums and
pails.
Owner/operator responsibility
it is the owners/operators responsibility to
properly use and maintain this equipment.
The instructions and warnings contained
in this manual shall be read and understood
by the owner/operator prior to operating this
equipment.
It is the owners/operators responsibility to
maintain the legibility of all warning and
instruction labels.
The owner/operator shall retain this
manual for future reference to important
warnings, operating and maintenance
instructions.
Safety information
Read and understand all warnings, cautions
and instruction before operating this equip-
ment. Extreme caution should be used
when operating this equipment as personal
injury and/ or property damage can result
from equipment misuse. Adequate personal
protection is recommended to prevent
splashing of material on the skin or in the
eyes. ALWAYS disconnect air coupler from
pump when the pump is not being used.
Specifications
Airmotor effective diameter 2.5 in. (63,5 mm)
Air inlet
1
/4 in. NPTF
Material outlet
1
/4 in. NPTF
Ratio 50:1
Delivery output 80 in.³/minute (1 311 cm³)
Delivery 0.35 in.³/cycle (5,7 cm³/cycle)
Minimum air pressure 30 psi (2 bar)
Maximum air pressure 150 psi (10 bar)
Maximum output pressure 7,500 psi (517 bar)
Noise level at 120 psi (8 bar) <85 dBA
Failure to heed the following warnings
including misuse, over pressurizing,
modifying parts, using incompatible
chemicals and fluids, or using worn or
damaged parts, may result in equip-
ment damage and/or serious personal
injury, fire, explosion, or property
damage.
• Do not exceed the stated maximum
working pressure of the pump, or of
the lowest rated component in your
system.
• Do not alter or modify any part of this
equipment.
• Do not operate this equipment with
combustible gas.
• Do not attempt to repair or disassem-
ble the equipment while the system is
pressurized.
• Make sure all grease connections are
securely tightened before using this
equipment.
WARNING
• Always read and follow the grease manu-
facturers recommendations regarding
grease compatibility, and the use of pro-
tective clothing and equipment.
• Check all equipment regularly and repair
or replace worn or damaged parts
immediately.
• Never point the dispensing valve at any
part of the body or at another person.
• Never try to stop or deflect material from
dispensing valve or leading connection or
component with your hand or body.
• Always check equipment for proper op-
eration before each use, making sure
safety devices are in place and operating
properly.
• Always follow the pressure relief proce-
dure after shutting off the pump, when
checking or servicing any part of the sys-
tem, and when installing, cleaning or
changing any part of the system.
