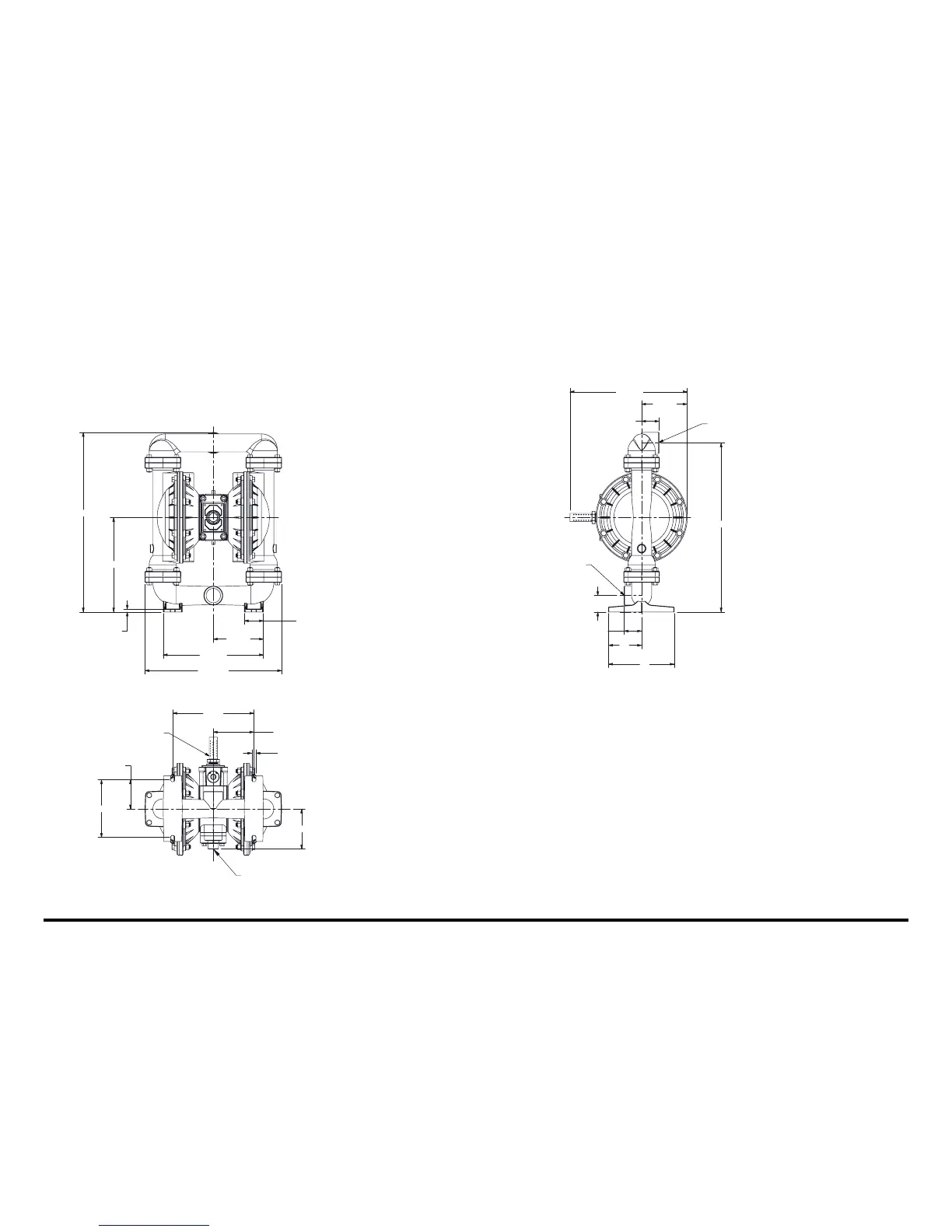

Lincoln 85621 - Dimensions

 
AIR INLET
3/4" NPT
SIDE VIEW
DIMENSIONAL TOLERANCE: ±1/8"
MODELS 85621 SERIES B
BOTTOM VIEW
FRONT VIEW
METAL MUFFLER
1" NPT EXHAUST PORT
SUCTION PORT
1 1/2" NPT
DISCHARGE PORT
1 1/2" NPT
1/2
5/16
4 7/8
7 1/32
3 9/16
9 7/8
4 15/16
22
11 1/2
2 5/16
16 21/32
12 3/16
6 3/32
2 1/8
4
8
2
20 9/16
2 1/8
5 9/16
14 9/32





