FlowMaster™ Rotary Driven Electric Pump
Maintenance and Repair
Form 402753

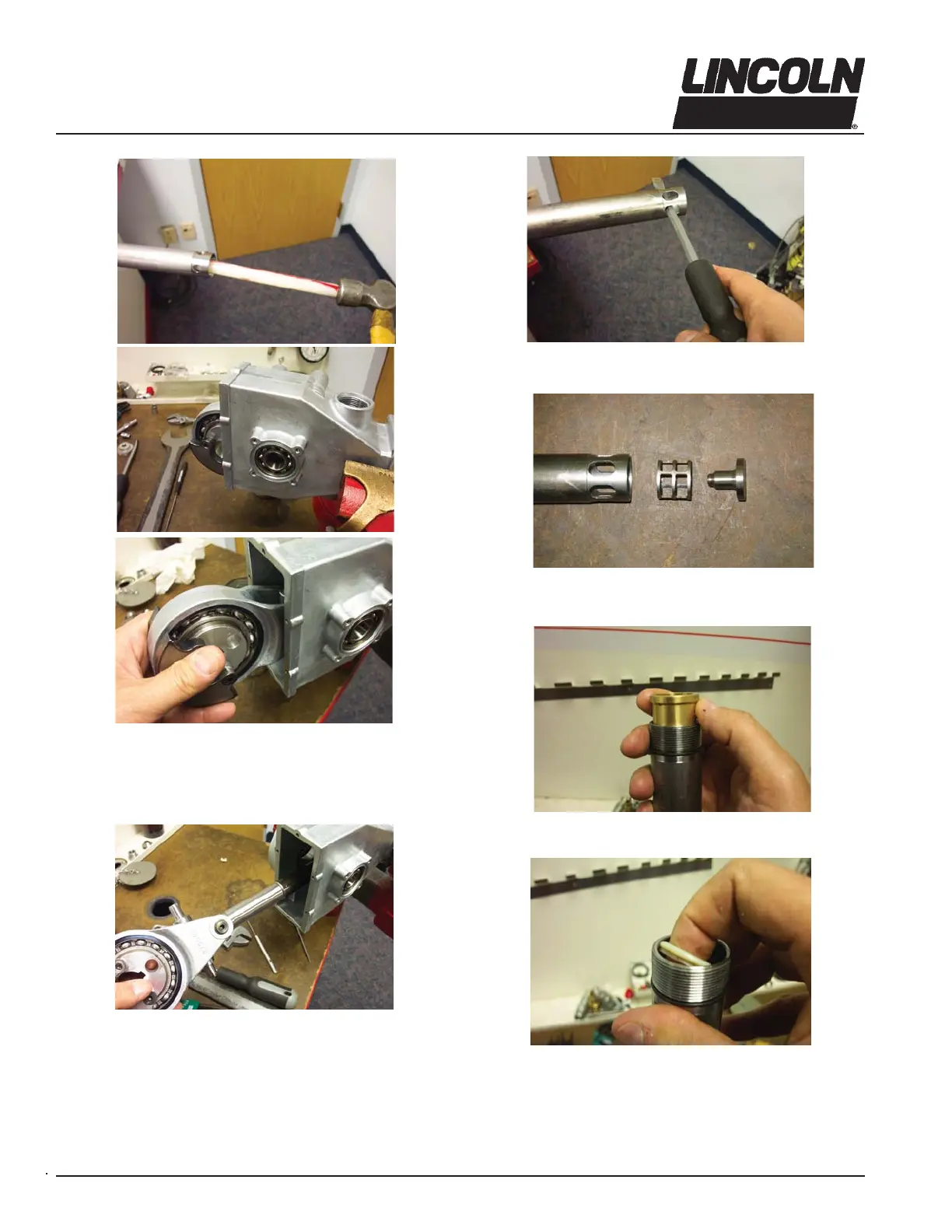

25. Push pump element (items 1 through 27) out of housing
tube with nylon rod included in tool kit (276275) and hammer.
(Reassembly recommendation: replace pump element in hous-
ing tube with housing tube slightly loose, then torque housing
tube (Item 56a) to pump housing (Item 73) to 20-25 Ft. Lbs.
26. Pull pump element free of housing.
27. Remove housing tube (Item 56a). (Reassembly Torque: 20
to 25 Ft. Lbs.(27.1 - 33.9 Nm).)
28. Exploded view of housing tube (Item 56a), spacer
(Item 56) and Shovel Plug (Item 58).
29. Remove bronze bushing (Item 52).
30. Remove oil seal O-ring (Item 53) and backup washer (Item
59). (Reassembly recommendation: replace O-ring seal and
EDFNXSZDVKHUEDFNXSZDVKHUPXVWEHSODFHGLQWXEH¿UVW
then the O-ring.)
