Page Number - 4
FlowMaster™ Rotary Driven Electric Pump
Form 402753

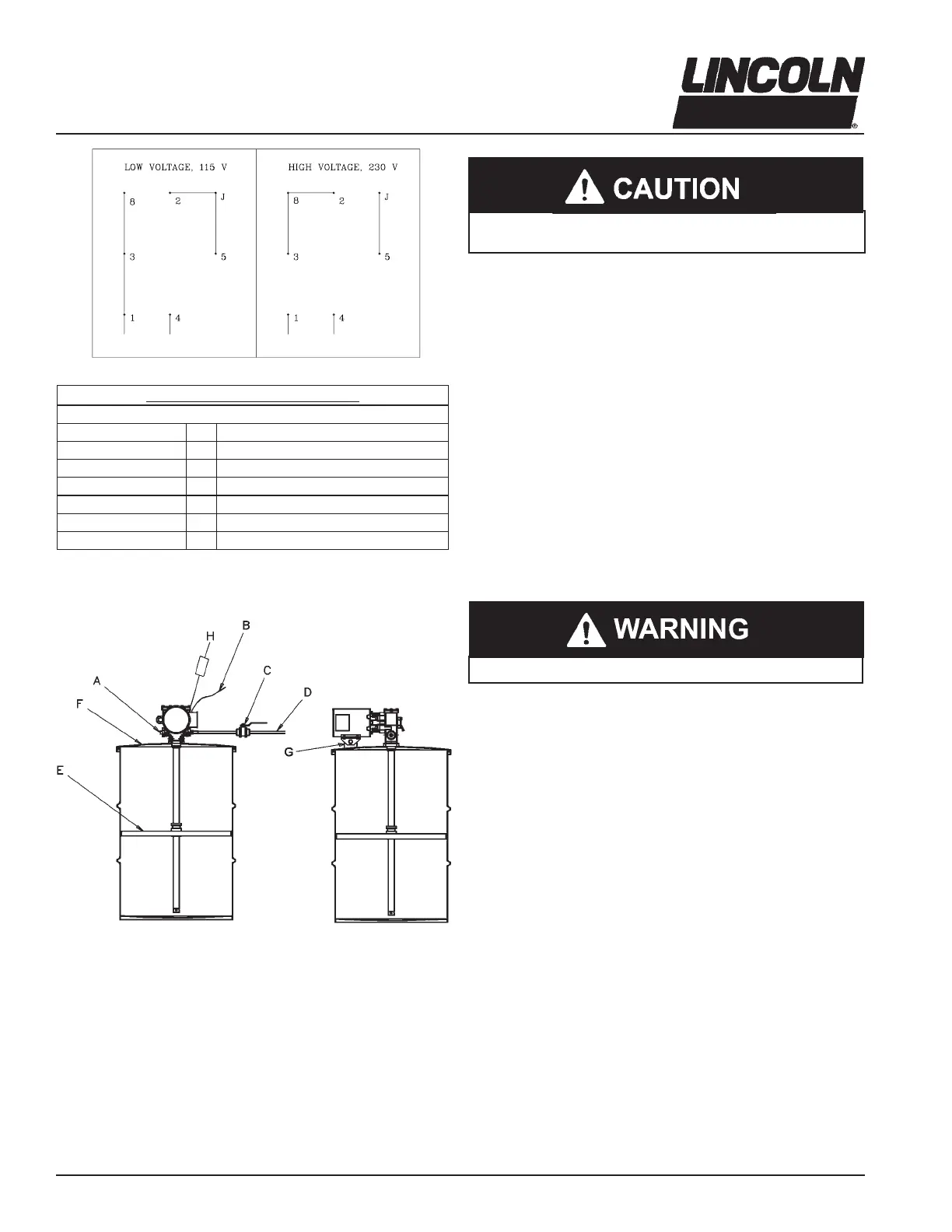

Illustration 4
A - Safety Unlader 272722
B -120 VAC or 230 VAC
C- Outlet Shut-off Valve
D - Material Supply Line
E - Follower Plate (85492 for 120 lb. drum only)
F - Drum Cover (85475 for 400 lbs., 85474 for 120 lbs.)
G - Auxillary Motor Mount
H - Field Installed Fuse
ELECTRIC FLOWMASTER PUMP
120 (230) VAC, 5:1 gear ratio, 85588 & 85589
BACK PRESSURE (PSI) RPM CURRENT DRAW (AMPS @ 120 (230) VAC)*
0 95 1 (.5)
1000 92 2.6 (1.3)
2000 92 3.7 (1.8)
3000 92 5.1 (2.5)
4000 92 6.5 (3.3)
5000 92 7.8 (3.9)
Operation
1. Remove the pump outlet line.
2. With the pump in a full container of lubricant, energize the
pump. Make sure all air has been expelled from the pump
DQGHYHQOXEULFDQWÀRZLVDFKLHYHG
3. Reattach the pump outlet line.
Never allow the pump to run dry of lubricant. Monitor the
VXSSO\OXEULFDQWOHYHODQGUH¿OOZKHQQHFHVVDU\
Maintenance and Repair
7RUHGXFHWKHULVNRIDQLQMXU\IURPLQMHFWLRQVSODVKLQJÀXLG
or moving parts, relieve hydraulic and outlet pressure before
servicing or repairing the pump.
$¿HOGLQVWDOOHGIXVHRIDPSV#9$&DPSV#
VAC) is recommended.
Always use Lincoln Industrial parts for service and repair.
Illustration 3
AC motor requires an auxillary mount. Do not operate the
pump without properly mounting the motor to the drum cover.
Crankcase Oil Service Interval Recommendations
Check the oil level after every 750 hours of machine opera-
tion, or every month.
Change the oil after every 2,000 hours of machine opera-
tion or every year.
Use SAE 10W30 motor oil in all units used in an ambient
temperature between 150 to -40°F. For ambient tempera-
tures between 50 to -70°F, use Mobil Arrow HFA Low
Temperature oil.
Oil level should be at the dot on the dipstick (middle of the
crankshaft) using 10W30 motor oil (15 oz.).
Illustration 2
