FlowMaster™ Rotary Driven Electric Pump
Maintenance and Repair
Form 402753

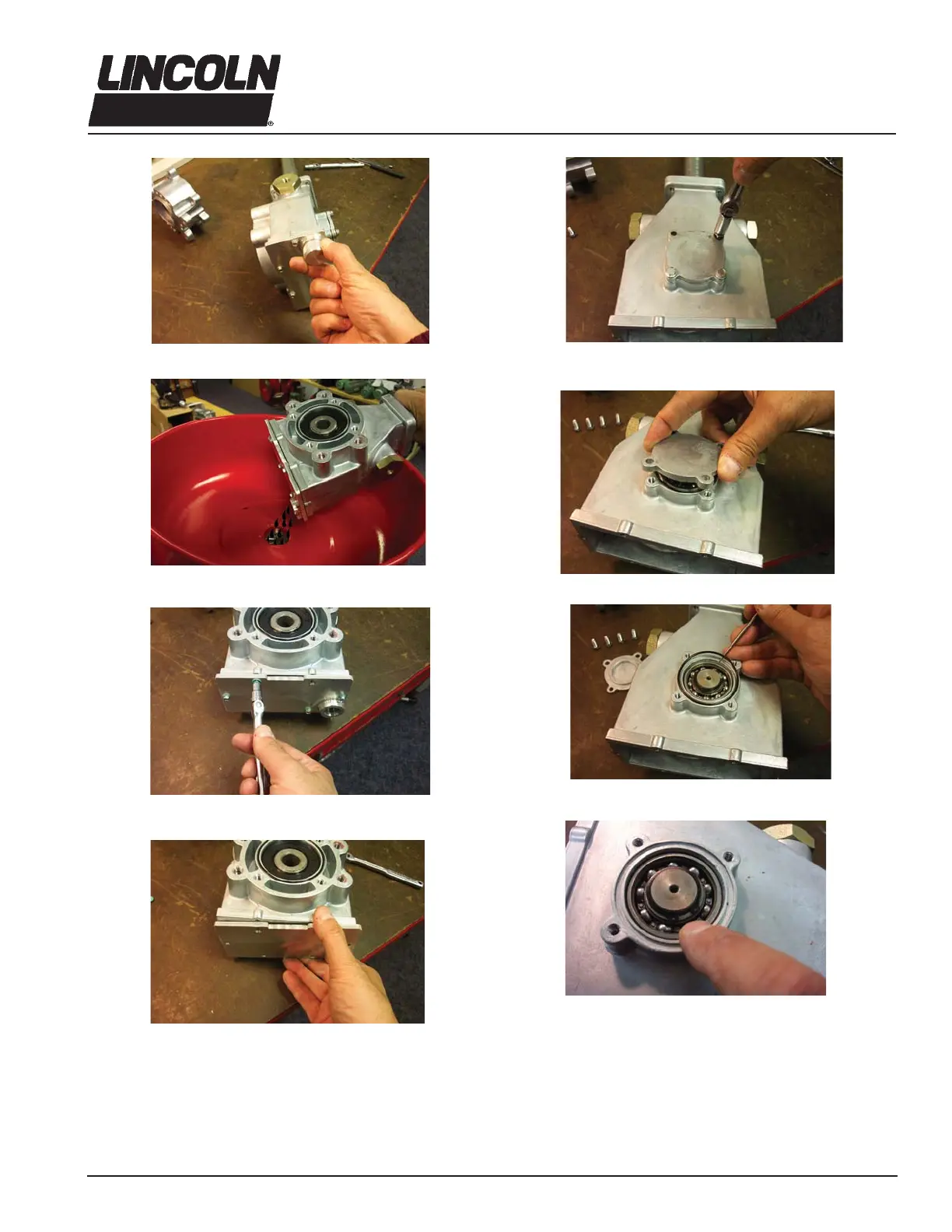

9. Drain oil (reassembly recommendations: use SAE 10W30
PRWRURLO¿OOHGWRGLSVWLFNPDUNR]
10. Remove housing cover screws (Item 28). (reassembly rec-
ommendations: replace screw gaskets(item 29))
11. Remove housing cover (item 30) and Gasket (Item 31).
(Reassembly recommendation: replace gasket)
12. Remove bearing cover screws (Item 66) with lockwashers
(Item 65). (Reassembly torque: 32-38 in. lbs. (3.6 - 4.3 Nm).)
13. Remove bearing cover (Item 64).
14. Remove bearing cover O-ring (Item 63). (Reassembly
recommendations: replace bearing cover O-ring.)
15. Note C-clip location on shaft (Item 62).
8. Remove dipstick (Item 30b).
