CounterTop - 1300 Series Ops Manual
5

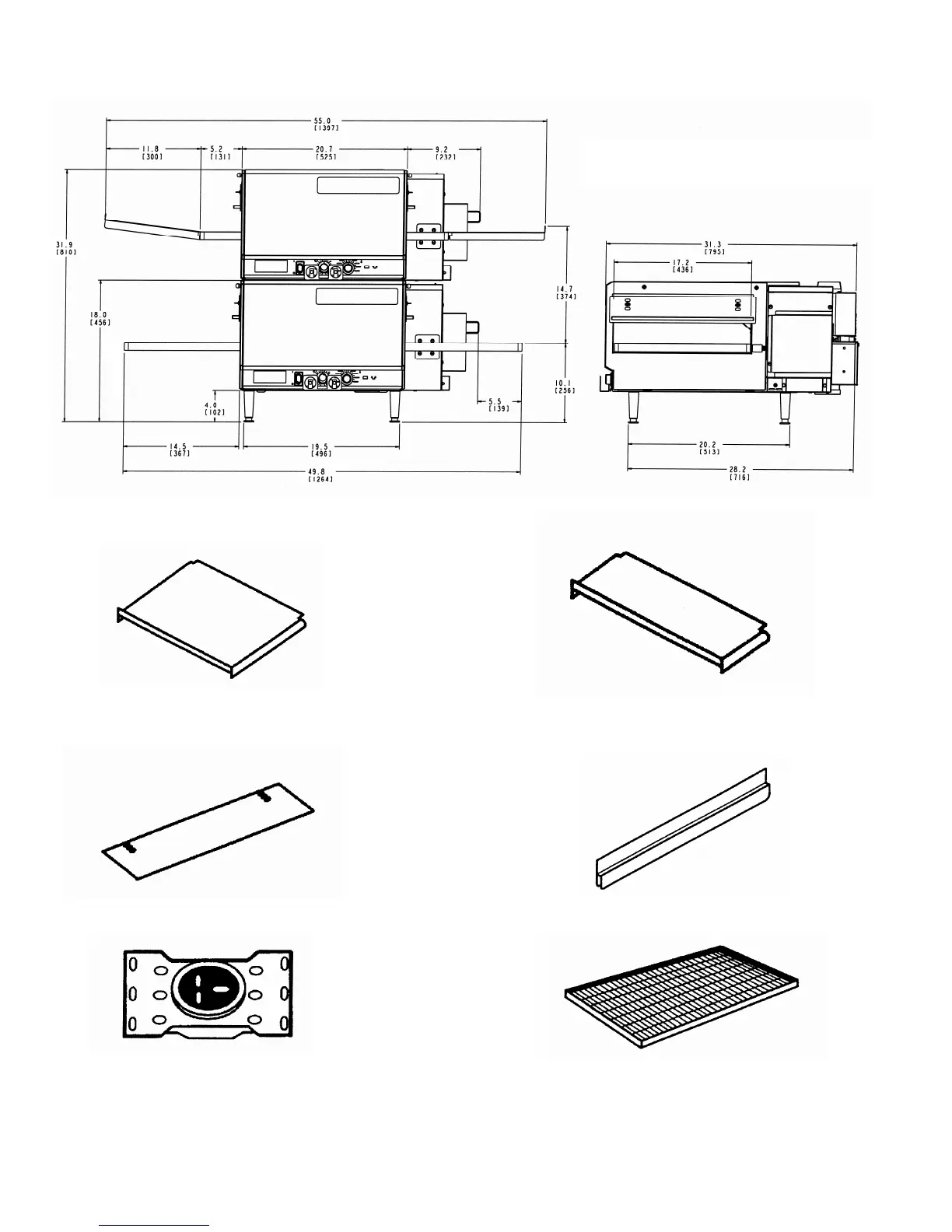

EXTERIOR DIMENSIONS IMPINGER
®
OVEN MODELS
OVEN ACCESSORIES
NOTE: Optional
Columnating Plates
listed on pages 15-16.
#1341 Exit Shelf – 12” Length
#1343 Entry Incline Shelf – 12” Length
#1342 Exit Shelf – 4” Length
#1344 Entry Incline Shelf – 4” Length
#1352 Extended Baffle, Inlet and Outlet #1345 Conveyor Endstop
#1950 Wall Receptacle NEMA 6-50 USA & Canada
(For Models 1301 & 1302)
#1346 Extended Conveyor 49 ¾” Length
#1353 Standard Conveyor 31” Length
We recommend entry and exit shelves on standard
length conveyor
Top oven shown with conveyor #1353
Bottom oven shown with extended conveyor #1346
