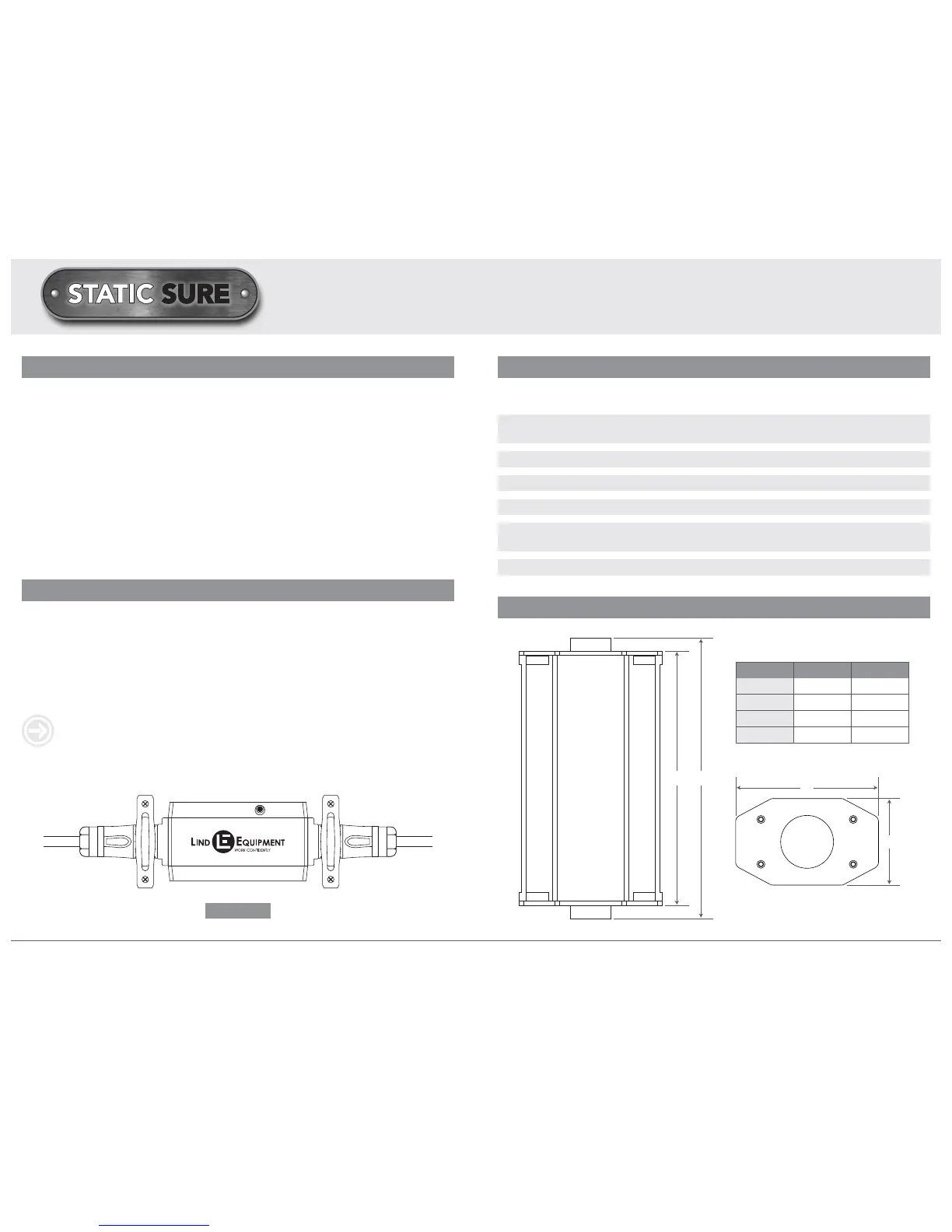

OPERATING MANUAL
It is important to properly maintain the StaticSure device in order to make sure that it
continues to operate effectively. You should undertake the following maintenance
steps on a regular basis:
+ Check that the connectors are free of dust, dirt and other substances and that
the pins are not broken or damaged.
+ Inspect the cable assemblies to ensure that the wire has not been damaged
or cut.
+ Inspect clamp spring pressure by opening and closing it to ensure that it offers
sufficient pressure to cut through any paint or rust that may be found on
equipment.
+ Inspect the points on the clamp to ensure they remain sharp and able to cut
though rust and paint to obtain metal to metal contact.
The LE600i StaticSure is a portable intrinsically safe device.
Approvals: cULus Hazardous locations Class I, Division 1, Groups A, B, C, D and
Class II, Division 1, Groups F, G
Temperature Code: T4
Ambient Temperature (Ta): -40°C≤Ta≤+50°C -40°F≤Ta≤+122°F
Resistance Setting: 10 Ohms
Life Expectancy: The battery is designed to last for approximately 3 - 4 years based
on average industry usage parameters
Environmental Rating: IP65
MAINTENANCE
While the LE600i StaticSure can be used as a portable device, the option of mounting
the unit is also offered.
The pair of U-clamps provided in the package allows the mounting of the StaticSure:
+ Place the U-clamp around the plug of the Static Sure as close to the frame
as possible.
+ Use the screws of your choice based on the surface to which you wish to mount
the unit (FIGURE 6).
Note: Screws are not supplied with the U-clamps.
+ Use spacers if necessary to reduce the distance between the mounting surface
and the clamp base to ensure that a secure and proper mounting is achieved.
MOUNTING
SPECIFICATIONS
DIMENSIONS
10 LIND EQUIPMENT LTD. T: 877.475.LIND www.lindequipment.net LIND EQUIPMENT LTD. T: 877.475.LIND www.lindequipment.net 11
FIGURE 6
A
B
D
C
ITEM #
A
B
C
D
CM
11.25
15.25
6.44
3.80
INCHES
4.43
6.00
2.53
1.49
