To Test
• Re-install input fuse.
• With the engine running the Green LED should be ON and power is applied to the
loads.
• Turn the engine OFF and the Green LED will ash at a 2 second rate to indicate that the
unit is timing out.
• The case cover shown below is optional. If used, install cover and secure on 2 sides with
supplied adhesive strips as shown.
Notes
1. The RSDT output will turn ON if the automobile battery is charged from an external
source. The output loads should be turned OFF when externally charging.
2. The low voltage detection circuit has a 10 second delay to avoid load disconnection
when starting the automobile.
3. This product has not been evaluated for its effects on equipment within emergency
vehicles.

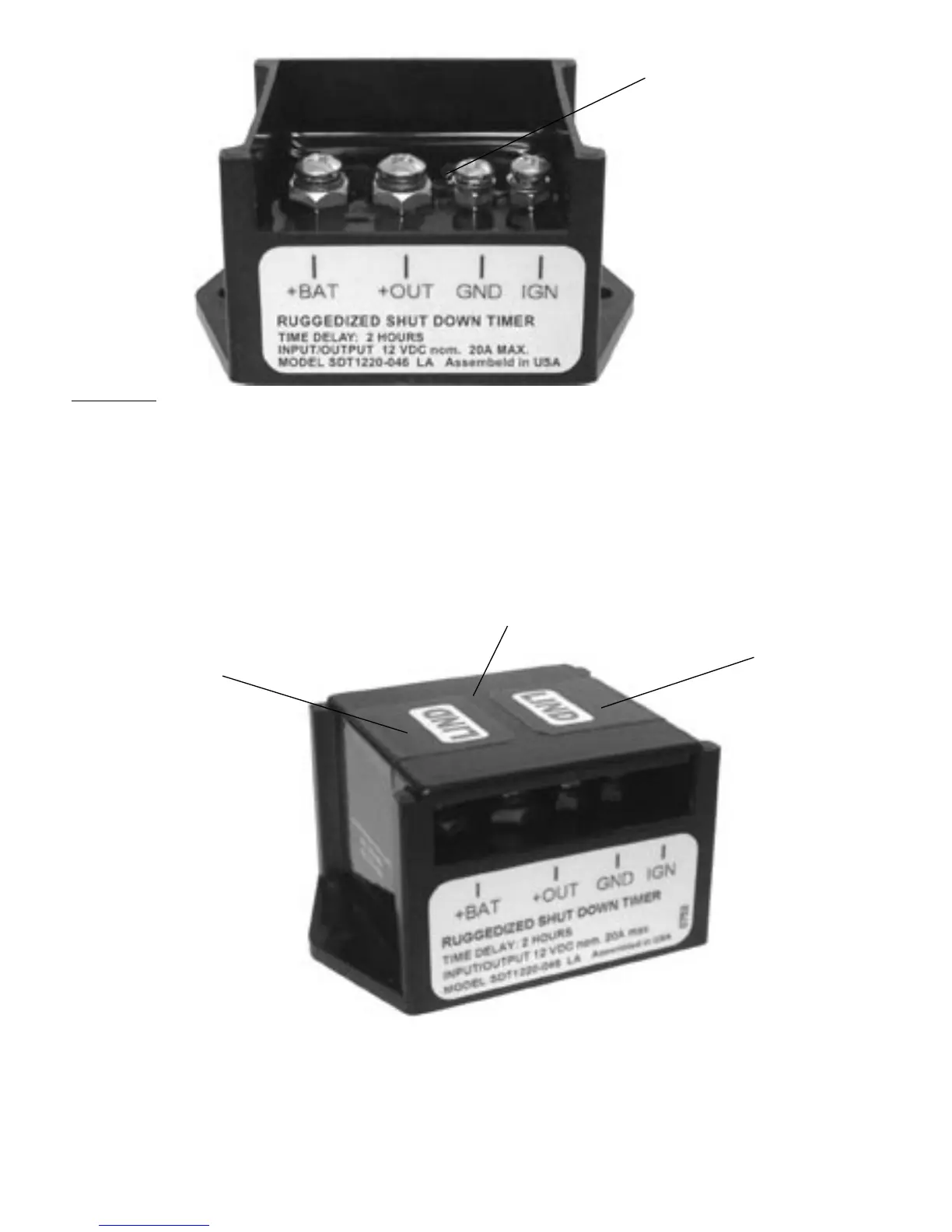

Adhesive strip
Adhesive strip
Cover
Green LED
