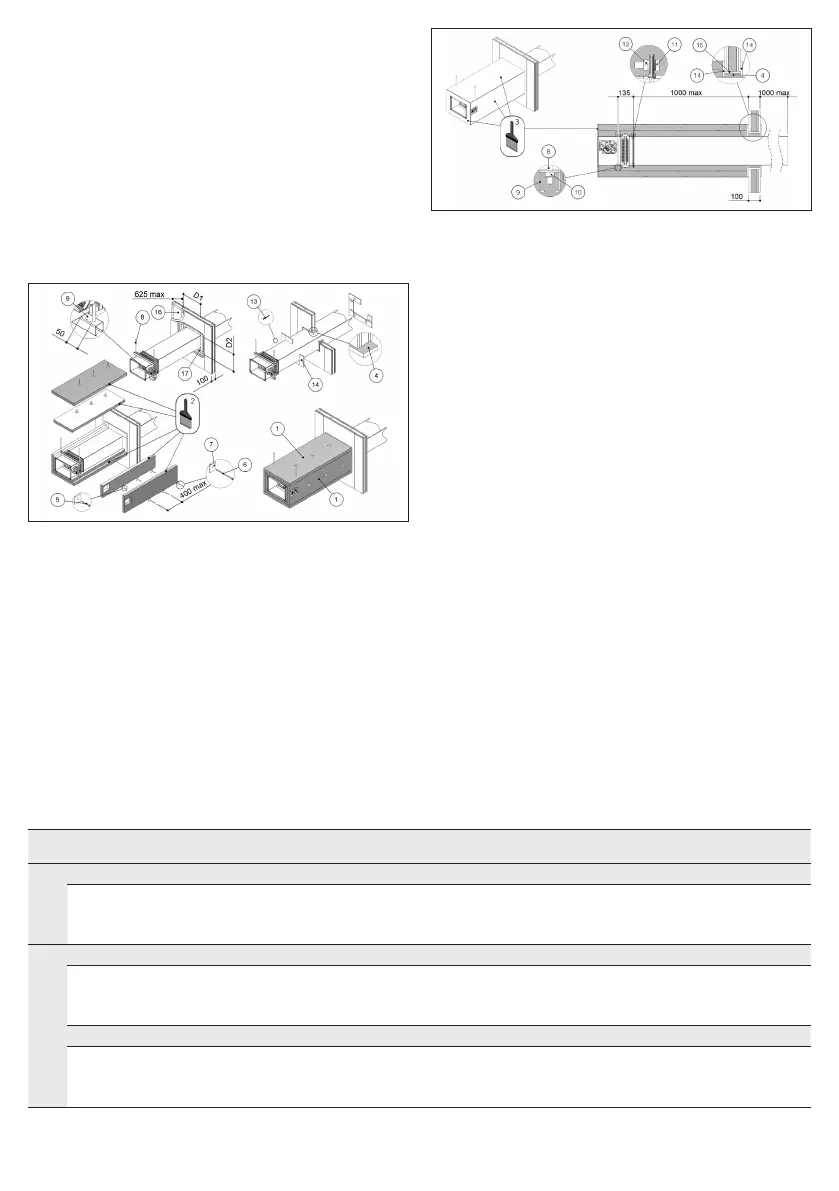

D1 Hole base: see table above
D2 Hole height: see table above
1. Rock wool panel 50 mm thick with 140 kg/m³ density.
2. PROMASTOP E PASTE or HILTI CFS-S ACR type sealant
3. PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish
4. Rock wool, 100 kg/m³, or mortar M-10, EN998-2 or plaster putty
5. Self-drilling screw Ø 5 X 60 mm
6. Self-drilling screw Ø 5 X 120 mm
7. Washer 40 x 40 mm
8. M10 threaded rod
9. C-shaped steel prole 10x41x41x41x10 mm
10. M10 nut
11. Screw Ø 6 X 20 mm
12. M6 nut
13. Self-drilling screw Ø 3,5 X 45 mm
14. Plasterboard inll panel, thickness 12,5 mm
15. Plasterboard inll panel, thickness 12,5 mm
16. Rock wool, 100 kg/m³
17. Metal frame
 Installations remote from the vertical wall with Fire Batt (Weichschott) sealing
Refer to the section Construction supports characteristics for further
information.
Comply with the minimum distances indicated on section Minimum
distances .
 Wall opening
A opening must be provided in the wall as indicated in the table and
in the drawing
 Damper positioning
Connect re damper to the galvanized steel duct as indicated in the
drawing.
Between re damper and wall the maximum distance is 1000 mm.
The maximum length of the part of duct connected to the damper
is 2100 mm
The re damper has to be xed and suspended from the ceiling as
indicated in the drawing.
The hanging structure is composed by:
– 2 C-shaped steel proles 10x41x41x41x10 mm
– 2 M10 threaded rods
– 4 M10 nuts
Position the threaded rods 135 mm from the connection between
re damper and duct and at a distance of 50 mm from the side of
the damper.
 Filling
Fill the space between the damper and the wall using Fire Batt
(Weichschott) sealing made from two rock wool panels with mini-
mum thickness of 50 mm and minimum density of 140 kg/m³.
Cover the duct over its entire length and re damper with 2 rock
wool panels 50 mm thick and with a density of 140 kg/m³.
The panels must be covered externally with endothermic varnish
type PROSTOP E PASTE or HILTI CFS-CT (minimum thickness of 1 mm)
and with an internal perimeter sealant type PROMOSTOP E PASTE or
HILTI CFS-S ACR (minimum thickness of 1 mm).
Fix rst layer of rock wool panel to the duct with screws Ø5 X 60 mm
and washers 40 X 40 mm, and the second one with screws Ø5 X 120
mm and washers 40 X 40 mm.
Fire resistance classication
Hole size “D1 x D2”
[mm]
Wall minimum thickness “S”
[mm]
Sealing
Rigid wall
Installation remote from the vertical rigid wall with Fire Batt (Weichschott) sealing
Wall minimum density 550 kg/m³
EI 120 S
(300 Pa)
EI 90 S
(500 Pa)
(B+800 max) x (H+800 max) 100
Rock wool 140 kg/m³ and
endothermic varnish sealing
Flexible wall
Installation remote from vertical light wall (plasterboard) with Fire Batt (Weichschott) sealing
Wall rock wool minimum density 100
kg/m³
EI 120 S
(300 Pa)
EI 90 S
(500 Pa)
(B+800 max) x (H+800 max) 100
Rock wool 140 kg/m³ and
endothermic varnish sealing
Installation remote from vertical light wall (gypsum blocks) with Fire Batt (Weichschott) sealing
Wall minimum density 995 kg/m³
EI 120 S
(300 Pa)
EI 90 S
(500 Pa)
(B+800 max) x (H+800 max) 100
Rock wool 140 kg/m³ and
endothermic varnish sealing
