Actuator BELIMO - 15Nm BEN 24(-ST) BEN 24-SR BEN 230
Power voltage
AC/DC 24V
50/60Hz
AC/DC 24V
50/60Hz
AC 230V
50/60Hz
Power consumption
- in operation
- in the end position
3W
0,1W
3W
0,3W
4W
0,4W
Dimensioning 6VA (Imax8,2 A @ 5ms) 6,5 VA (Imax8.2 A @ 5ms) 7VA (Imax4 A @ 5ms)
Protection class III III II
Degree of protection IP 54
Adjustment time for 95° < 30s
Ambient temperature
Storage temperature
-30°C … +55°C
-40°C … +80°C
Connection
- drive
- auxiliary switch
Cable 1m, 3x0,75mm
2
Cable 1m, 6x0,75mm
2
(BEN 24-ST) with plug connectors
Cable 1m, 4x0,75mm
2
Cable 1m, 6x0,75mm
2
Cable 1m, 3x0,75mm
2
Cable 1m, 6x0,75mm
2

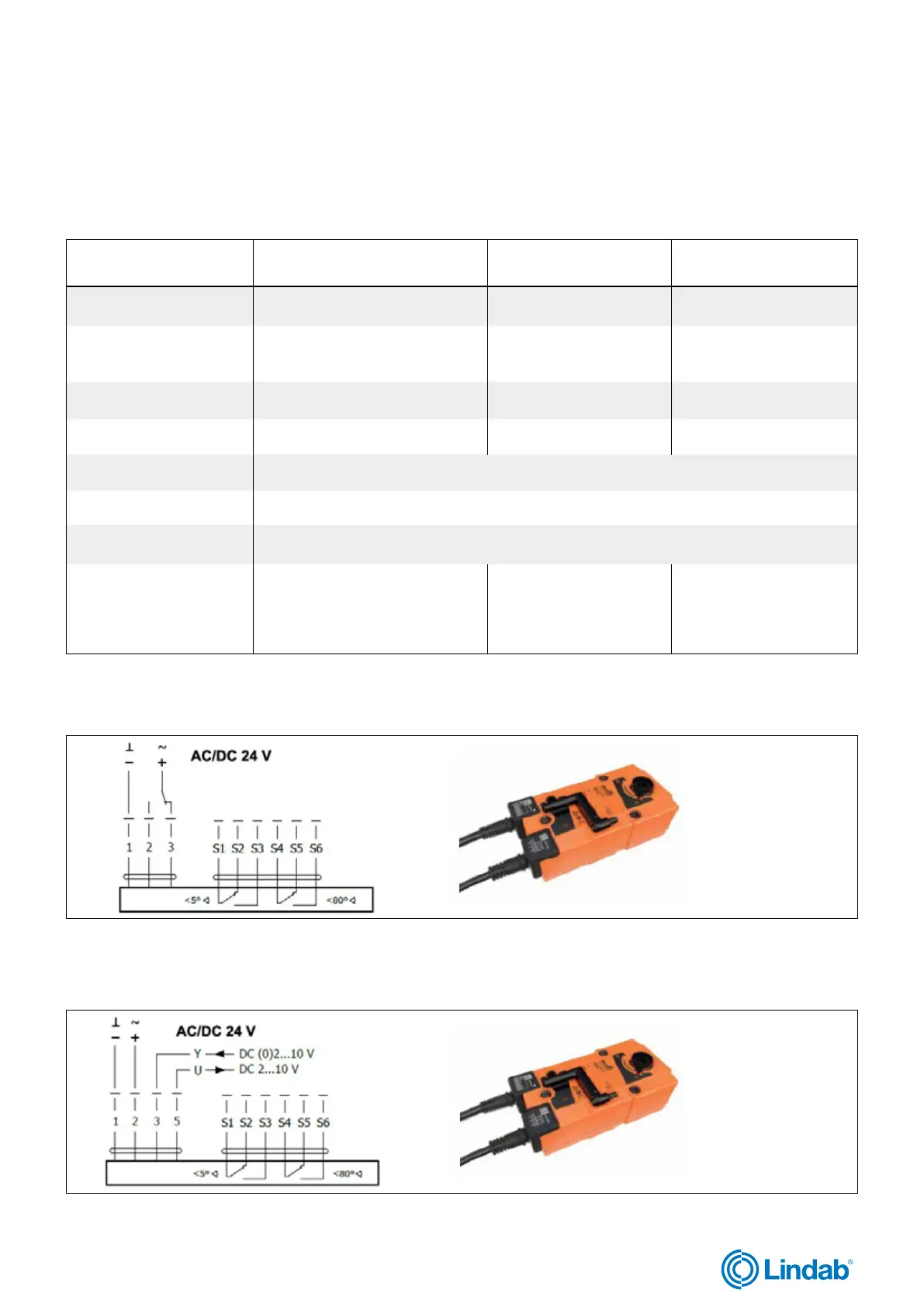

Fig. 3 Actuator BELIMO BEN 24-SR
lindab | we simplify construction
Smoke Control Damper SDJR-S
Lindab reserves the right to make changes without prior notice
Last modified: 2021-09-03
Rev: 2021-03-26
Fig. 2 Actuator BELIMO BEN 24(-ST)
Tab. 2.1.1. Actuator BELIMO BEN 24(-ST), BEN 24-SR, BEN 230
