 Technical data (Transfer Application)

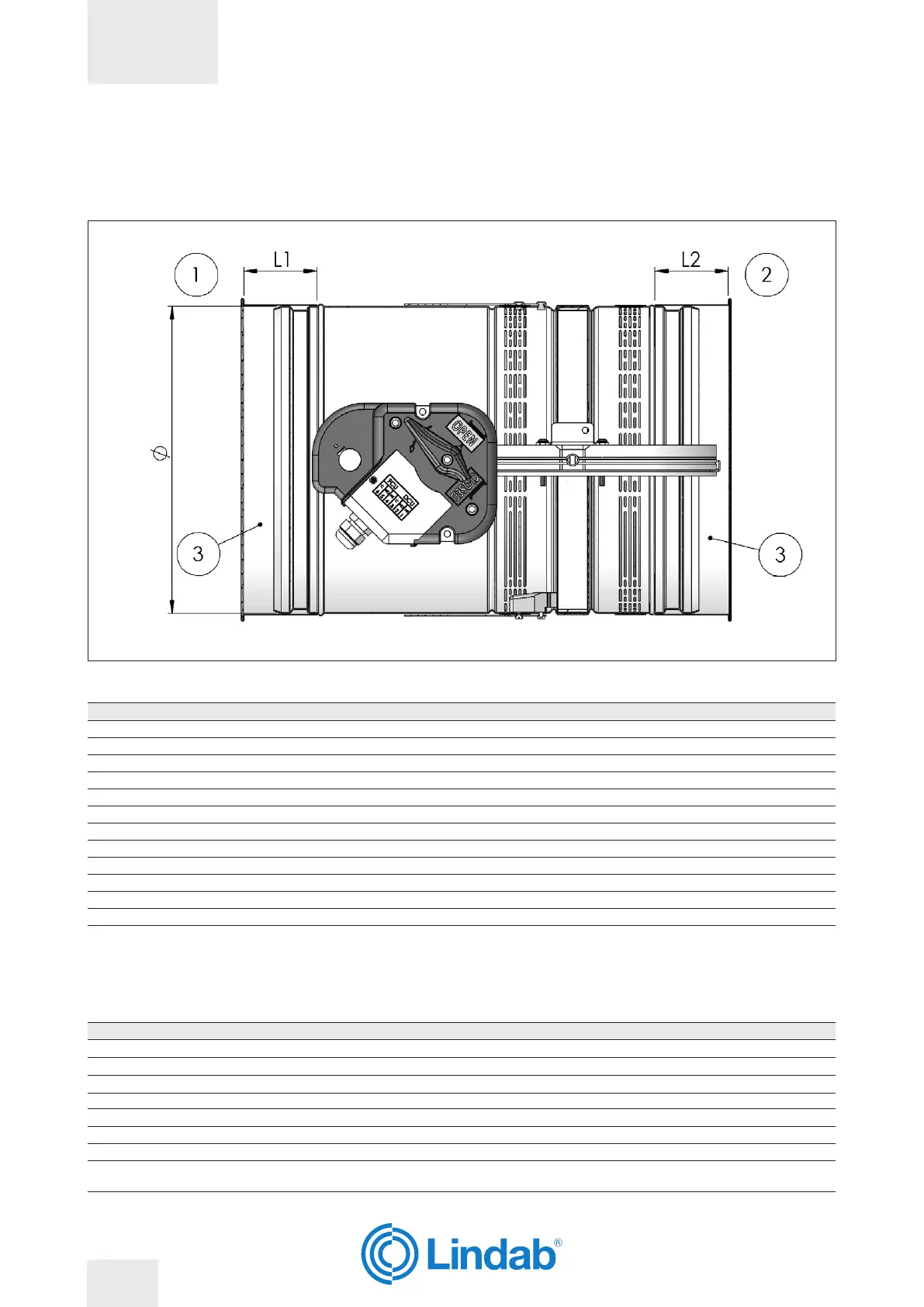

1. Mechanism side
2. Mechanism opposite side
3. End cap with mesh
L1 End cap length mechanism side
L2 End cap length mechanism opposite side
Ø Fire damper nominal diameter
Length of end cap with mesh depending on re damper diameter Ø.
Ø L1 L2
100 40 40
125 40 40
140 40 40
150 40 40
160 40 40
180 40 40
200 40 60
224 40 40
250 60 80
280 60 100
300 60 100
315 60 120
Ø Fire damper nominal diameter
L1 End cap length mechanism side
L2 End cap length mechanism opposite side
 How to order (transfer Application)
Code
Type
EPNF End cap with mesh
Diameter
XYZ Nominal diameter dimension (mm)
Length
XYZ Length dimension (mm)
Examples Code
End cap with mesh length 80 mm for re damper Ø100 not connected to air ducts on mechanism side EPNF10040
End cap with mesh length 60 mm for re damper Ø200 not connected to air ducts on mechanism opposite side EPNF20060
End caps with mesh length 60 mm (mechanism side) and length 120 mm (mechanism opposite side) with mesh for re damper
Ø315 not connected to air ducts on both sides
EPNF31560
EPNF315120
