Lindab WH25 - Page 27

INSTALLATION
WH25
LINDAB SAFE
27/50
D Hole size: see table above
S Wall minimum thickness: see table above

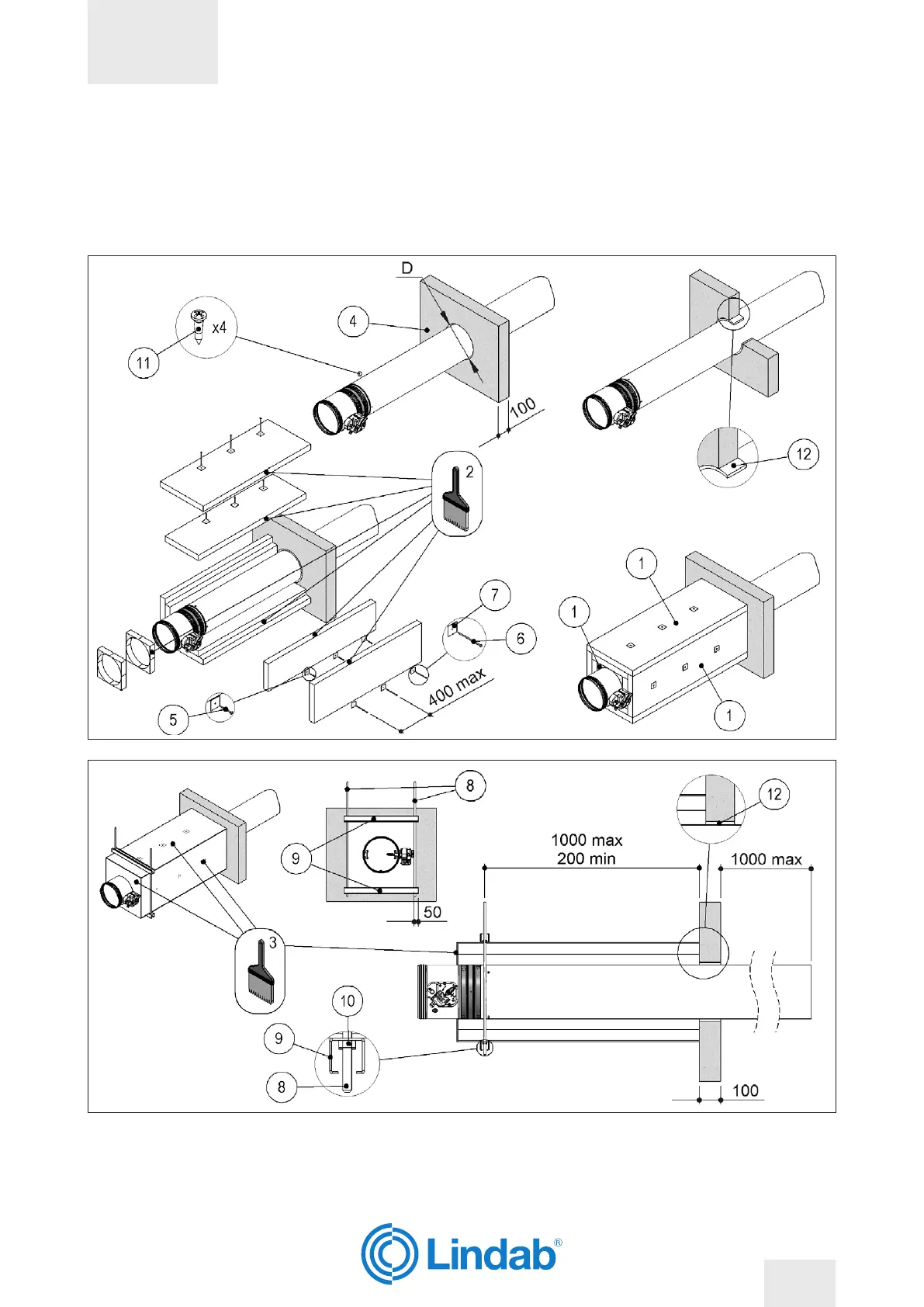

1. Rock wool panel 50 mm thick with 140 kg/m³ density.
2. PROMASTOP E PASTE or HILTI CFS-S ACR type sealant
3. PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish
4. Vertical wall
5. Self-drilling screw Ø 5 X 60 mm
6. Self-drilling screw Ø 5 X 120 mm
7. Washer 40 x 40 mm
8. M10 threaded rod
9. C-shaped steel prole 10x41x41x41x10 mm
10. M10 nut
11. Self-drilling screw Ø 4,2 X 13 mm
12. Mortar M-10, EN998-2 or plaster putty
WH25
27/50
LINDAB SAFE
