INSTALLATION
WH25
LINDAB SAFE
29/50

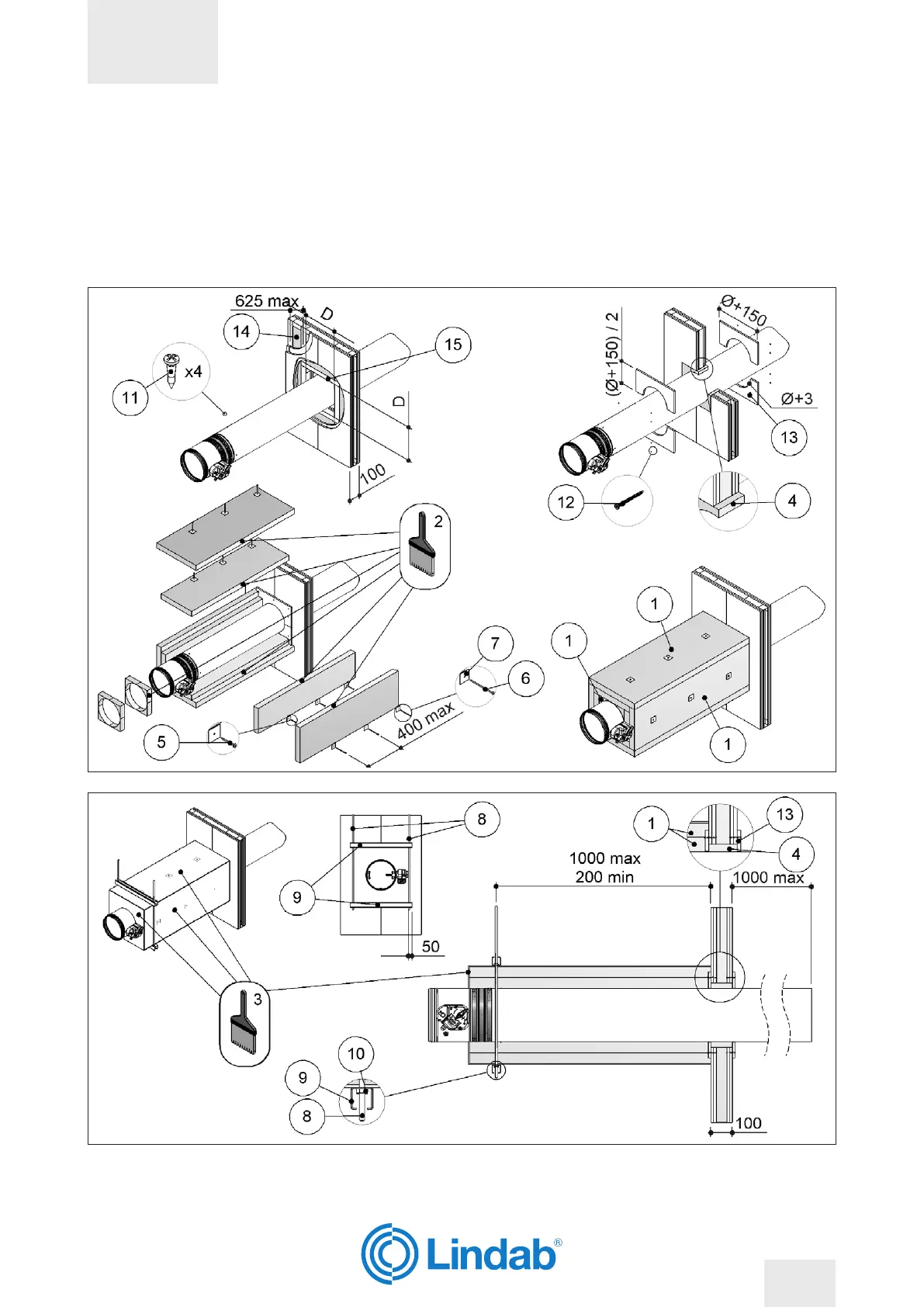

D Hole size: see table above
S Wall minimum thickness: see table above
1. Rock wool panel 50 mm thick with 140 kg/m³ density.
2. PROMASTOP E PASTE or HILTI CFS-S ACR type sealant
3. PROMASTOP E PASTE or HILTI CFS-CT endothermic varnish
4. Rock wool, 100 kg/m³, or mortar M-10, EN998-2 or plaster putty
5. Self-drilling screw Ø 5 X 60 mm
6. Self-drilling screw Ø 5 X 120 mm
7. Washer 40 x 40 mm
8. M10 threaded rod
9. C-shaped steel prole 10x41x41x41x10 mm
10. M10 nut
11. Self-drilling screw Ø 4,2 X 13 mm
12. Self-drilling screw Ø 3,5 X 45 mm
13. Plasterboard inll panel, thickness 12,5 mm, for rock wool sealing
14. Rock wool density up to 80 kg/m³ (optional)
15. Metal frame
