Section 5
Page 9
Service Training
RP01 / Chapter 1
115 804 2401.1000

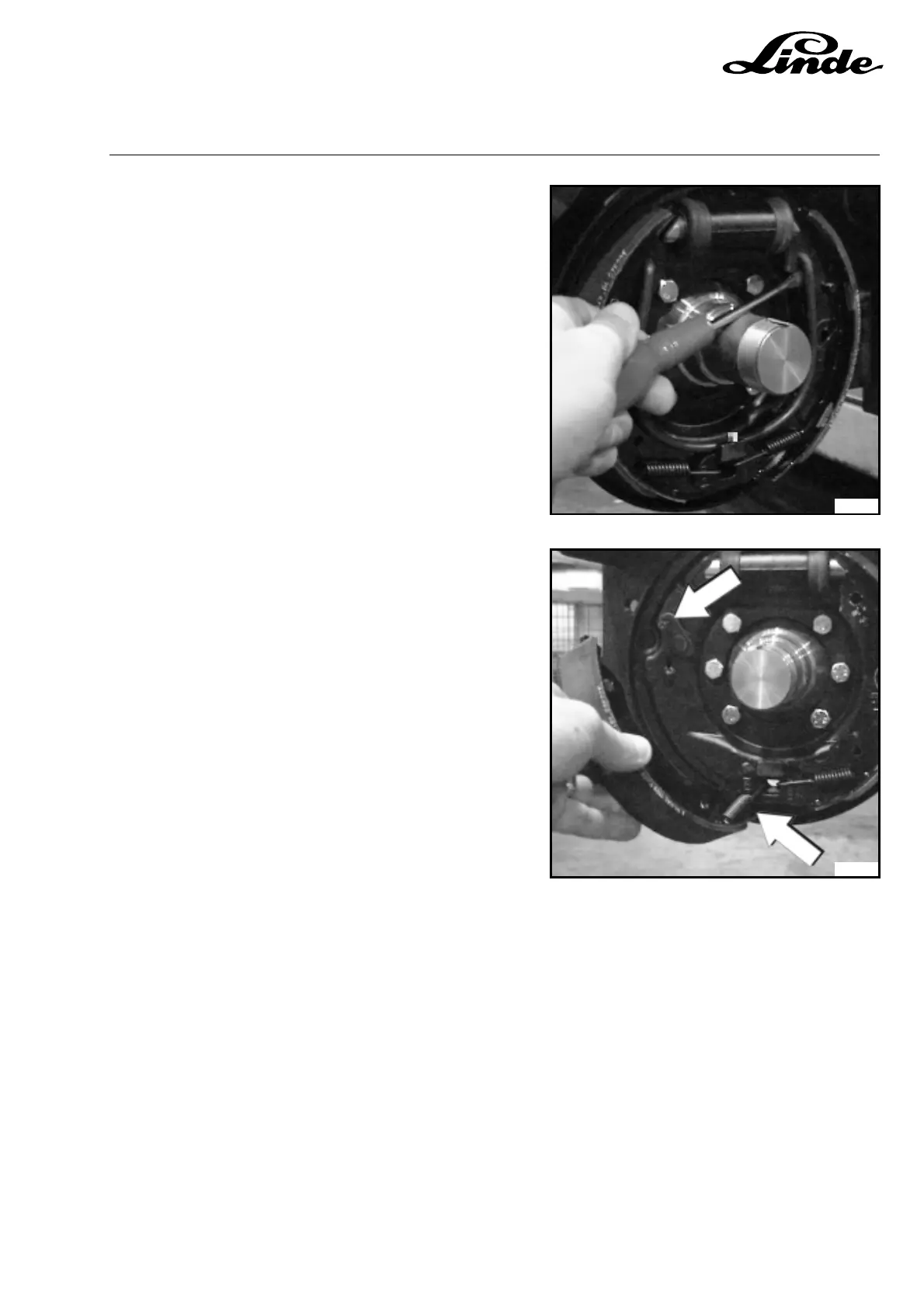

- Using a suitable lever, prise one side of the return spring
from the brake shoe and remove.
115_05-12
- Pull brake shoe outwards and release from self adjust-
ing mechanism and slave cylinder slots. Unhook the
tension spring and remove shoe. Repeat procedure for
other shoe
- Prevent inadvertent ejection of the pistons by restrain-
ing them with soft wire, or an elastic band, around the
slave cylinder body. Take care not to damage the
rubber boots.
- Remove all dust and dirt from the backplate.
115_05-12
The brake shoes should be renewed if the linings are contaminated with lubricants or hydraulic fluid
irrespective of the state of wear.
Check for signs of leakage from the wheel cylinders. Inspect the boots, also examine metal brake pipes
for wear, damage or corrosion and pull-off springs for damage or overstretching and replace as necessary.
Do not attempt to remove the adjusters from the backplate, if faulty a new backplate will be required.
Other than hydraulic parts, metal to metal contact points should be lightly coated with a high melting point
grease that is shoe tips, the areas where the shoe platform seats against backplate, the wheel cylinder
abutment slots.
DO NOT allow grease to contaminate the shoe linings, rubber parts and the friction surface of the brake
drum.
