Service Training
Section 4.9
Page 22
12.05
INSTALLING THE IGNITION CONTROL UNIT
NOTE: Prior to installing the ignition control unit, set
cylinder 1 of the internal combustion engine at
top dead centre on the compression stroke.

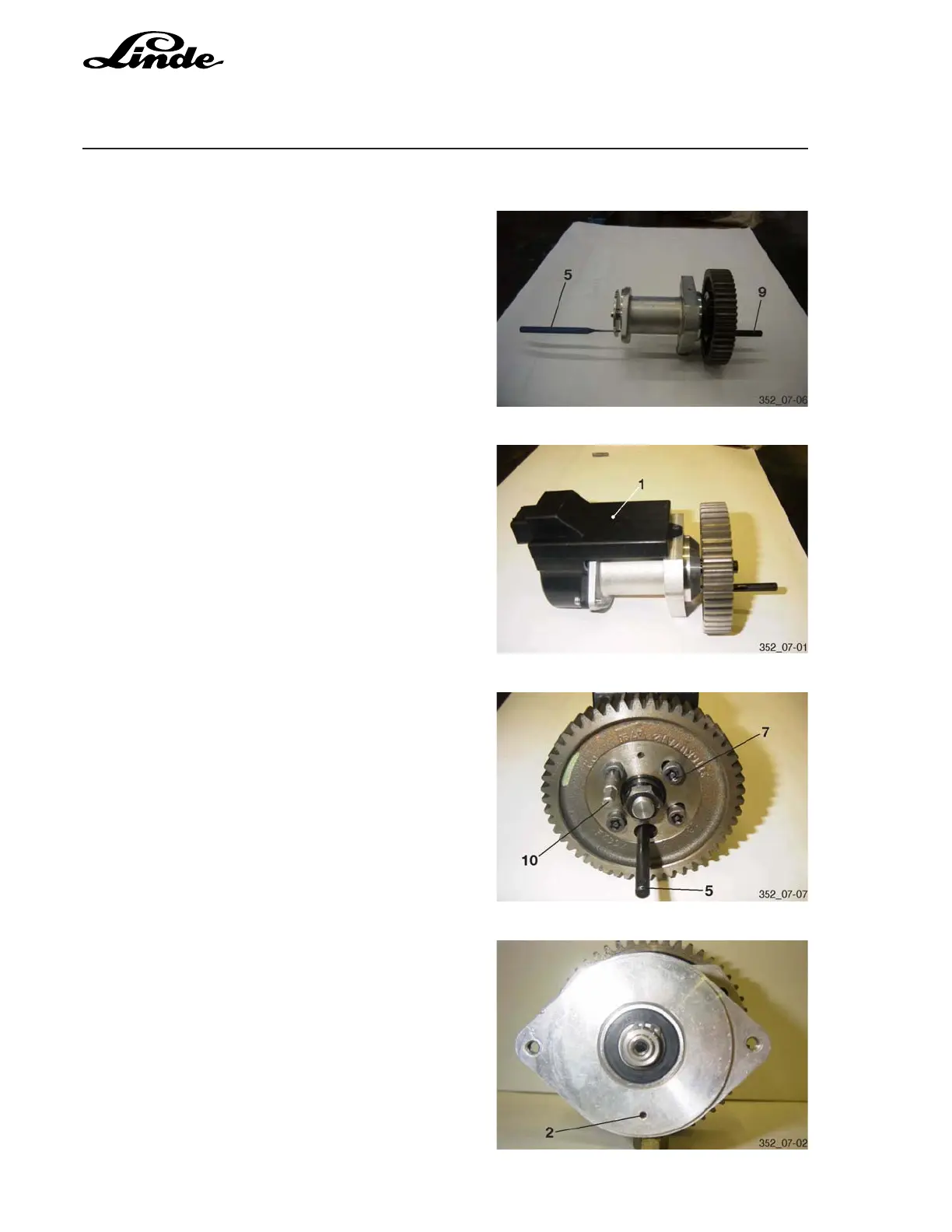

- Push timing pin (9) through the recess in the hub into the
hole in the housing.
- Check by inserting the 3mm timing pin (5) through the
toothed disc into the housing.
- Check the O-ring on the flange and replace, if neces-
sary.
- Place the ignition control unit (1) in the mounting posi-
tion. Be sure to push the pin through the slot in the gear
wheel.
- Fasten the flange by means of the M8 nuts and tighten
the nuts to 22 Nm.
- Push the gear wheel against the hub and fasten the gear
wheel with the help of the special screws (7). Tighten the
screws to 28 Nm.
- Withdraw the timing pin.
- Mount the timing case cover.
- Install the connector of the ignition control unit.
