Section 6
Page 53
Service Training

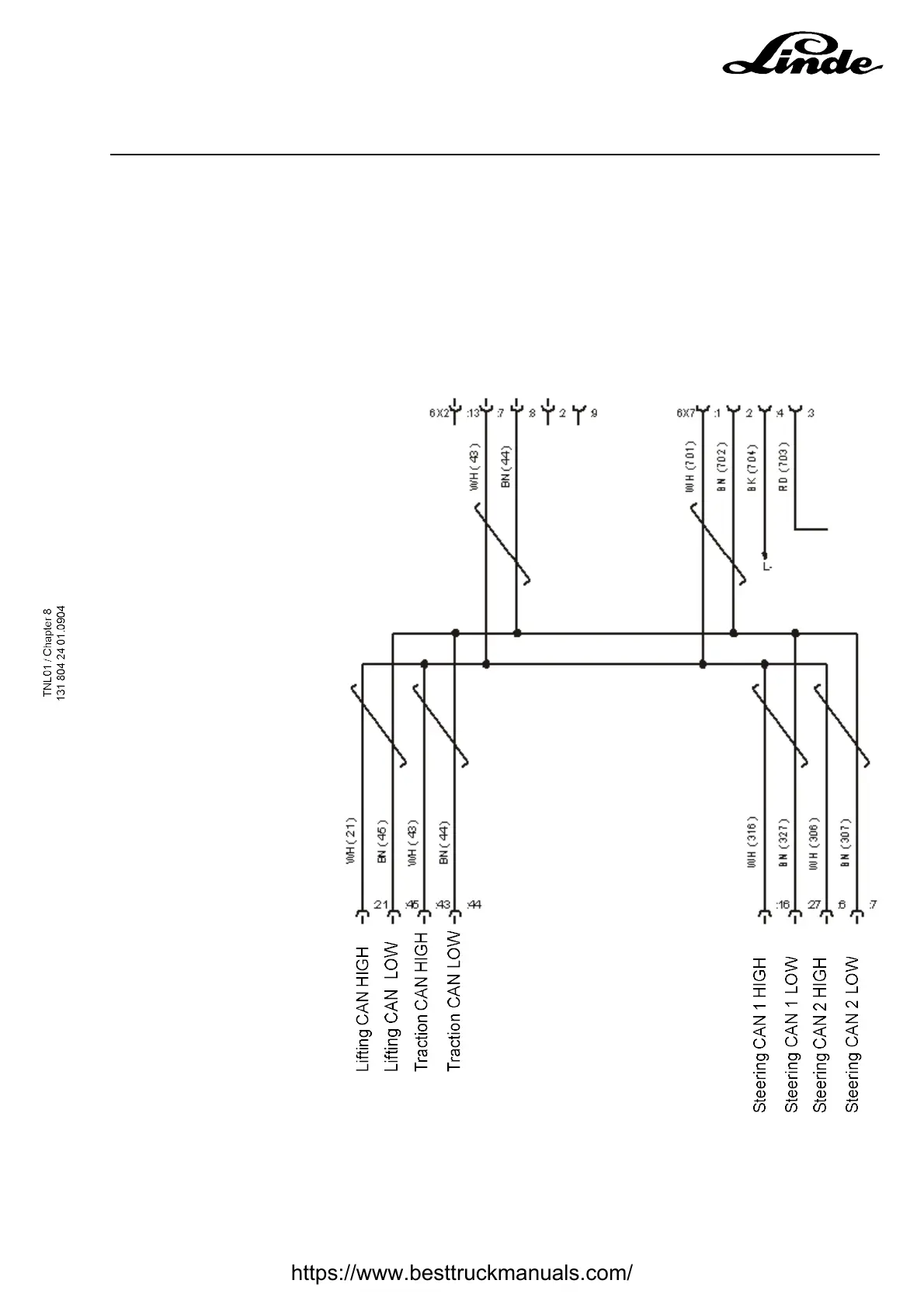

The CAN BUS network between the different controllers is equipped with two lines «CAN HIGH», «CAN
LOW» and two resistances of 120 Ohms mounted in parallel and located in the LAC (start of CAN
network) and in the display (end of CAN network).
The ohmic value measurable on the diagnostics connector is 60 Ohms, the value is measured between
the CAN high and the CAN low.
Display
PC
connector
LAC
LES
