LINDY CPU Switch Smart Installation and Use Page 29
channel if it receives the same command on its serial interface. Consequently, by
linking the serial interfaces a master unit may be made to automatically switch a
daisy chain of slaved units as shown in the diagram below. The slave units will
require the optional power adapters because they cannot draw their power from the
video link alone.

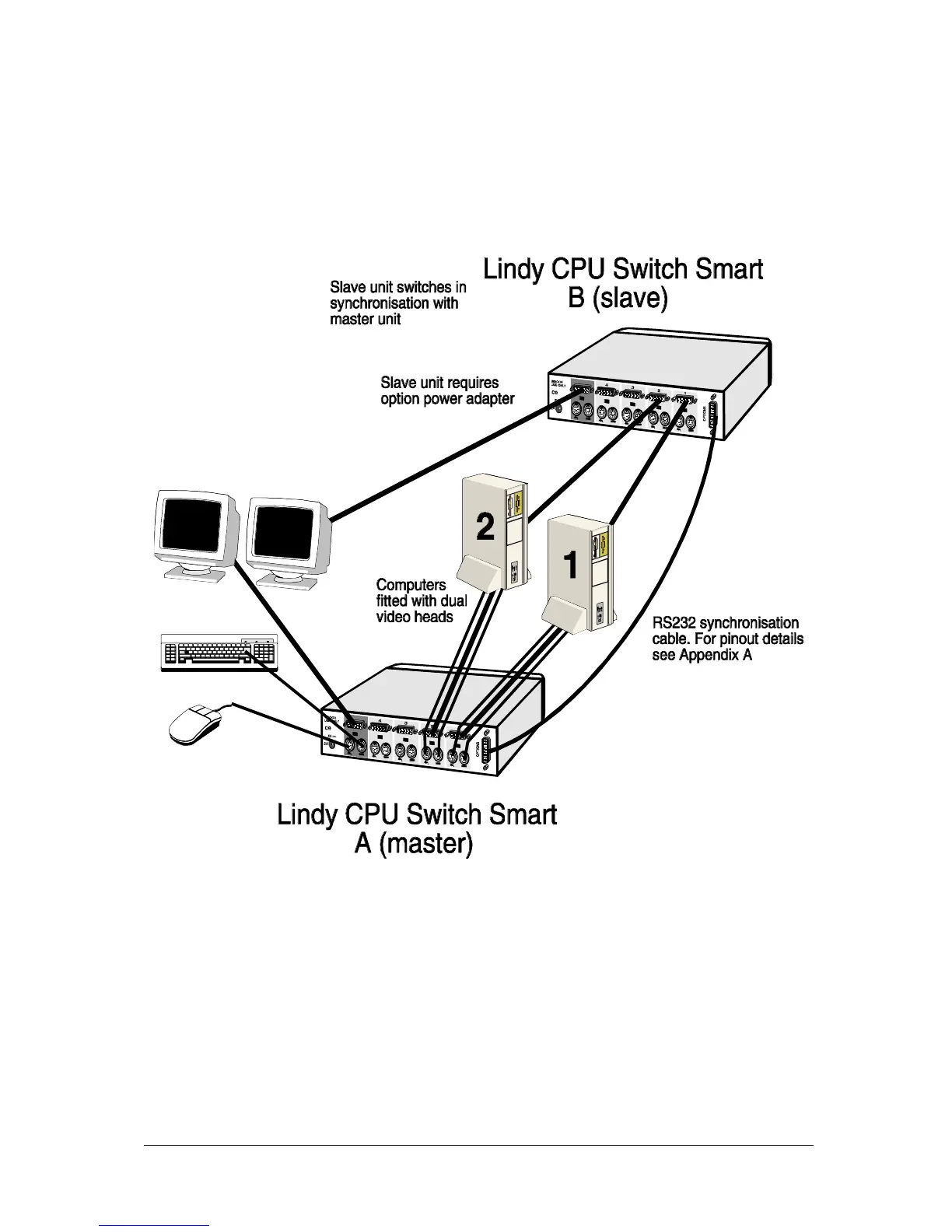

Synchronised LINDY CPU Switch Smarts used for a dual head video switching
application
