LINDY CPU Switch Smart Installation and Use Page 42
A.4 Flash upgrade cable connection

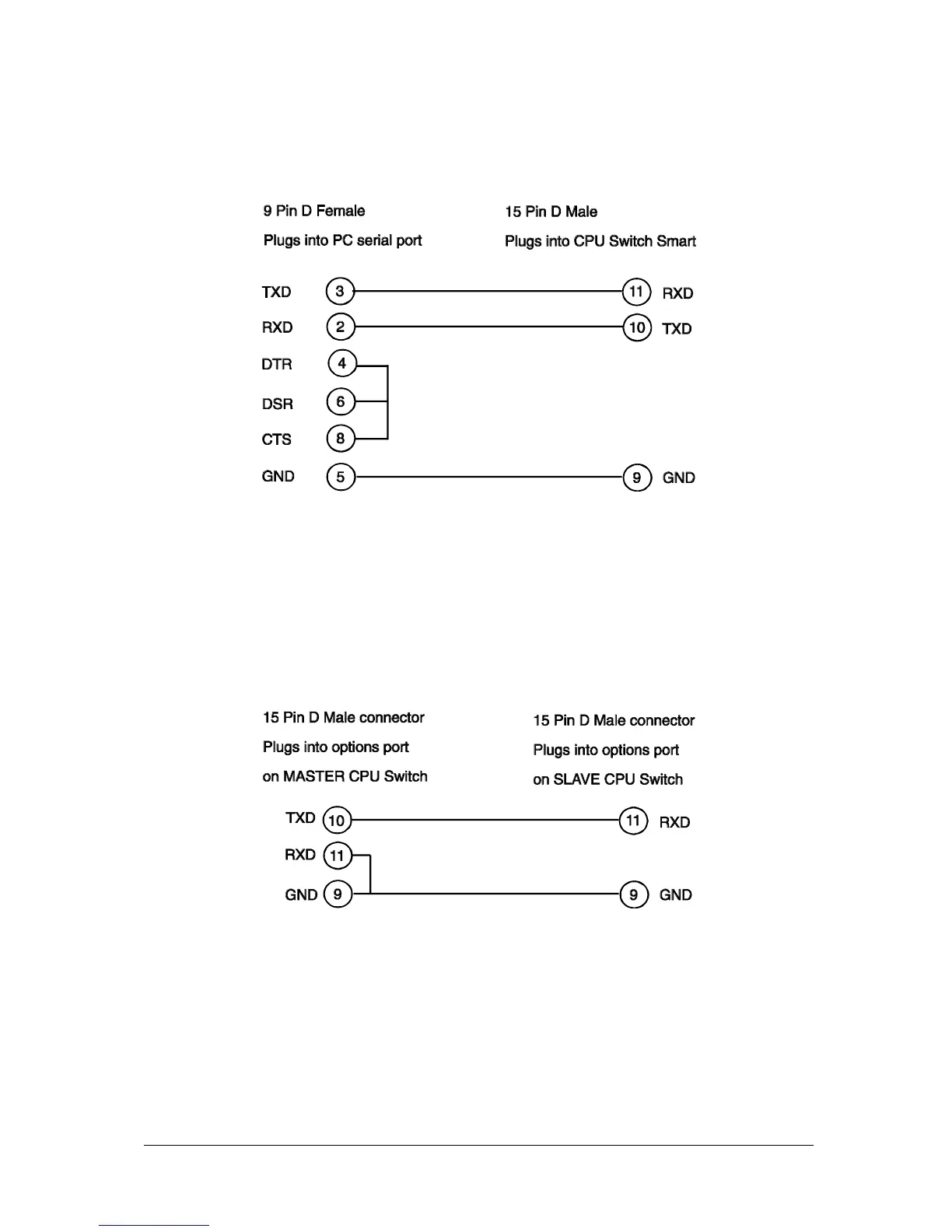

The cable connections shown below are to connect either COM1 or COM2 of a PC
to the LINDY CPU Switch Smart to allow flash upgrades.
A.5 RS232 synchronisation cable pin assignments
The cable connections shown below are to connect two LINDY CPU Switch Smarts
together for synchronised operation (see section 3.8)
