Line 6 Mechanical Engineering
FloorJam F8-1 Complete Unit
Assembly Instructions Rev B
Document # L6D000184
Confidential Page 6 of 22 5/23/2008

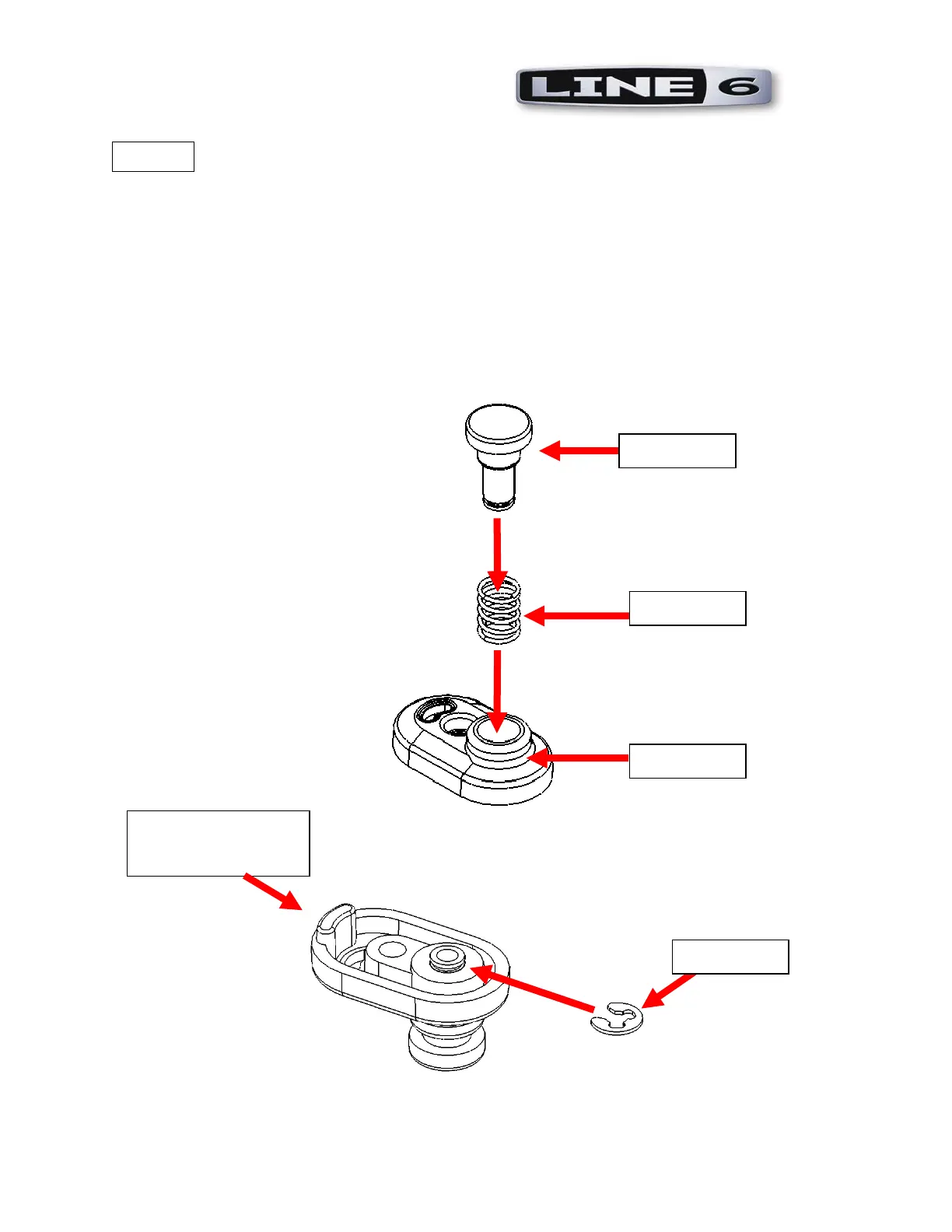

STEP 4
P/N required:
1 each 30-51-0290 FOOTSWITCH BASE
1 each 30-51-0291 FOOTSWITCH PLUNGER
1 each 30-51-0293 FOOTSWICH SPRING, LARGE
1 each 30-51-0295 E-CLIP
Insert the FOOTSWITCH PLUNGER and the FOOTSWICH SPRING, LARGE into the large
hole in the FOOTSWITCH BASE. Push the FOOTSWITCH PLUNGER all the way through the
FOOTSWITCH BASE and secure it with the E-CLIP.
30-51-0290
30-51-0290
(BOTTOM VIEW)
30-51-0291
30-51-0293
30-51-0295
