Line 6 Mechanical Engineering
FloorJam F8-1 Complete Unit
Assembly Instructions Rev B
Document # L6D000184
Confidential Page 17 of 22 5/23/2008
STEP 11 continued
P/N required:
4 each 30-00-0043 SCREW 6-32 x 5/16 w/LK WASH PPZ STL
2 each 30-12-8415 STANDOFF HEX .250 6-32 M-F 11/32 INCH
Torque the SCREWS to 8 – 10 inch-pounds.
Torque the STANDOFF to 6 – 8 inch-pounds.

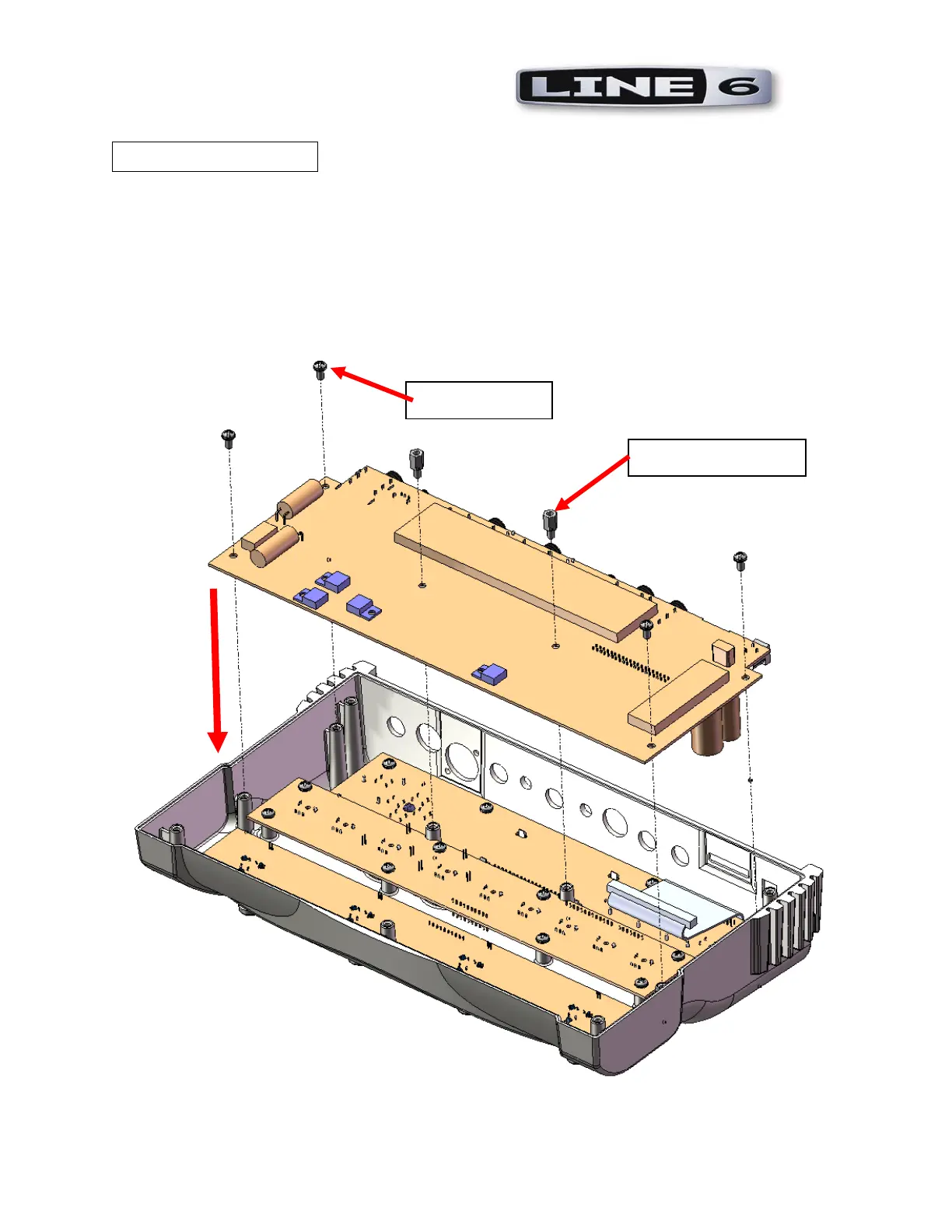

2x STANDOFF
4x SCREW
