Line 6 SPIDER V Series User Manual

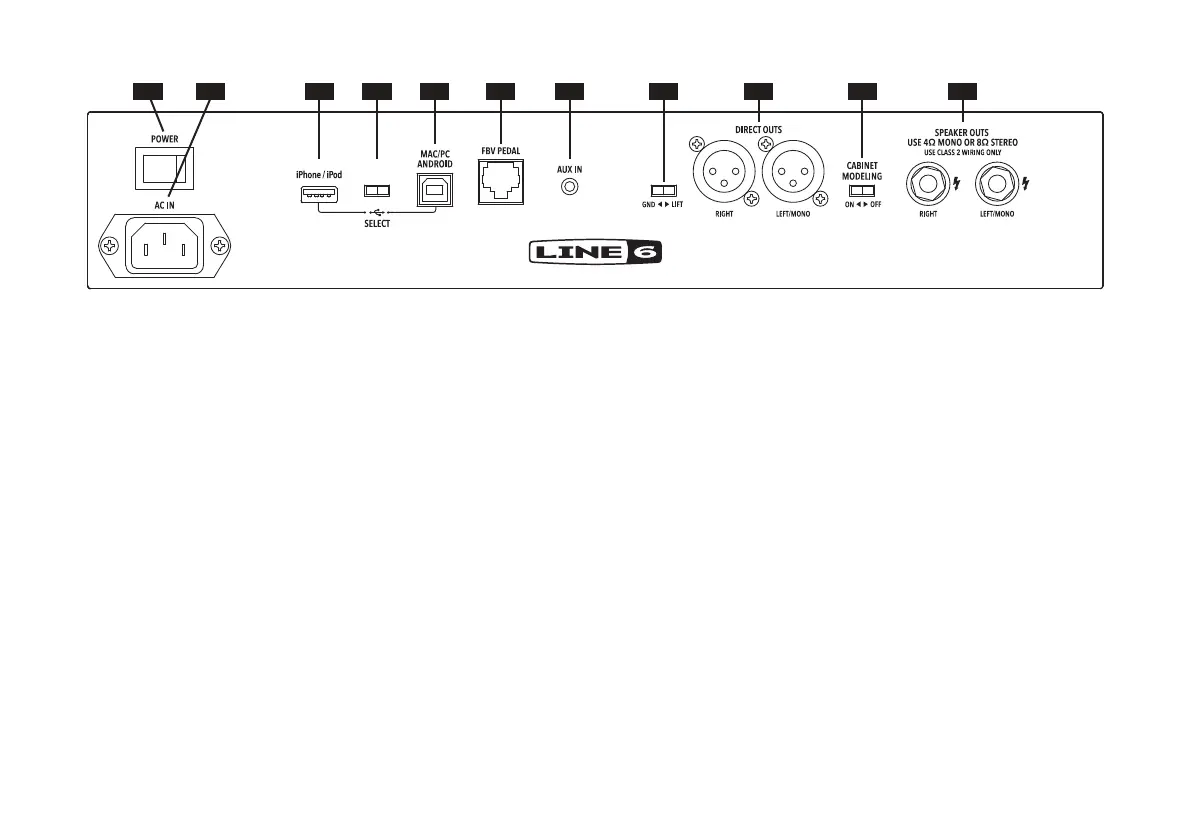

Rear Panel Connections
13 14 15 16 17 18 19 21 22 2320
13. POWER Switch – Turns the amplier on/o.
14. AC IN – The included power cable connects here. See the rear panel
markings for electrical information.
15. iPhone / iPod USB A Port – Connect an iOS device here using a
standard Lightning cable and use the Spider V Remote mobile app
to edit tones, update, and playback & record audio. This port will
power your device. DO NOT connect any non-iOS device to this
port.
16. USB Select Switch – Toggles between the USB-A and USB-B ports.
Only one port may be used at a time.
17. MAC/PC/ANDROID USB B Port – Connect a Mac or PC computer
or Android mobile device (with OTG adapter) to edit tones, update,
playback, and record audio.
18. FBV PEDAL – Connect any supported Line 6 FBV Foot controller
here.
19. AUX IN – Auxiliary audio input for running MP3 players or other audio
sources directly (unprocessed) into the amplier's speakers.
20. GND-LIFT* – Ground lift switch for XLR Direct Outputs.
21. DIRECT OUTS* – Connect XLR cables to route audio to a PA, mixer
or audio interface. The output level is not attenuated by the MASTER
Volume Knob, except when headphones are connected.
Note: When connecting XLR DIRECT OUTS to other equipment
(e.g., mixers, recording interfaces, etc), the Spider V amplier is not
intended to be used with phantom power. If phantom power must be
applied to the Spider V XLR DIRECT OUTS, ensure that the GND-
LIFT switch is switched to “GND” to avoid phantom power appearing
between the GUITAR INPUT’s ground and ground reference of the
source equipment supplying the phantom power.
22. CABINET MODELING – This switch controls whether or not the
cabinet modeling (speaker cabinet and microphone emulation) and
full-range system is active for the external speakers.
23. SPEAKER OUTS – Connect your external speaker(s) here. Your
speaker cabinet(s) should support at least 100 watts @ 4 Ohms, or
50 watts @ 8 Ohms minimum. SPIDER V 240HC will function without
an external cabinet connected. In this mode, the built-in 2-way
stereo speaker system will reproduce full-range stereo audio. Once
an external cabinet is connected, the built-in speakers automatically
re-congure to reproduce high frequencies only, while the external
cabinet will provide low and midrange frequencies.
*Available only on Spider V 120, 240, and 240HC.

Line 6 SPIDER V Series Specifications

General

Effects	Yes
Number of Effects	100+
USB Audio Interface	Yes
Headphone Output	Yes
Aux Input	Yes
Built-in Tuner	Yes
Amplifier Type	Modeling
Presets	128
Connectivity	USB
Looper	Yes
Wireless Ready	Yes
Compatible Foot Controller	FBV 3
Inputs	1/4" Instrument, Aux In
Outputs	1 x 1/4" (headphones), 1 x 1/4" (line out)
Weight	Varies by model
Dimensions	Varies by model
Power Output	20W, 30W, 60W, 120W (depending on model)
Speaker Configuration	1x12" (depending on model)
Speaker Size	12" (depending on model)
